Corvette V8-7.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>

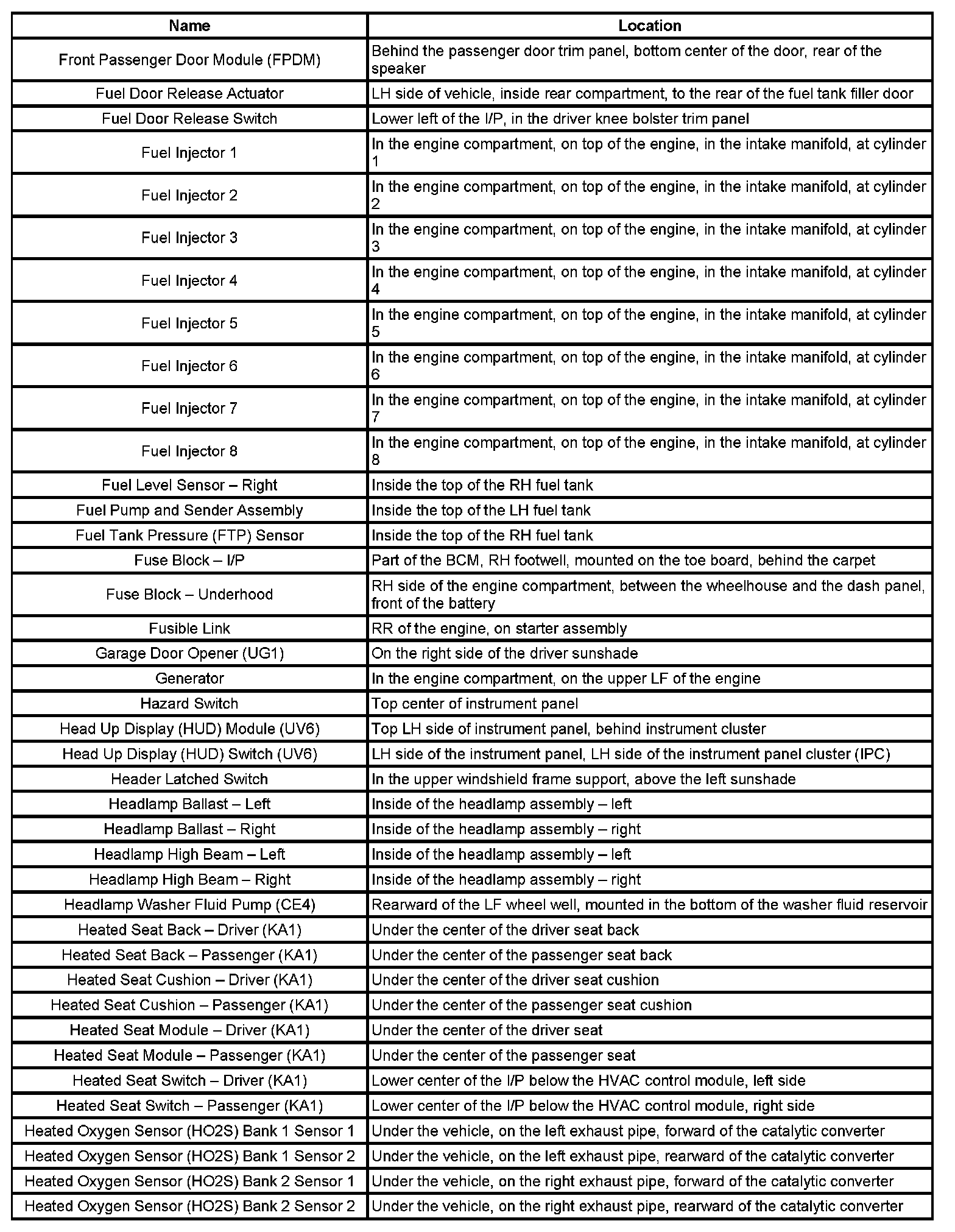

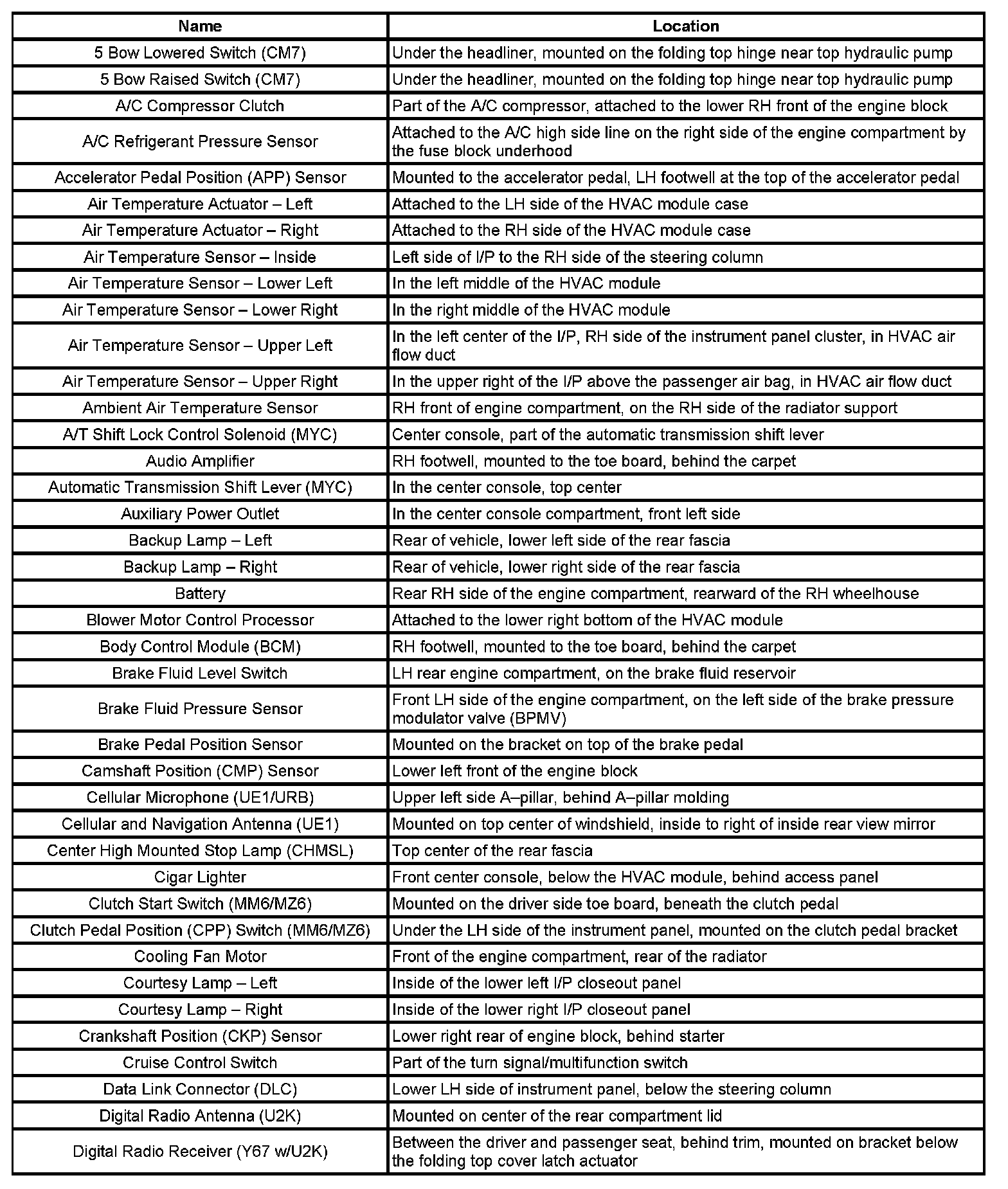

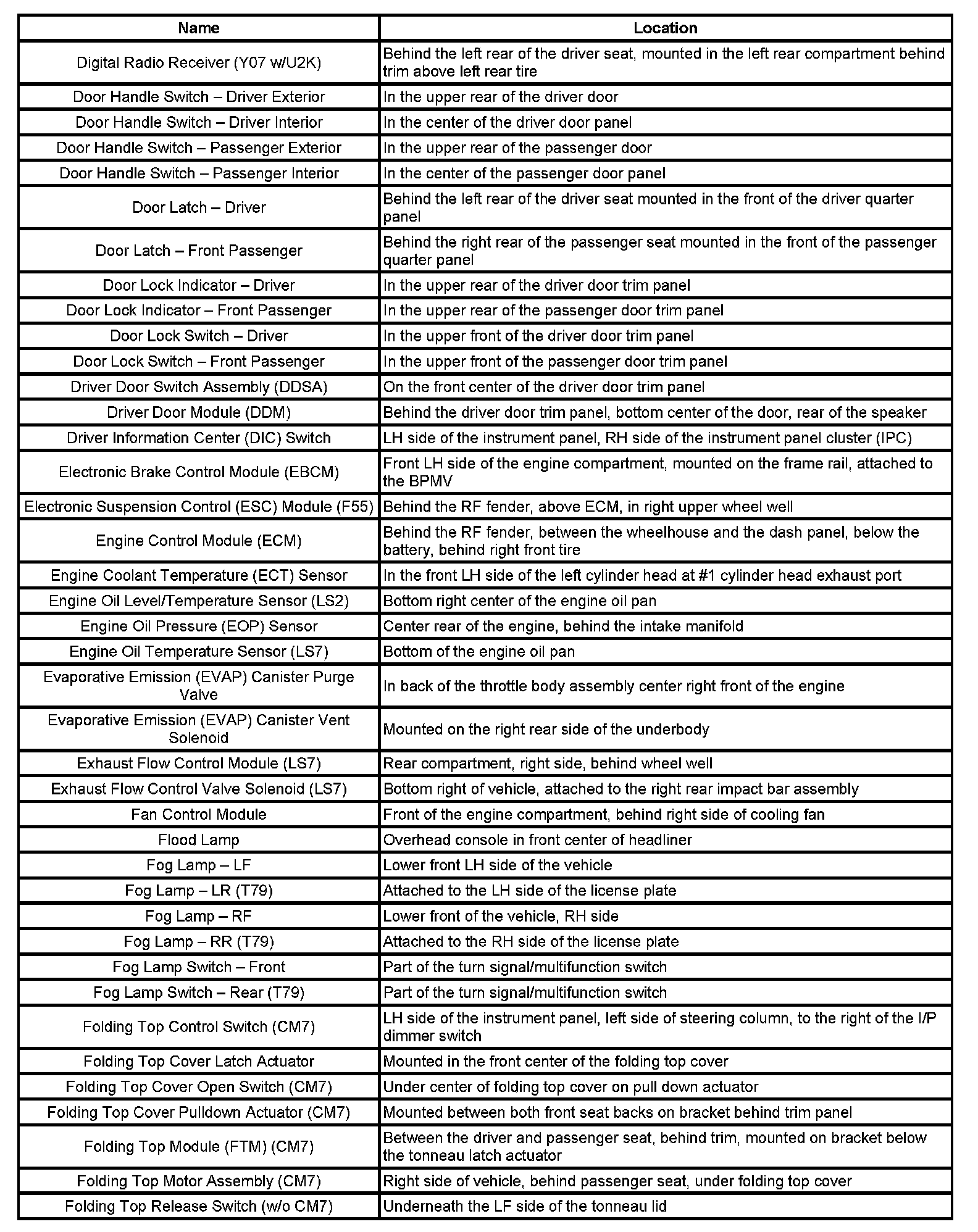

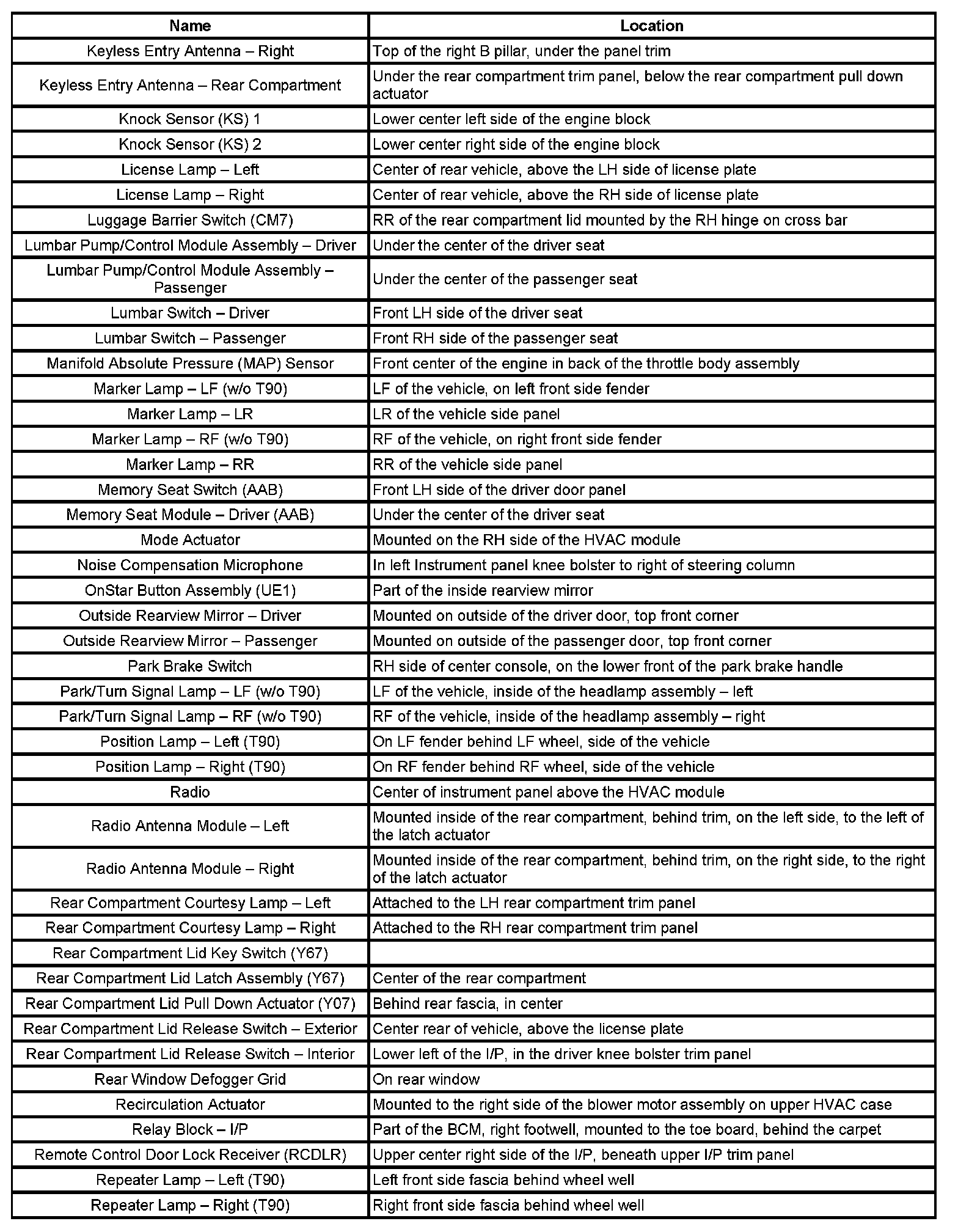

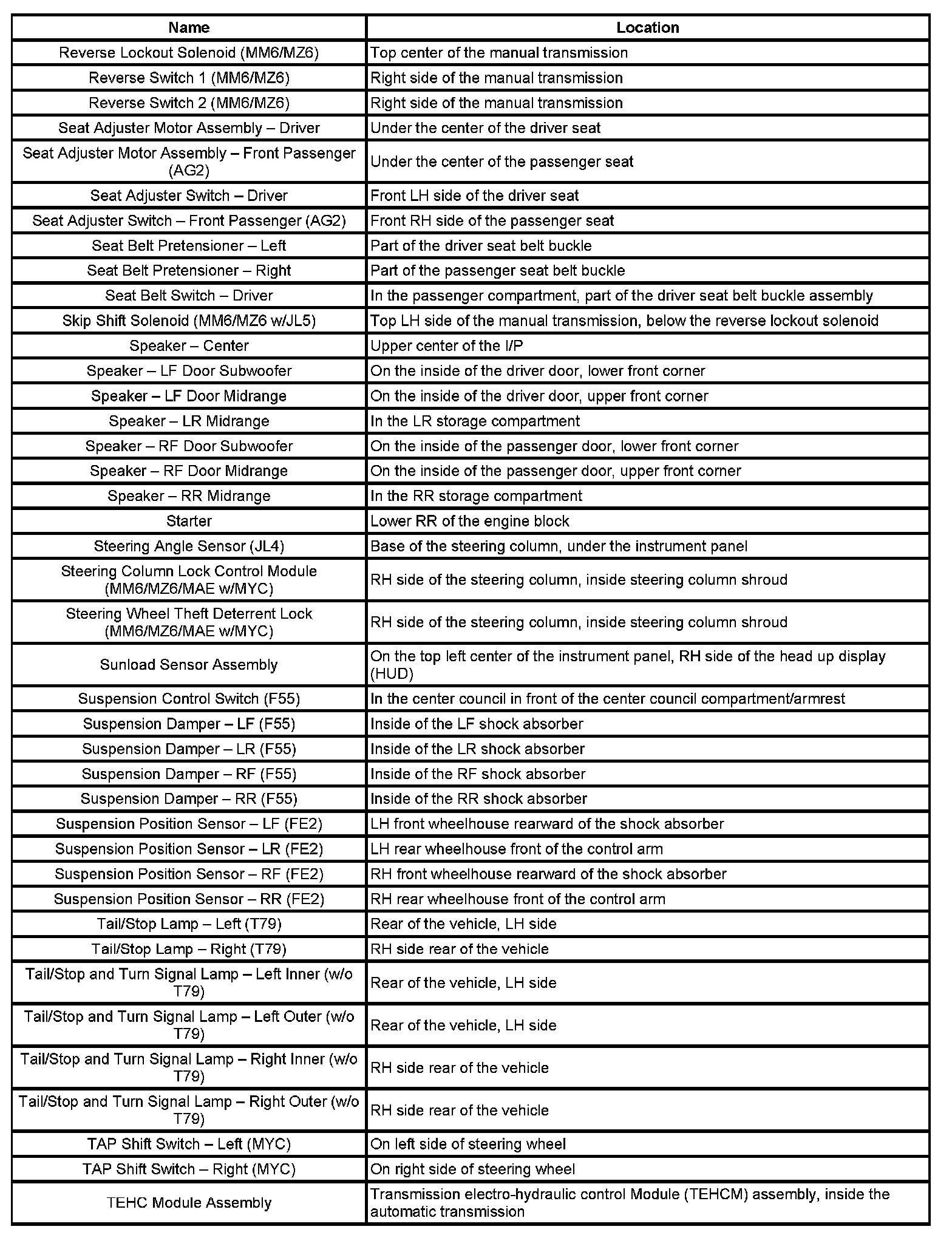

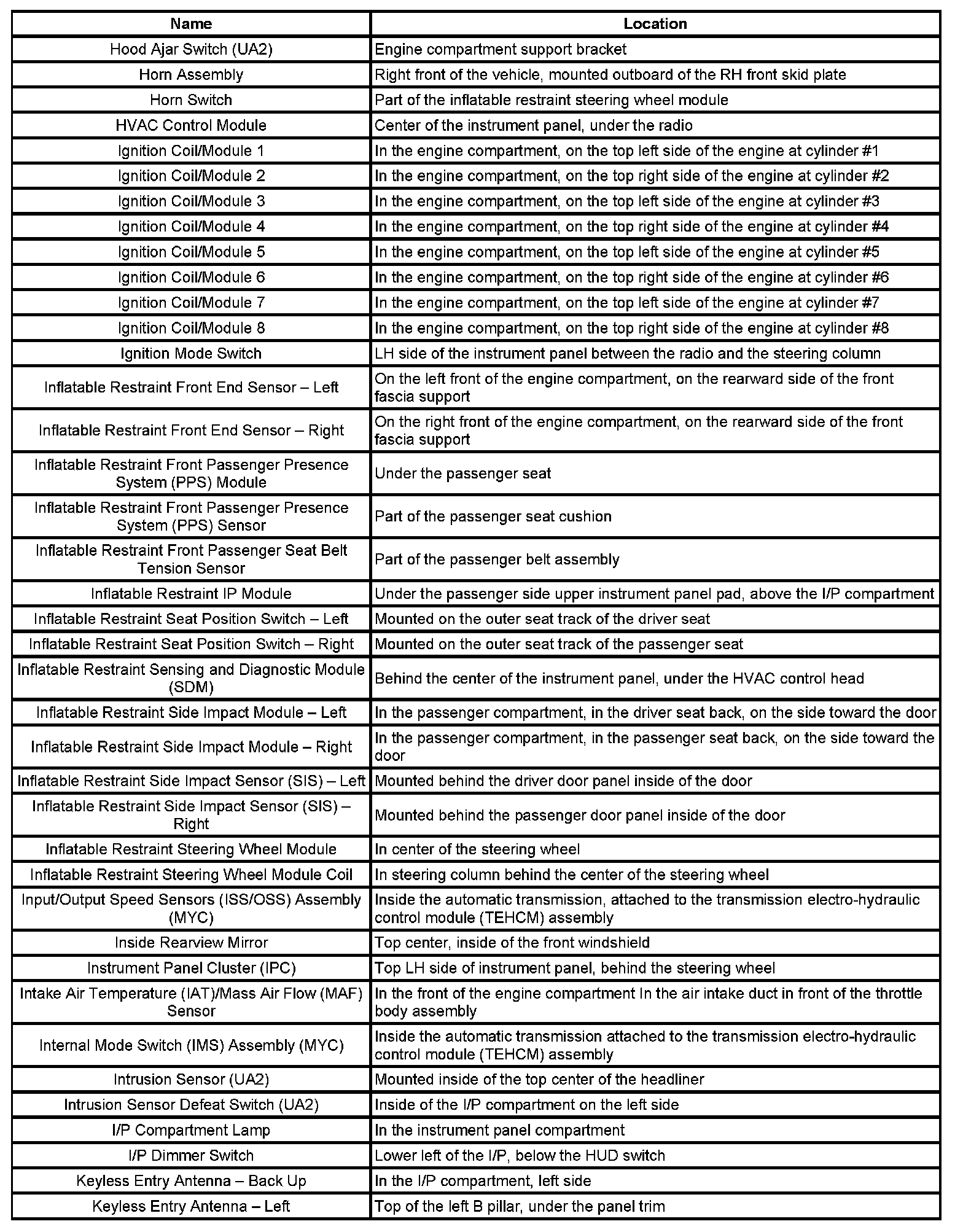

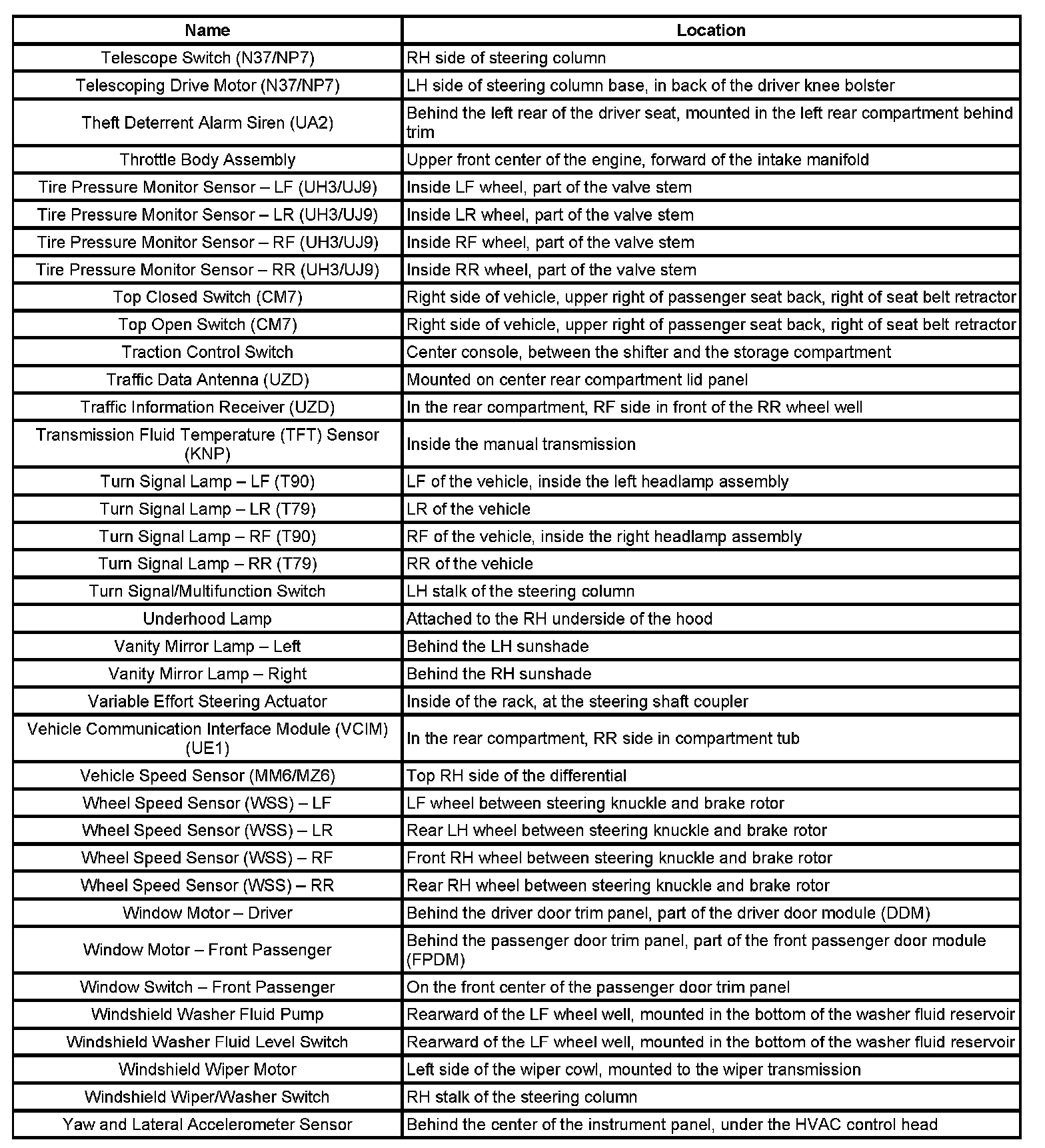

Components
Components
5 Bo - Di:
Di - Fo:
Fr - He:
Ho - Ke:
Ke - Re:
Re - TE:
Te - Ya:
