Convertible Top
>>
Convertible Top Control Module
Convertible Top Control Module
Folding Top Module (FTM) C1 (With RPO Code CM7):

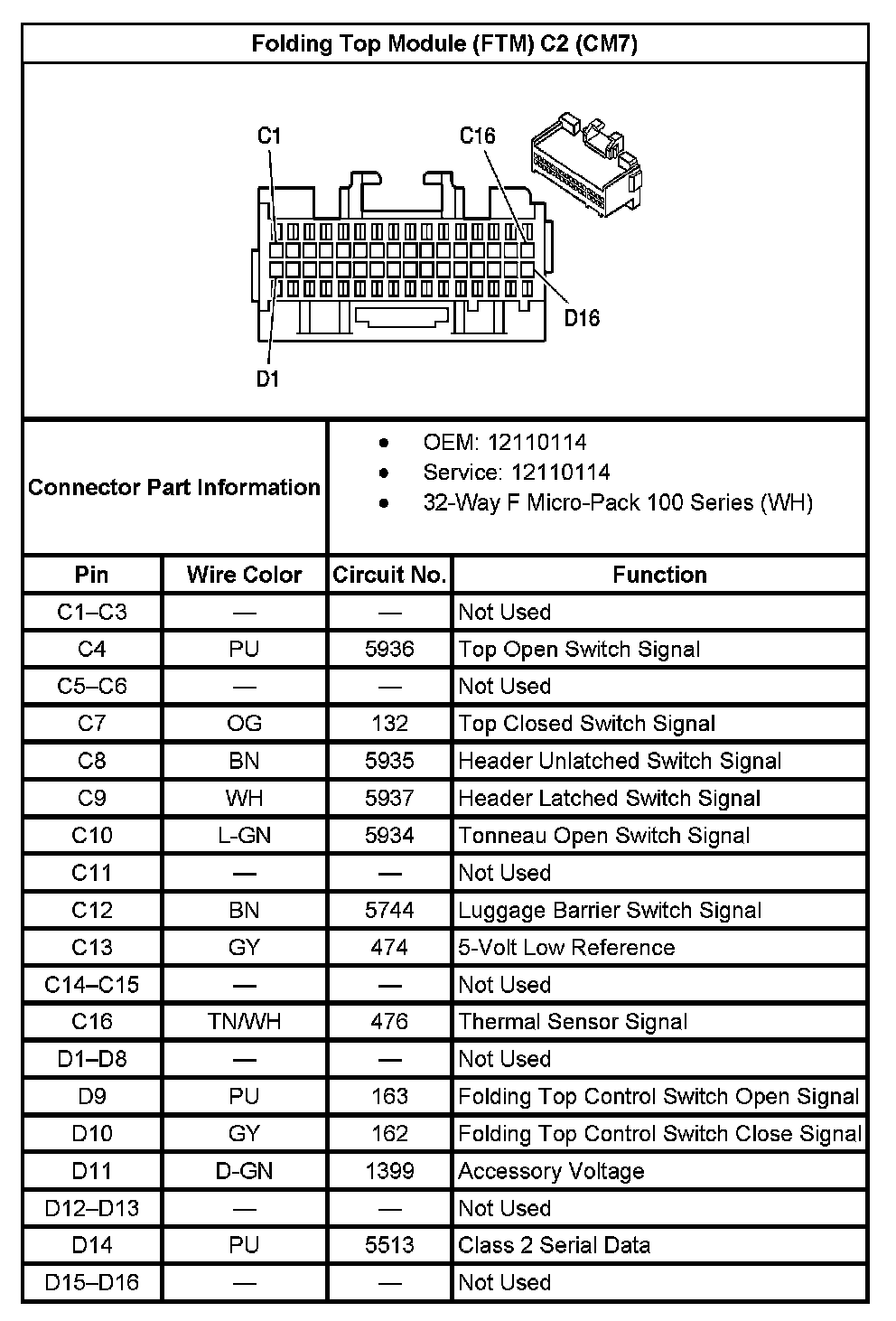

Folding Top Module (FTM) C2 (With RPO Code CM7):
Folding Top Module (FTM) C3 (With RPO Code CM7):
