Transmission Control Systems

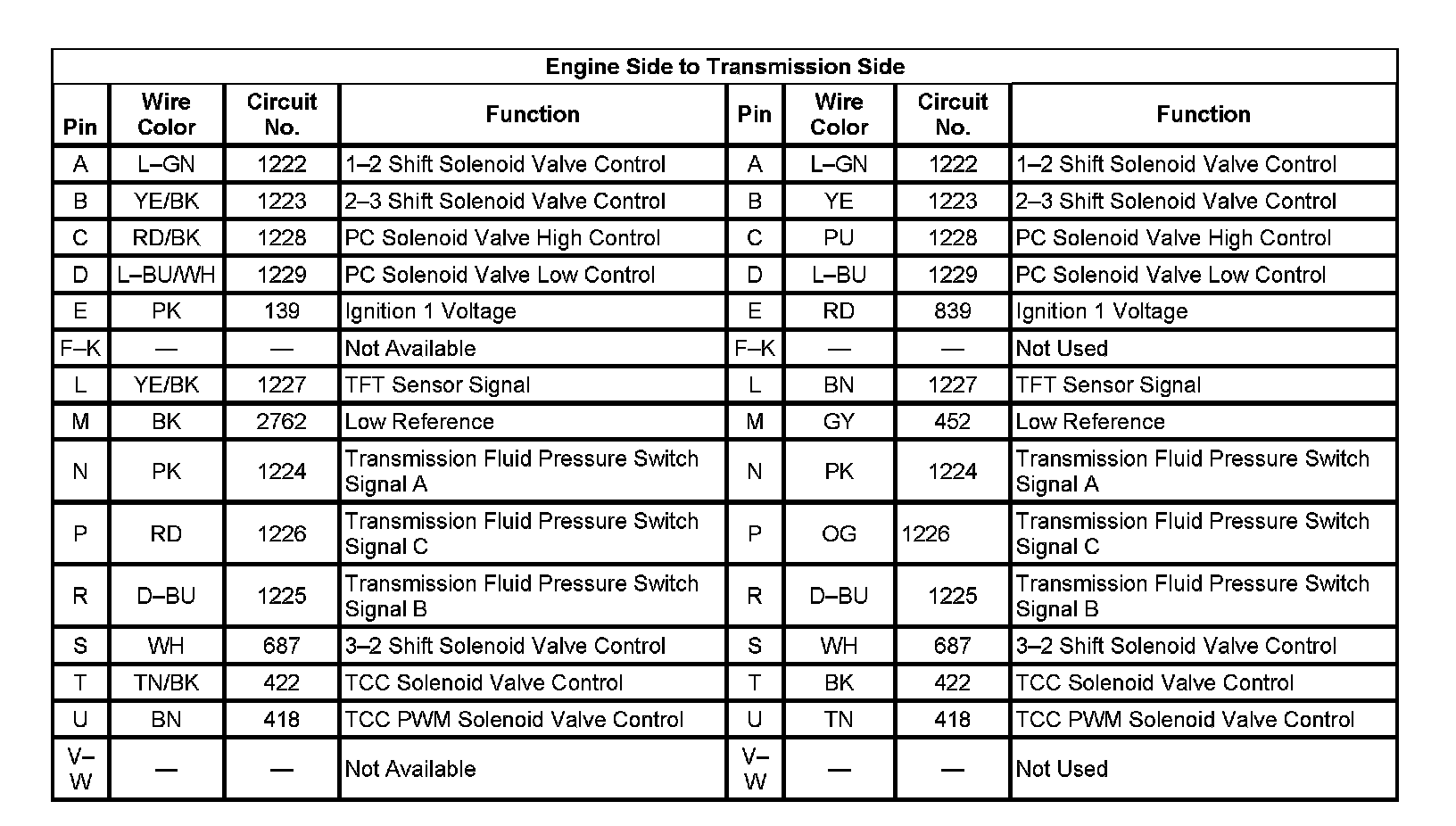

Engine Side to Transmission Side

Engine Side to Transmission Side:

Engine Side to Transmission Side:
