Intake Manifold

Throttle Body Bolt 10 Nm (89 inch lbs.)
Throttle Body Nut 10 Nm (89 inch lbs.)
Throttle Body Stud 6 Nm (53 inch lbs.)
Intake Manifold to Cylinder Head Stud 6 Nm (53 inch lbs.)

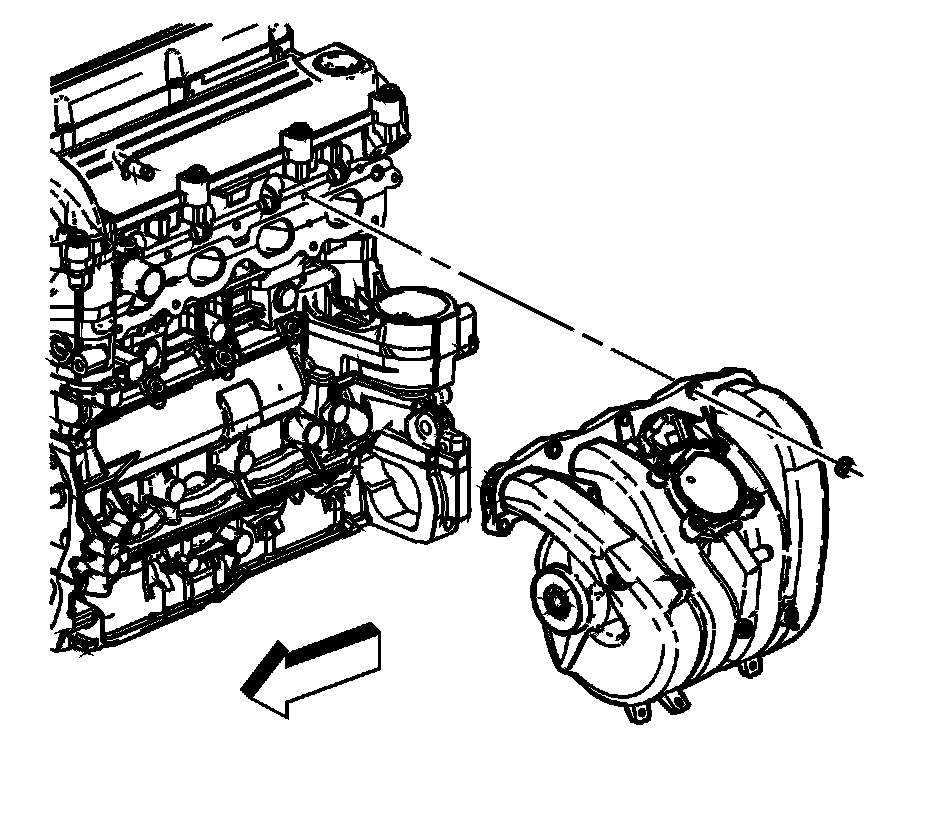

Install the intake manifold bolts and nuts. Follow the tightening sequence.
Tighten the bolts and nuts to 10 Nm (89 inch lbs.)
