Home >> Chevrolet >> 2006 >> Cobalt L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Components

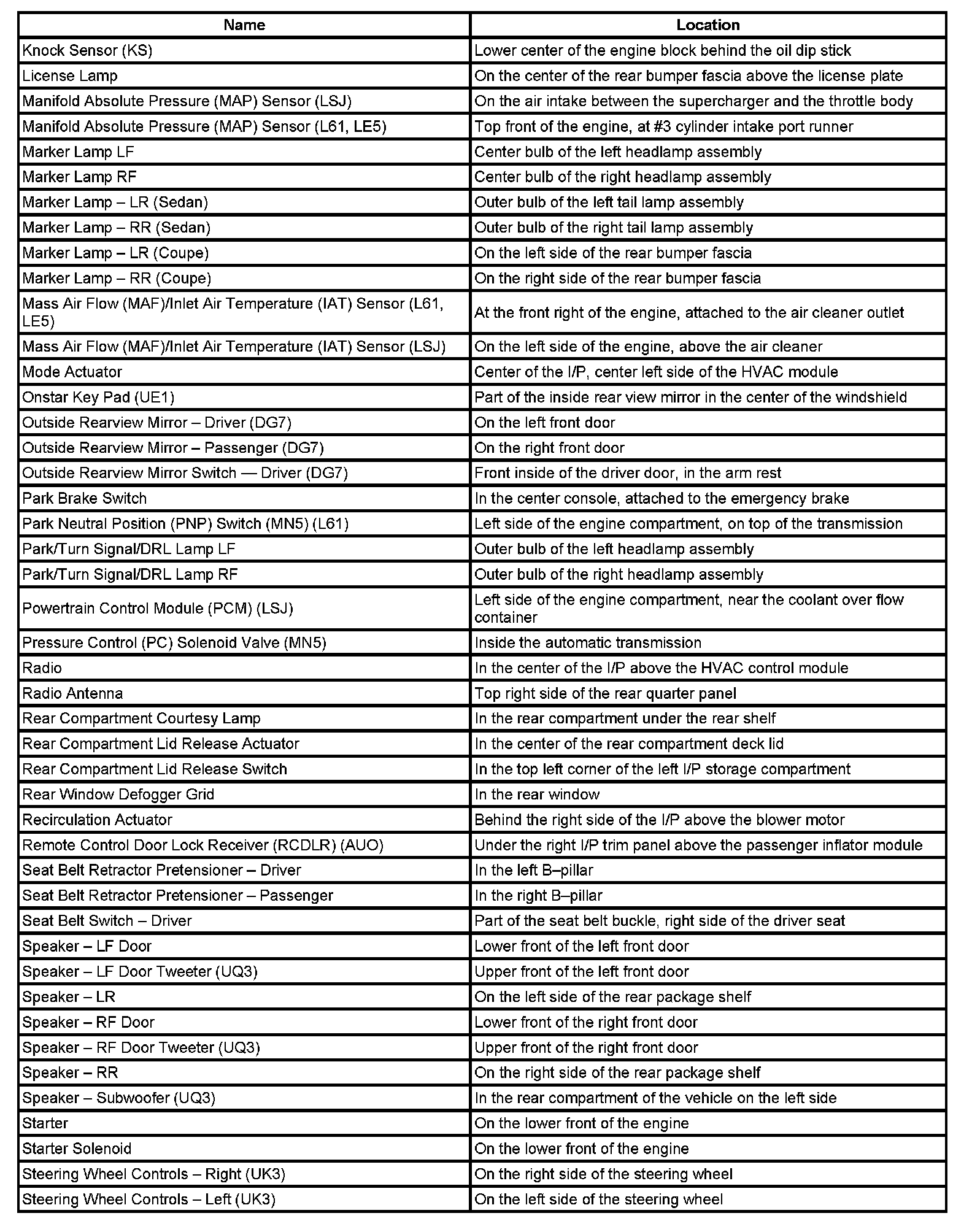

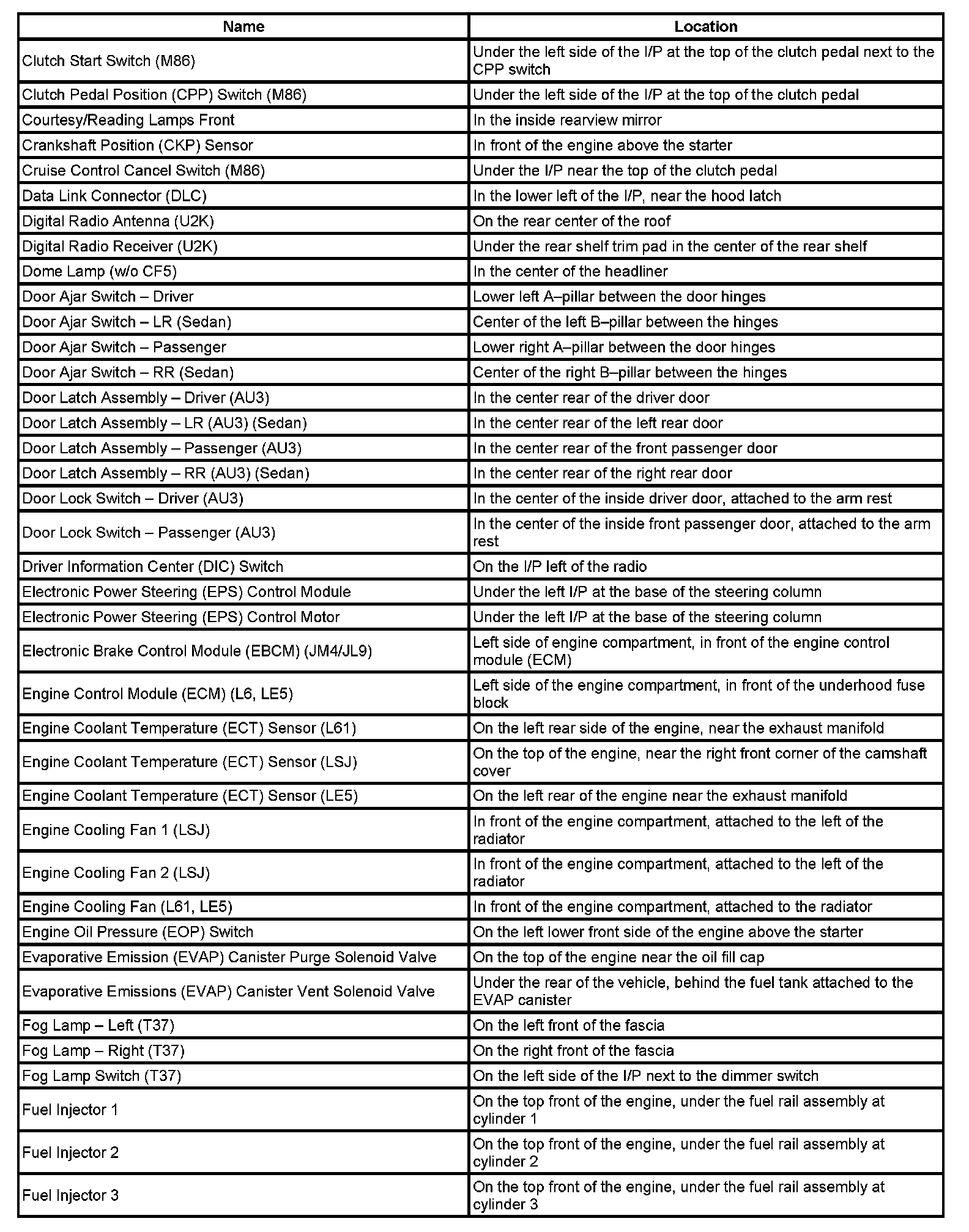

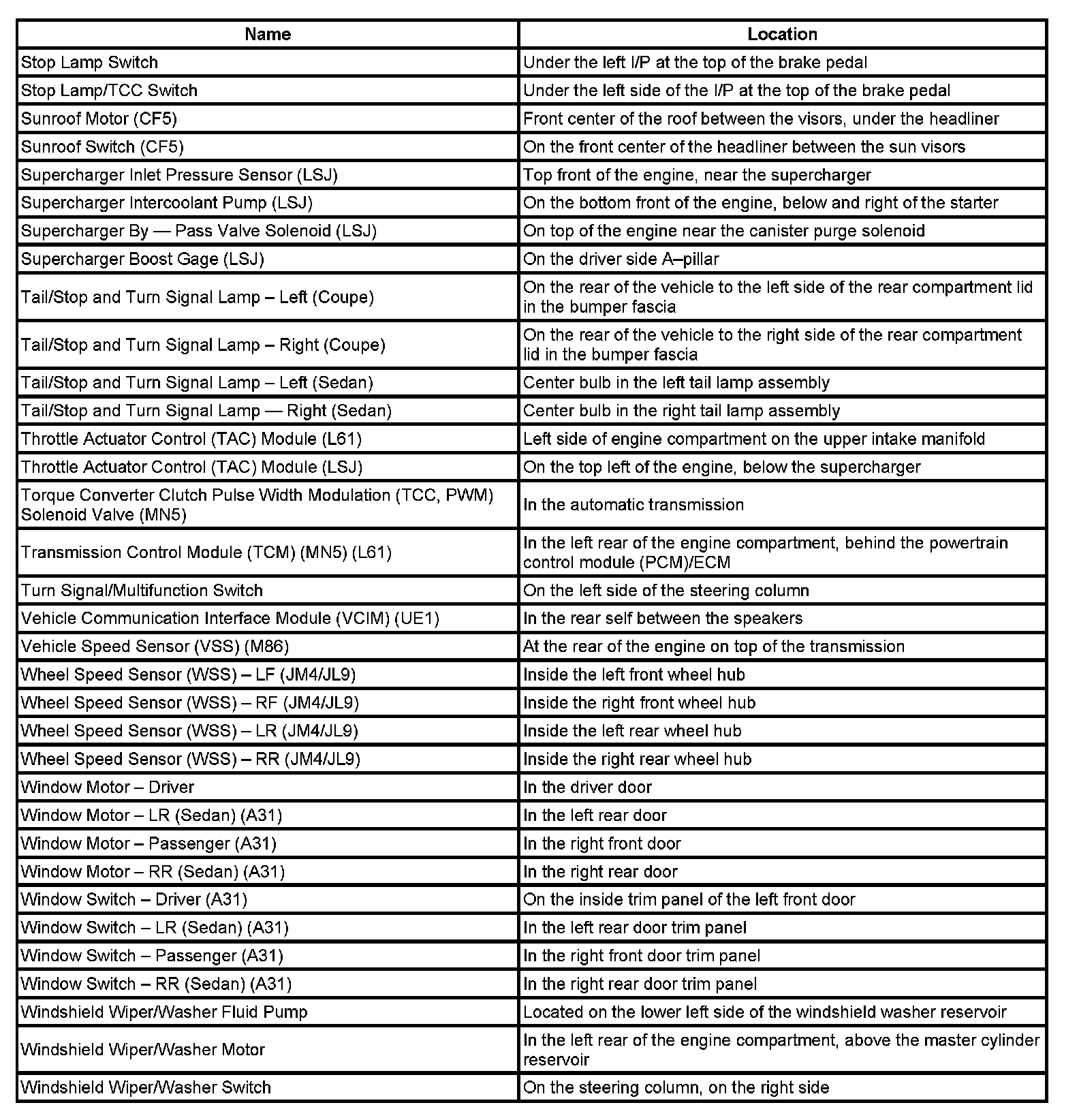

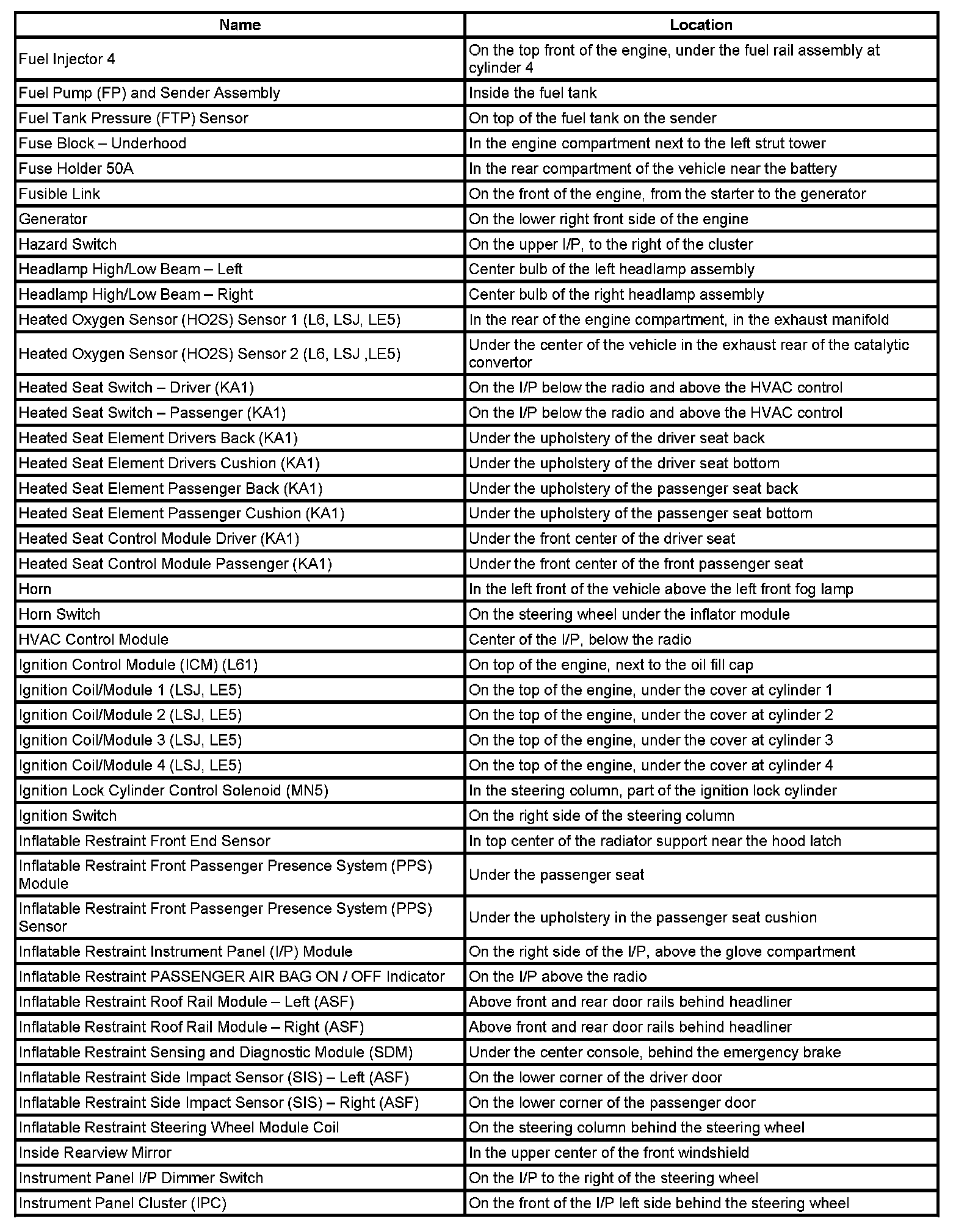

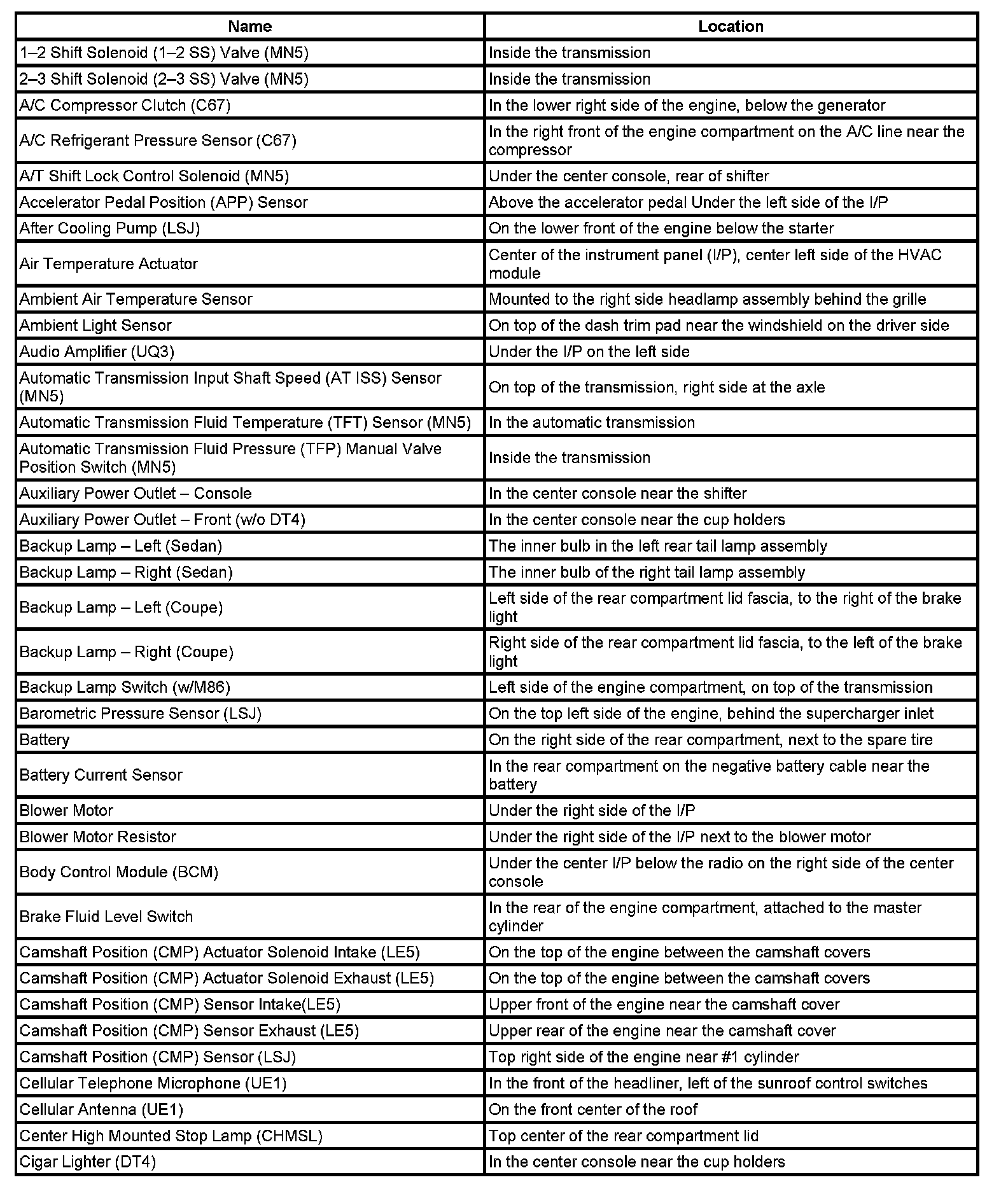

Components

1-2 Sh - Ci:

Cl - Fu:

Fu - In:

Kn - St:

St - Wi:
