Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Barometric Pressure Sensor >> Locations

Barometric Pressure Sensor: Locations

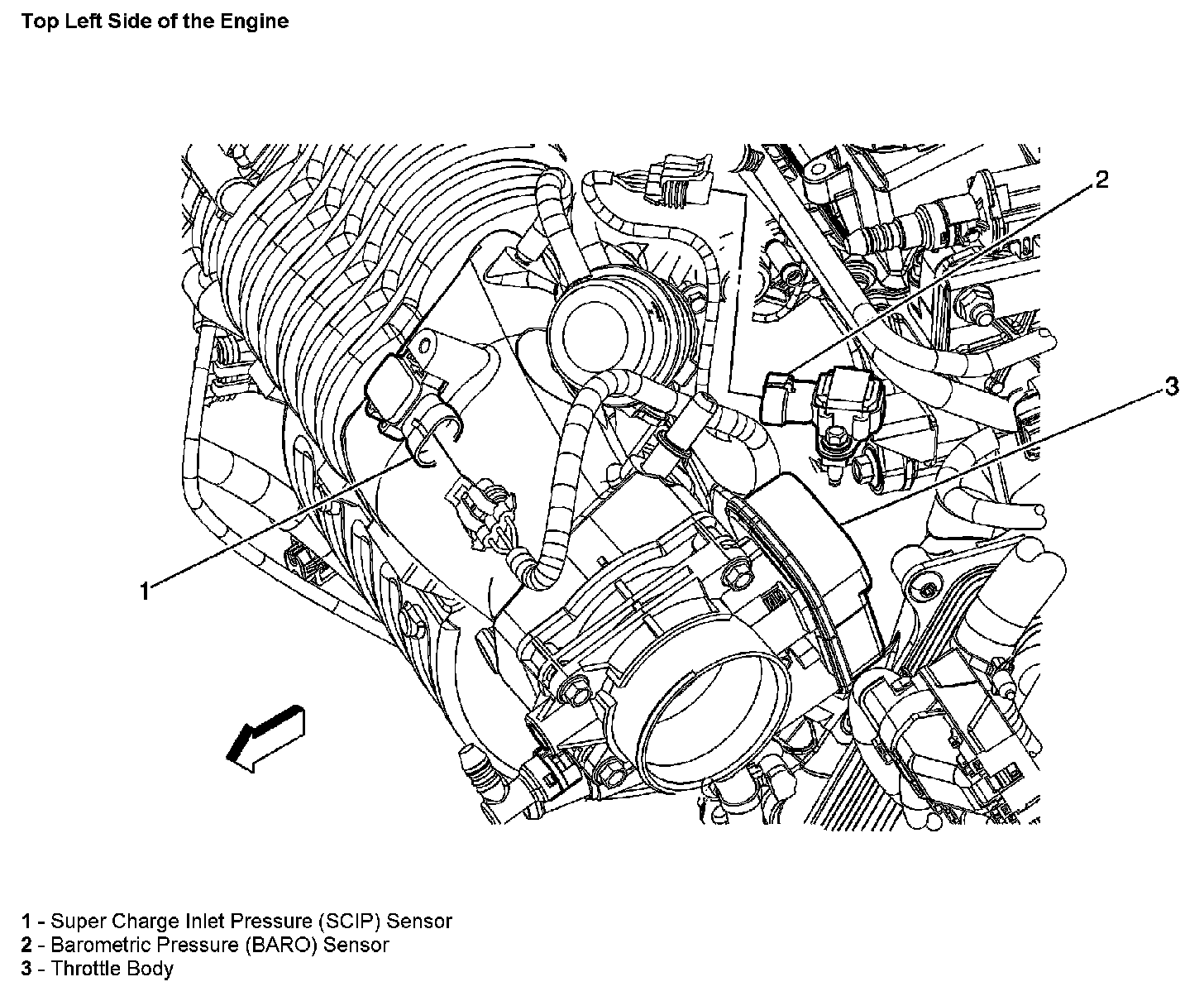

Top Left Side Of The Engine:

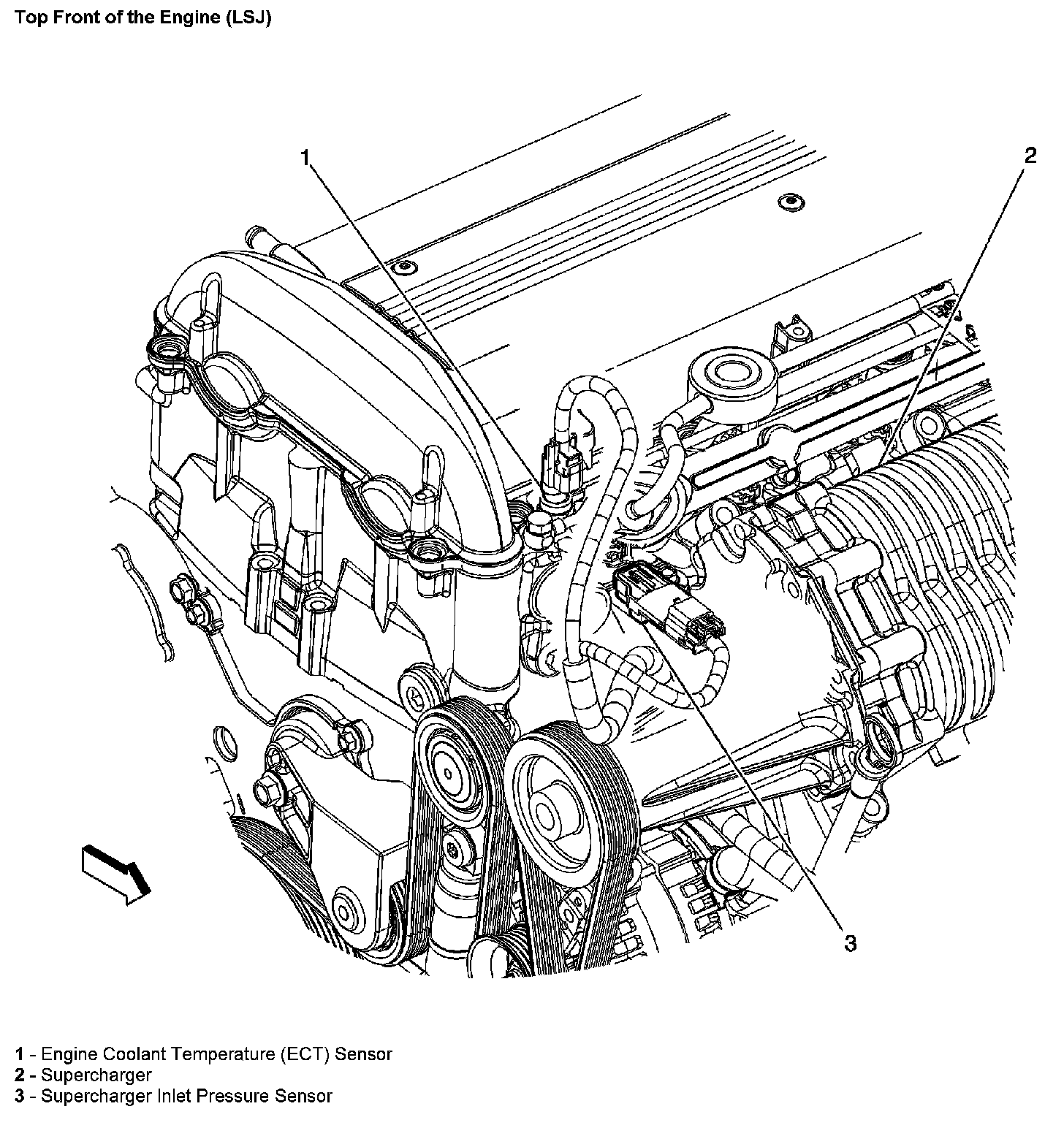

Top Front Of The Engine:



Engine Intake Components:
