Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Classification Module - Air Bag

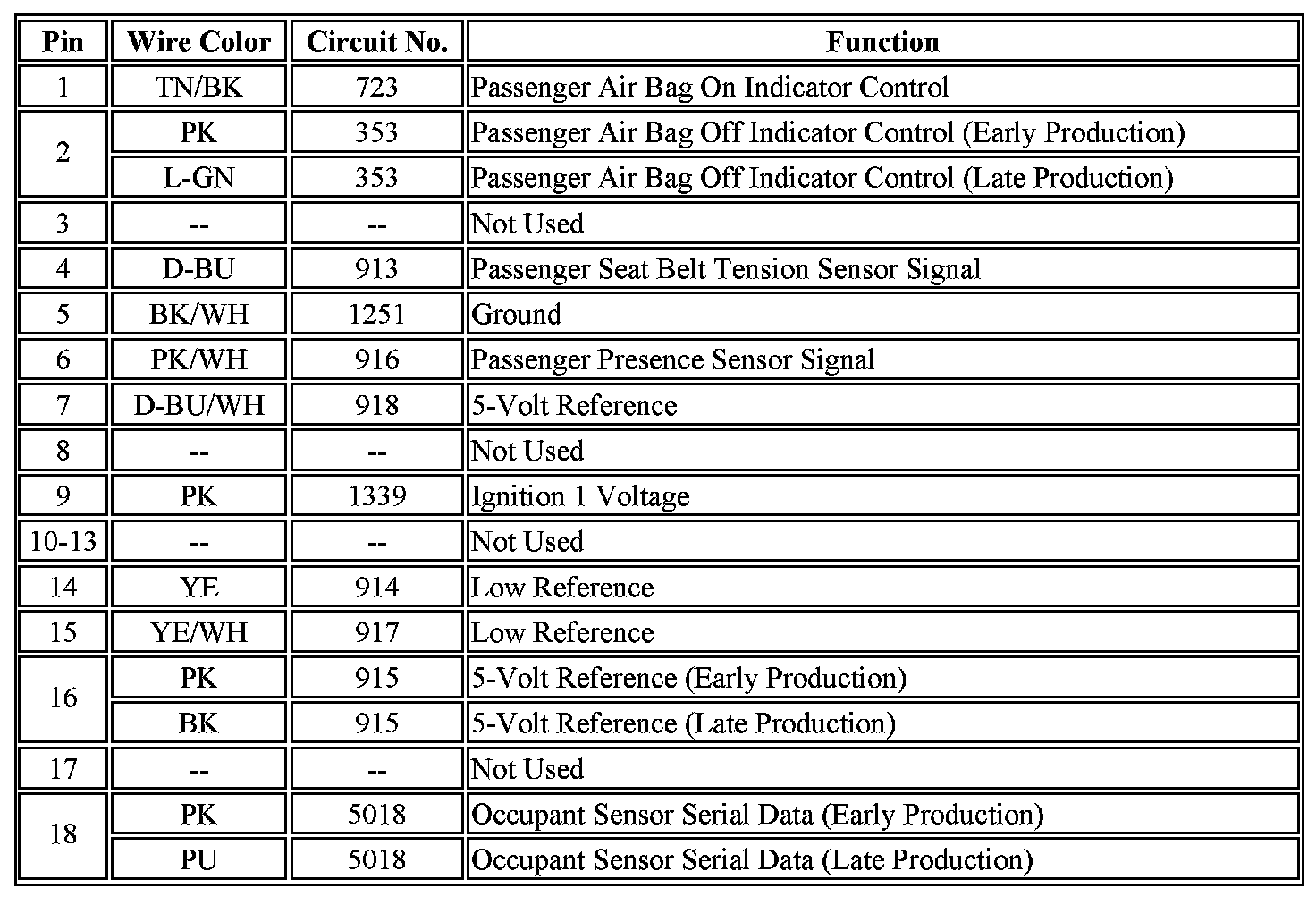

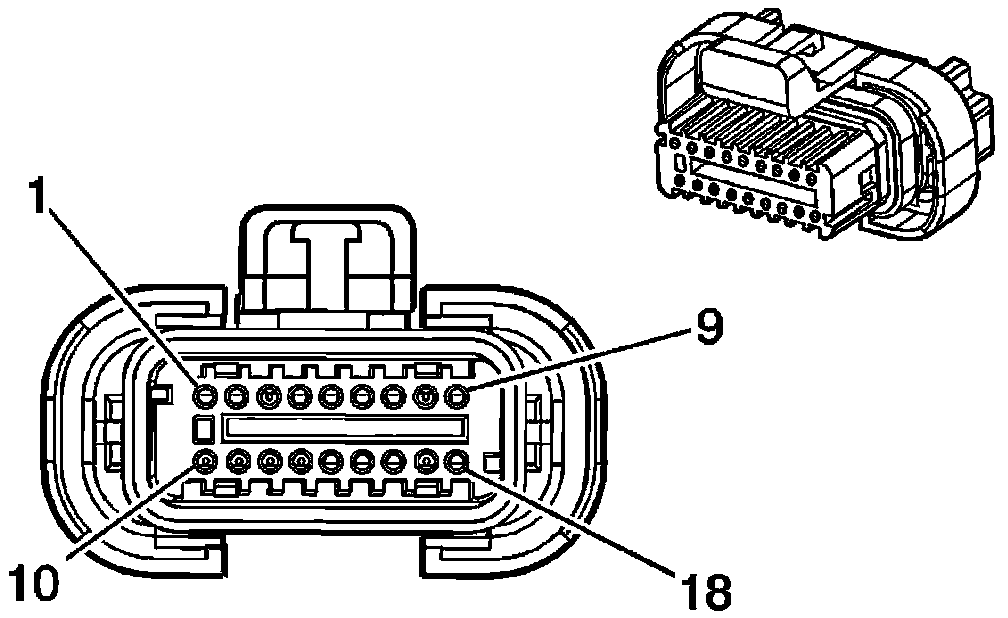

Seat Occupant Classification Module - Air Bag
