HVAC Control Module - Auxiliary Connector

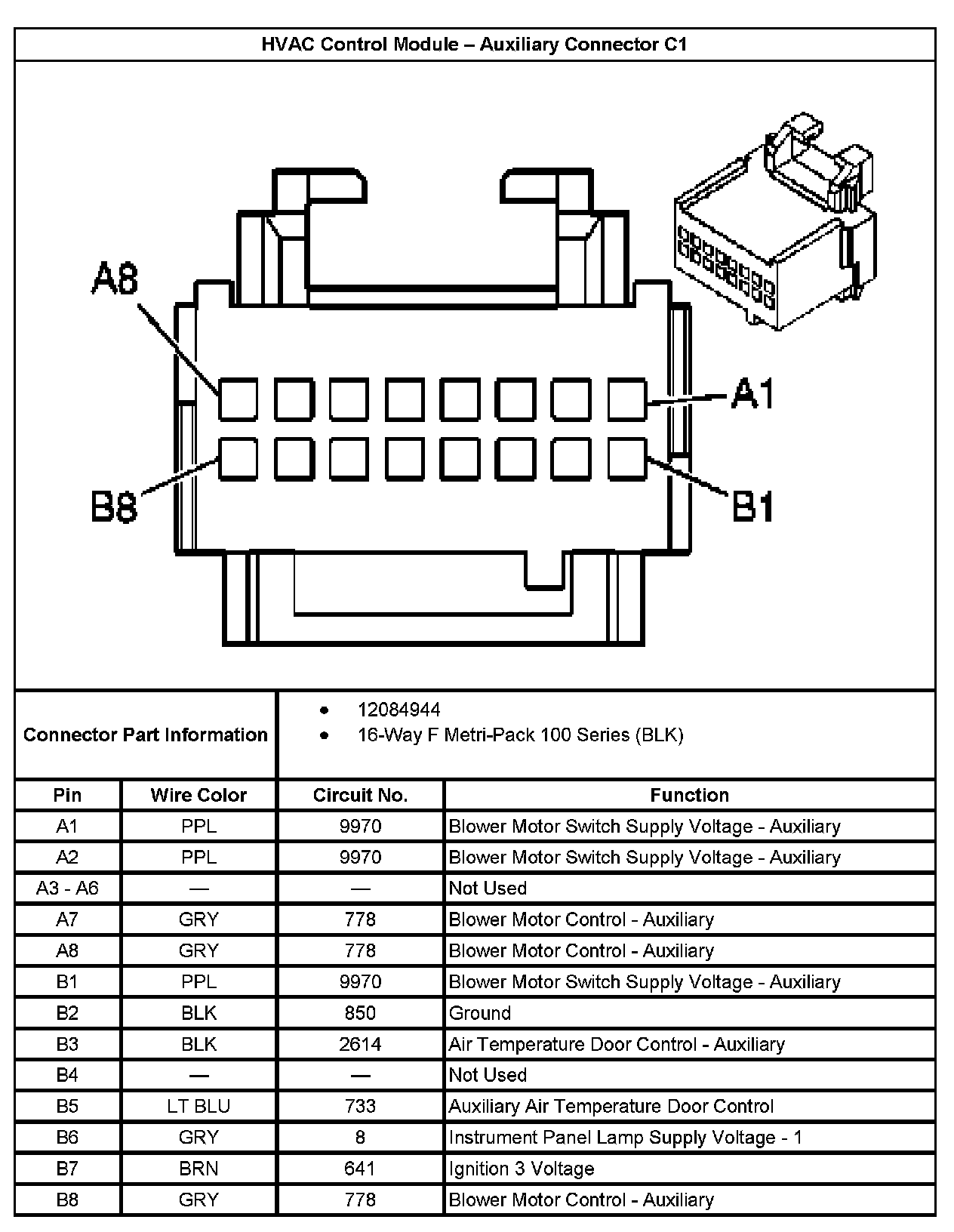

HVAC Control Module - Auxiliary Connector C1:



HVAC Control Module - Auxiliary Connector C2:
