Home
>>
Chevrolet
>>
2005
>>
Uplander AWD V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

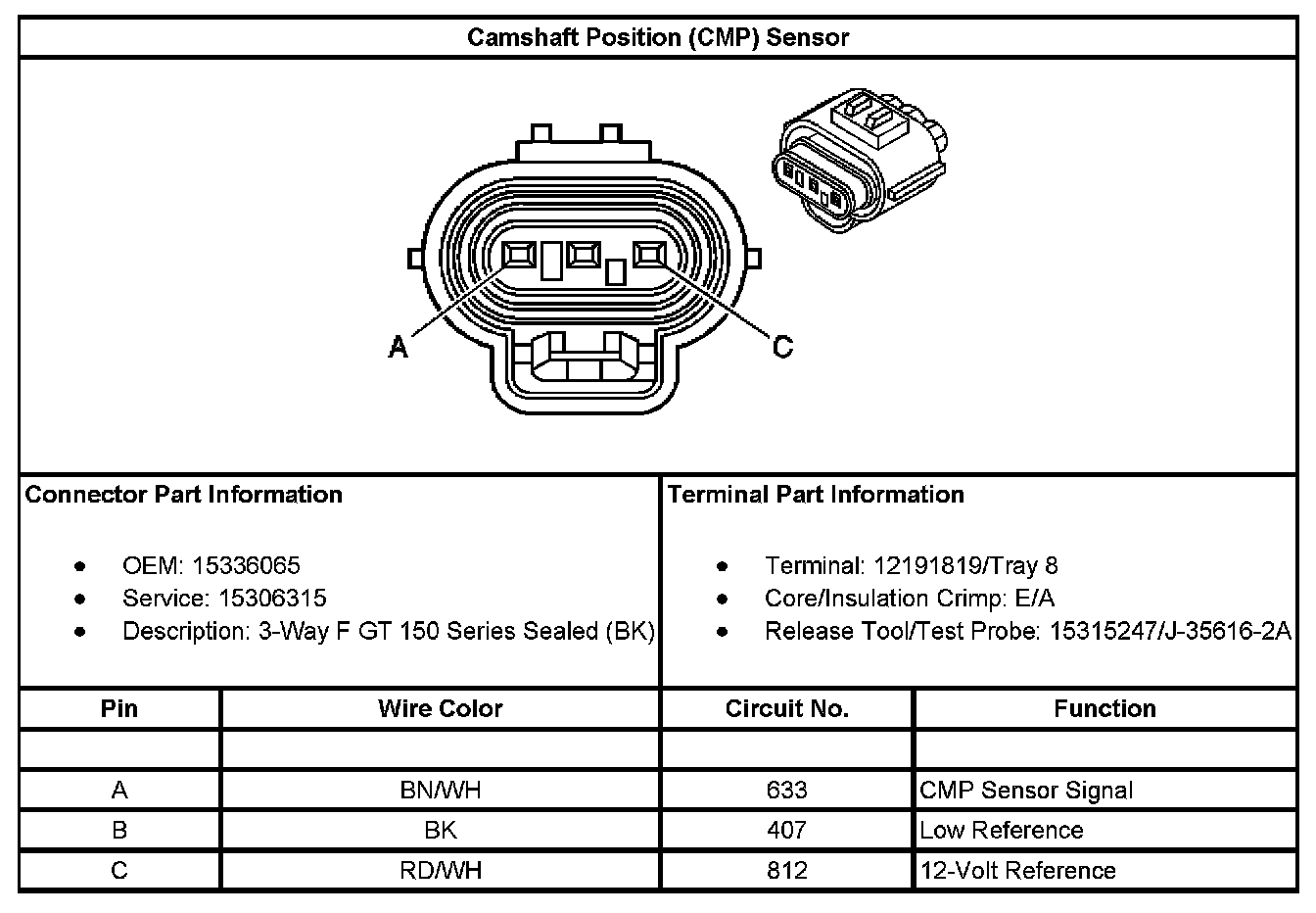

Camshaft Position (CMP) Sensor:
