Home >> Chevrolet >> 2005 >> Uplander AWD V6-3.5L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

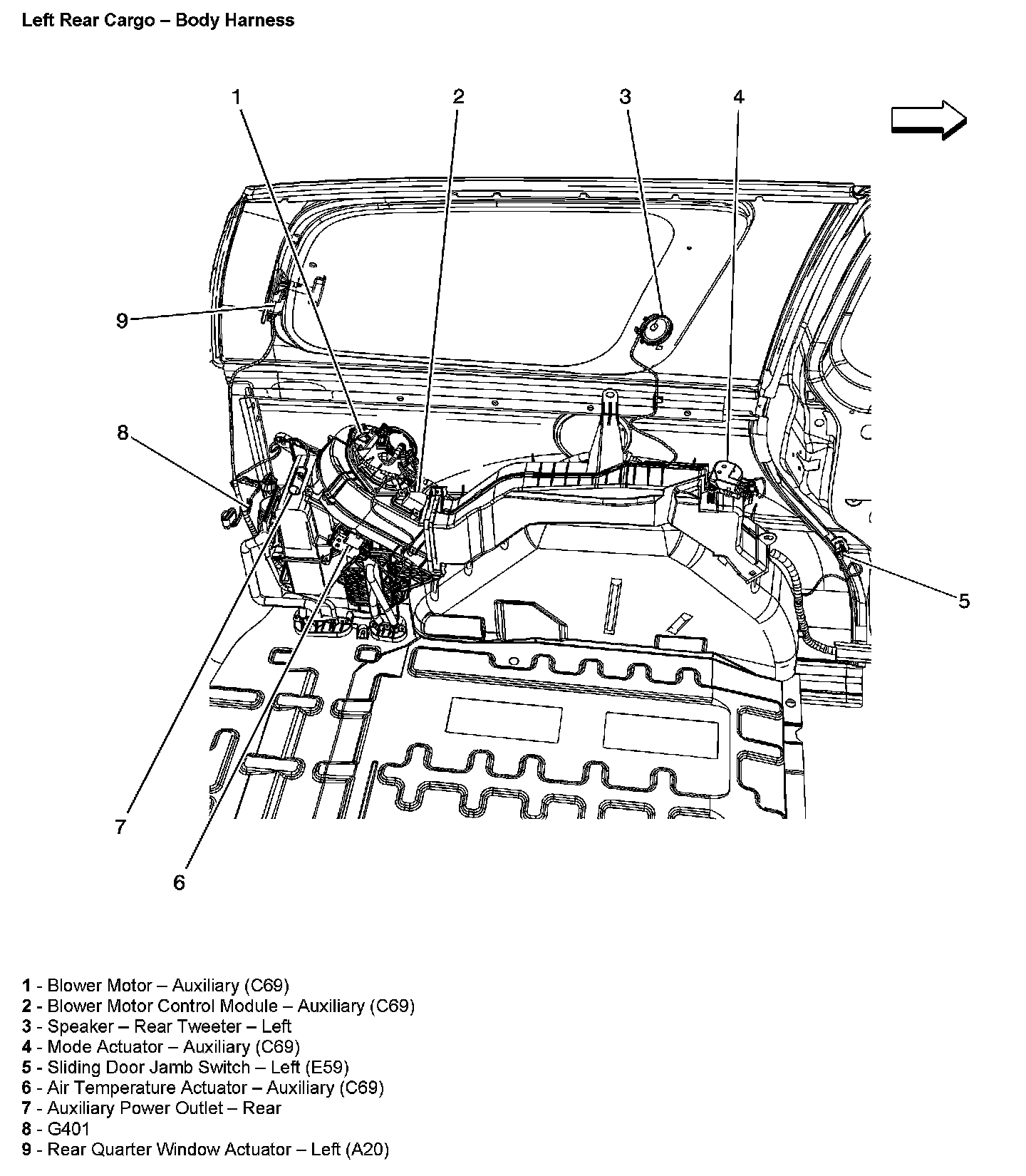

Left Rear Cargo - Body Harness:
