Front Passenger Presence System (PPS) Module

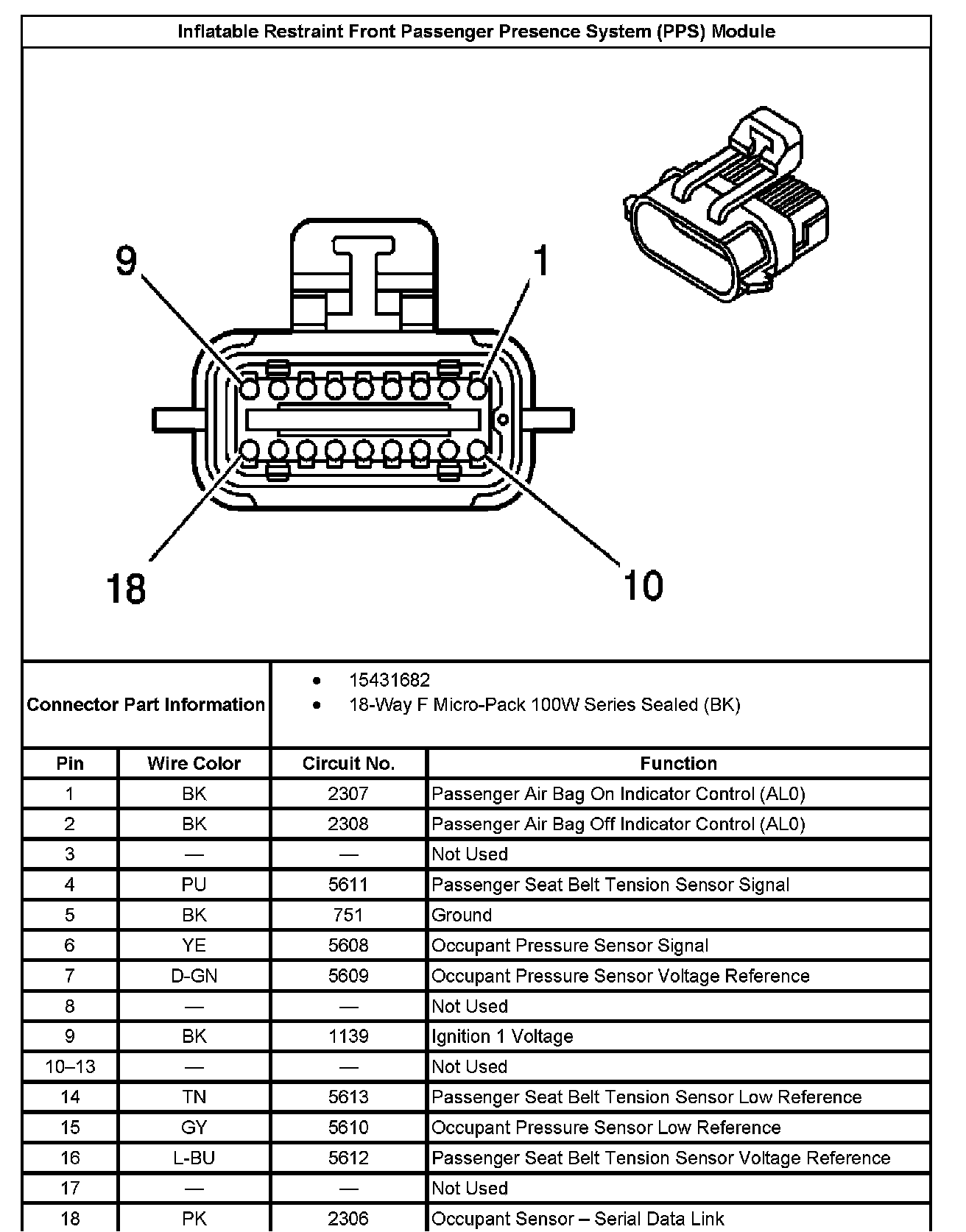

Inflatable Restraint Front Passenger Presence System (PPS) Module:
