Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

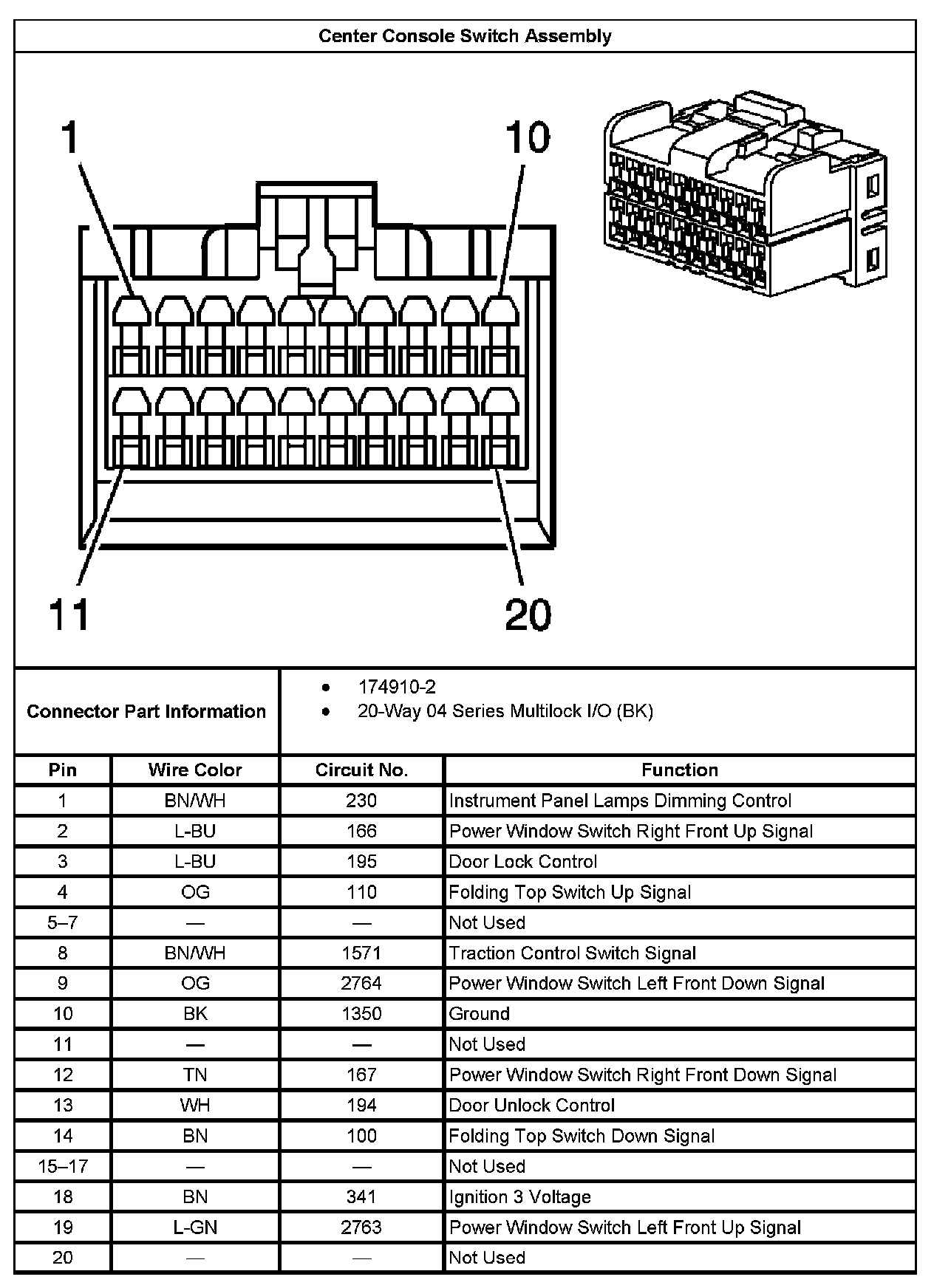

Center Console Switch Assembly:
