Coolant Temperature Sensor/Switch (For Computer): Locations

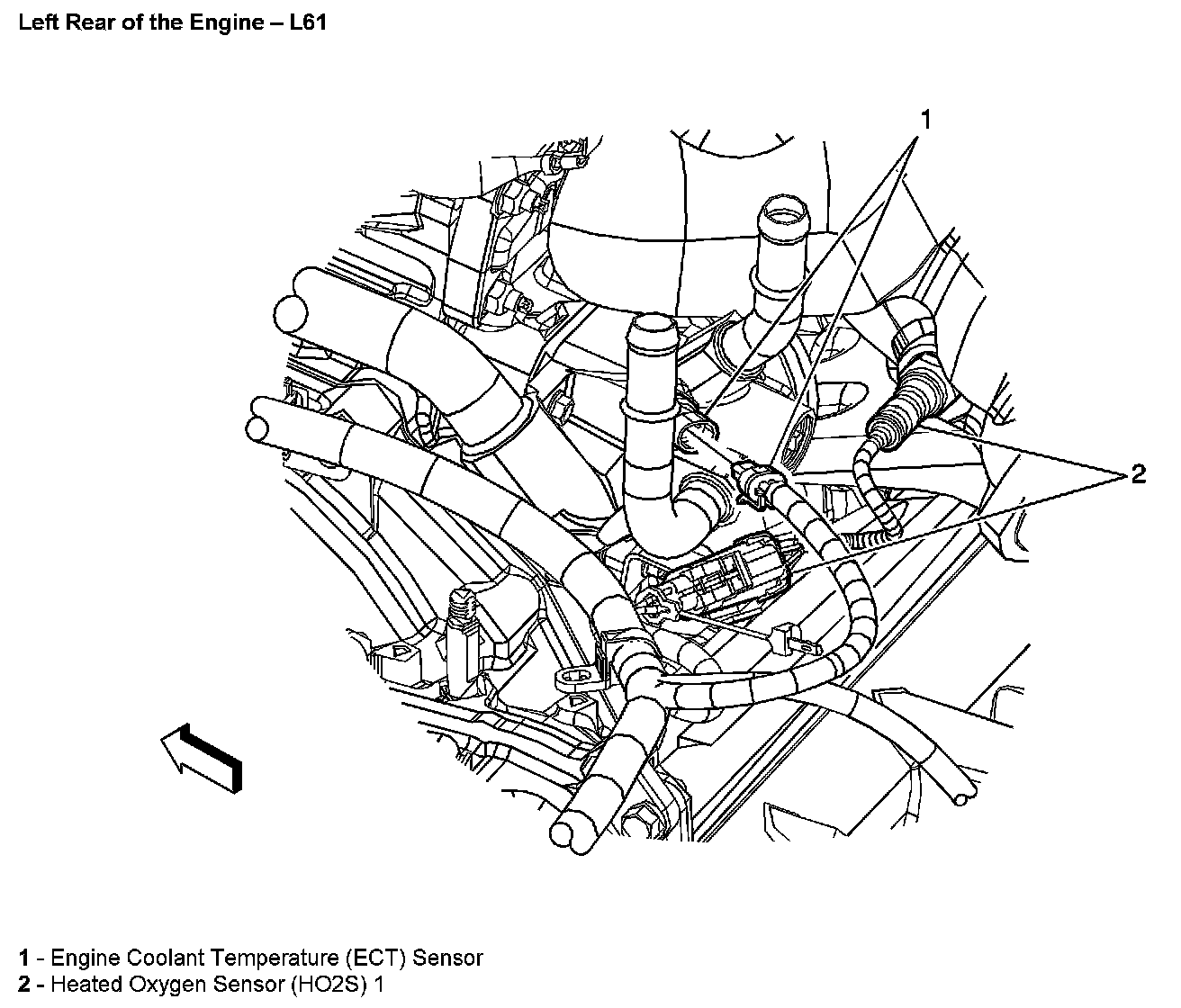

Left Rear of the Engine:

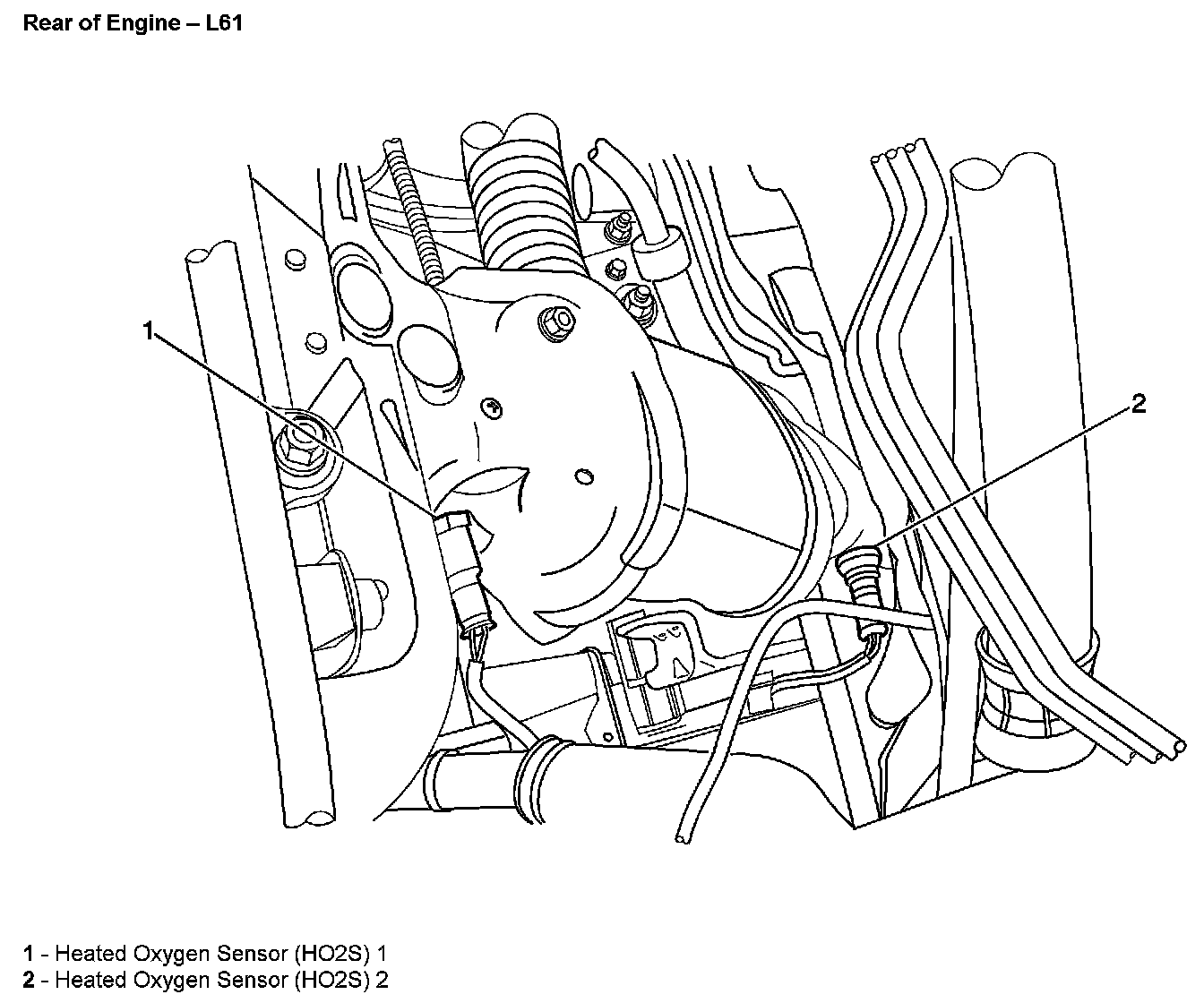

Rear of Engine:

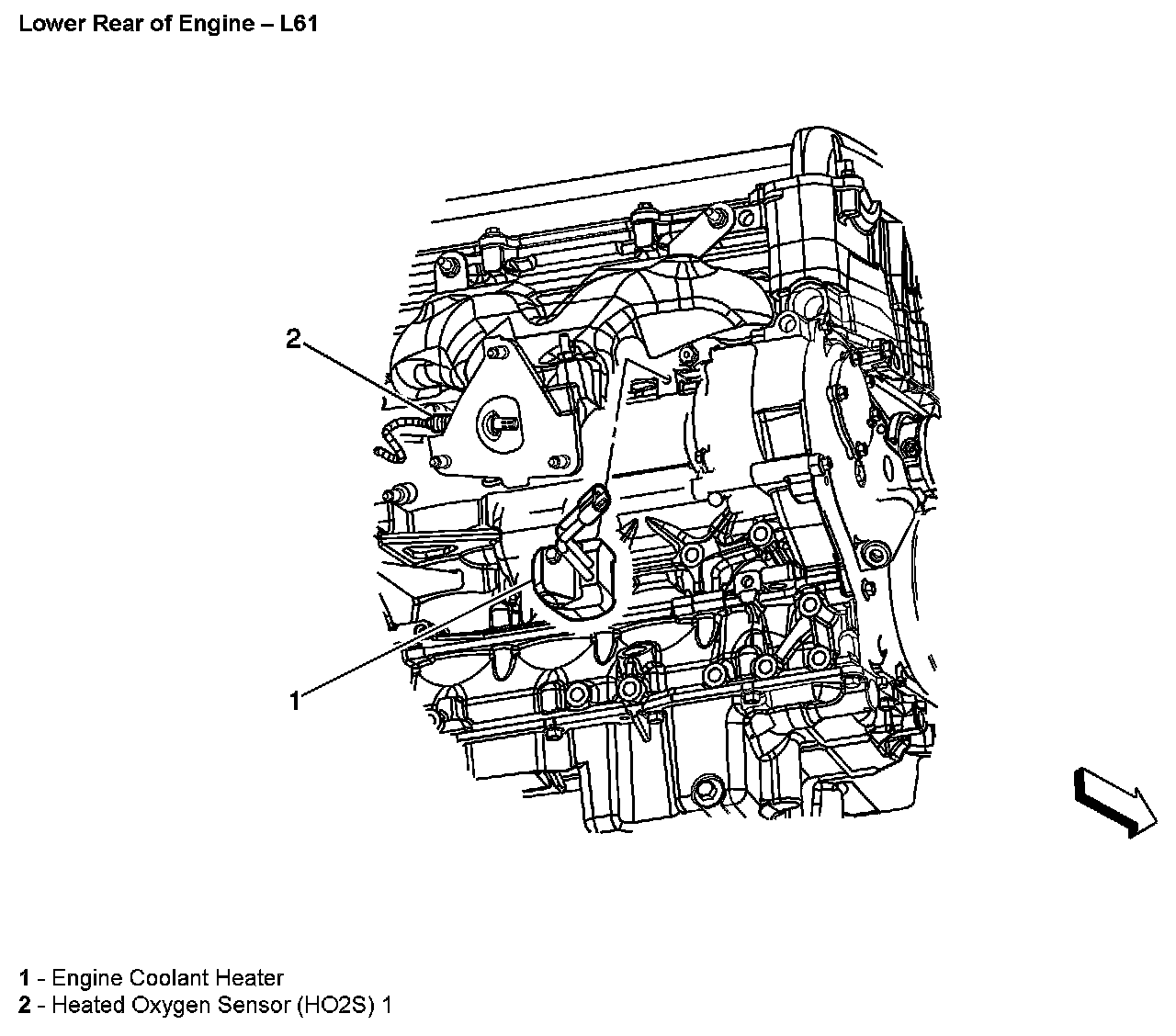

Lower Rear of Engine:
