Air Bag Control Module

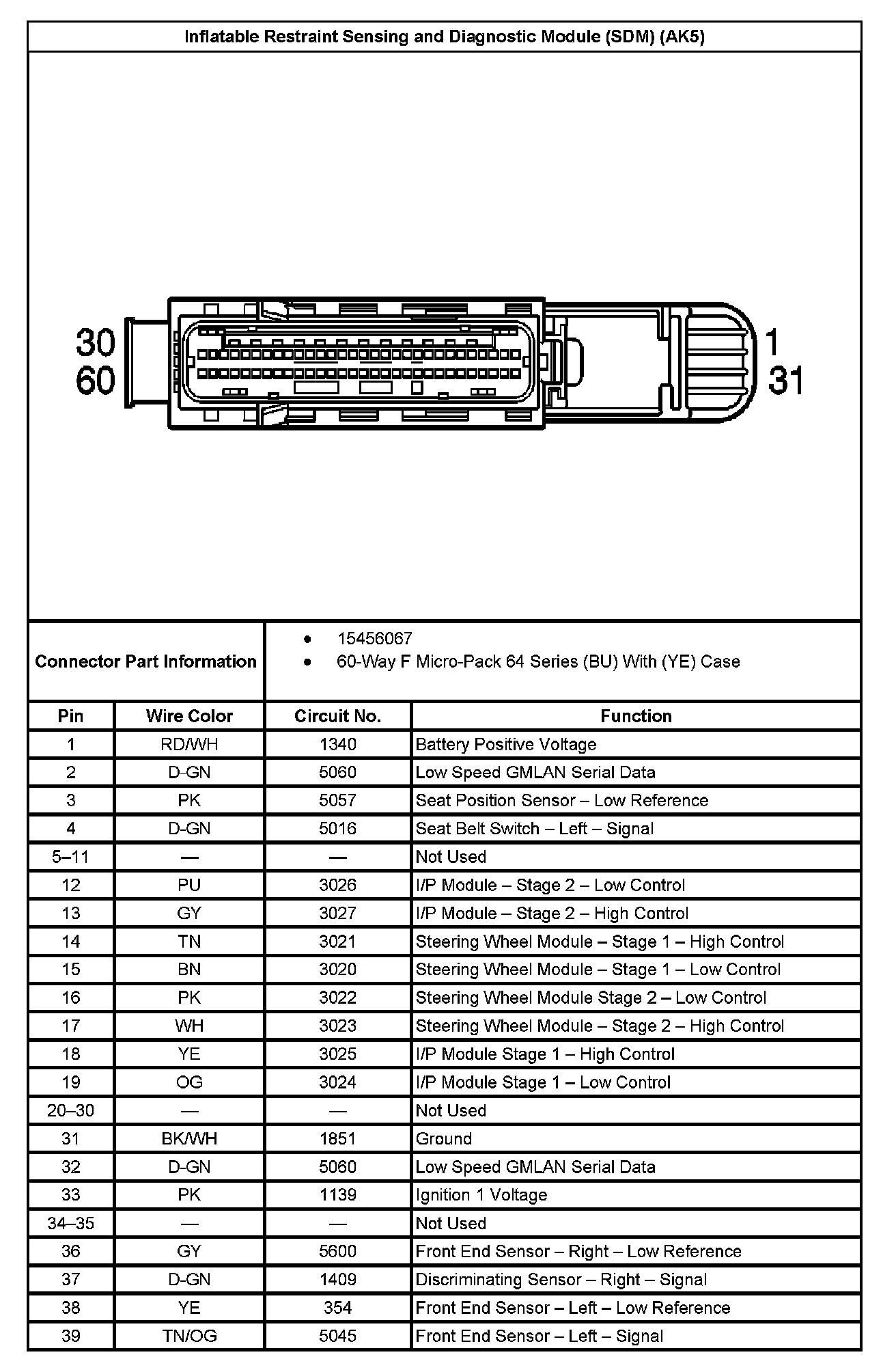

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code AK5) Part 1:



Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code AK5) Part 2:

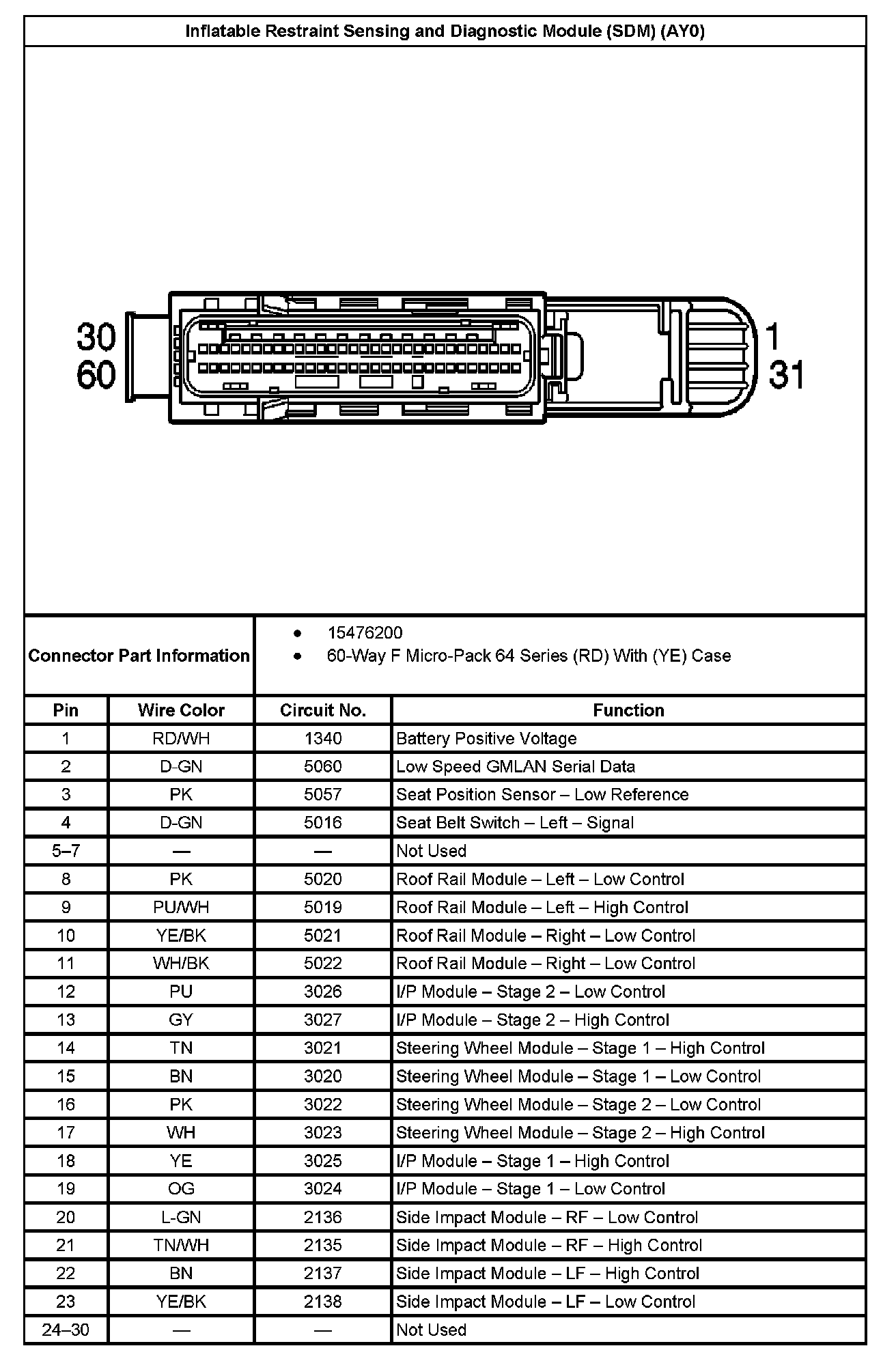

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code AY0) Part 1:

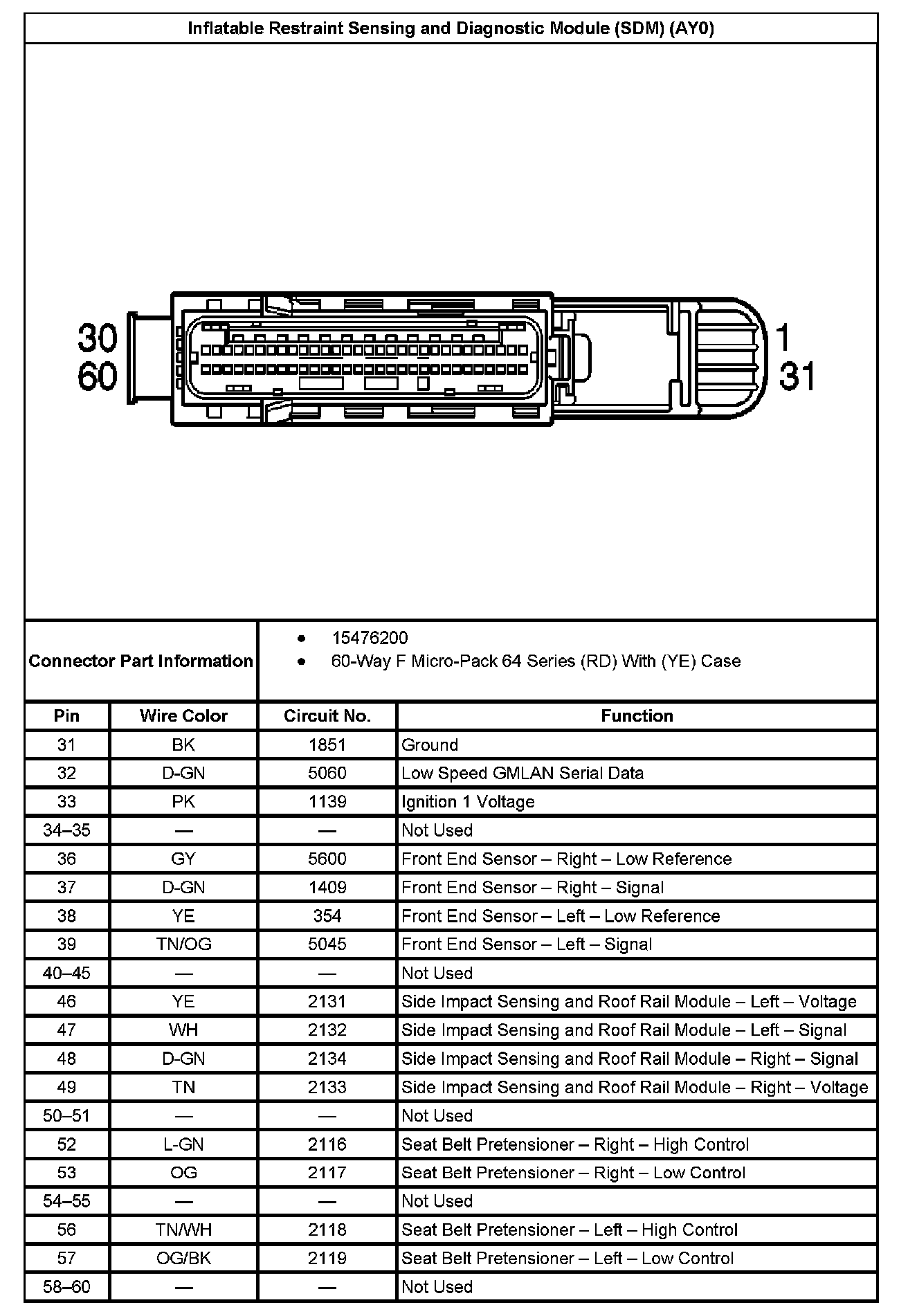

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code AY0) Part 2:
