Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components

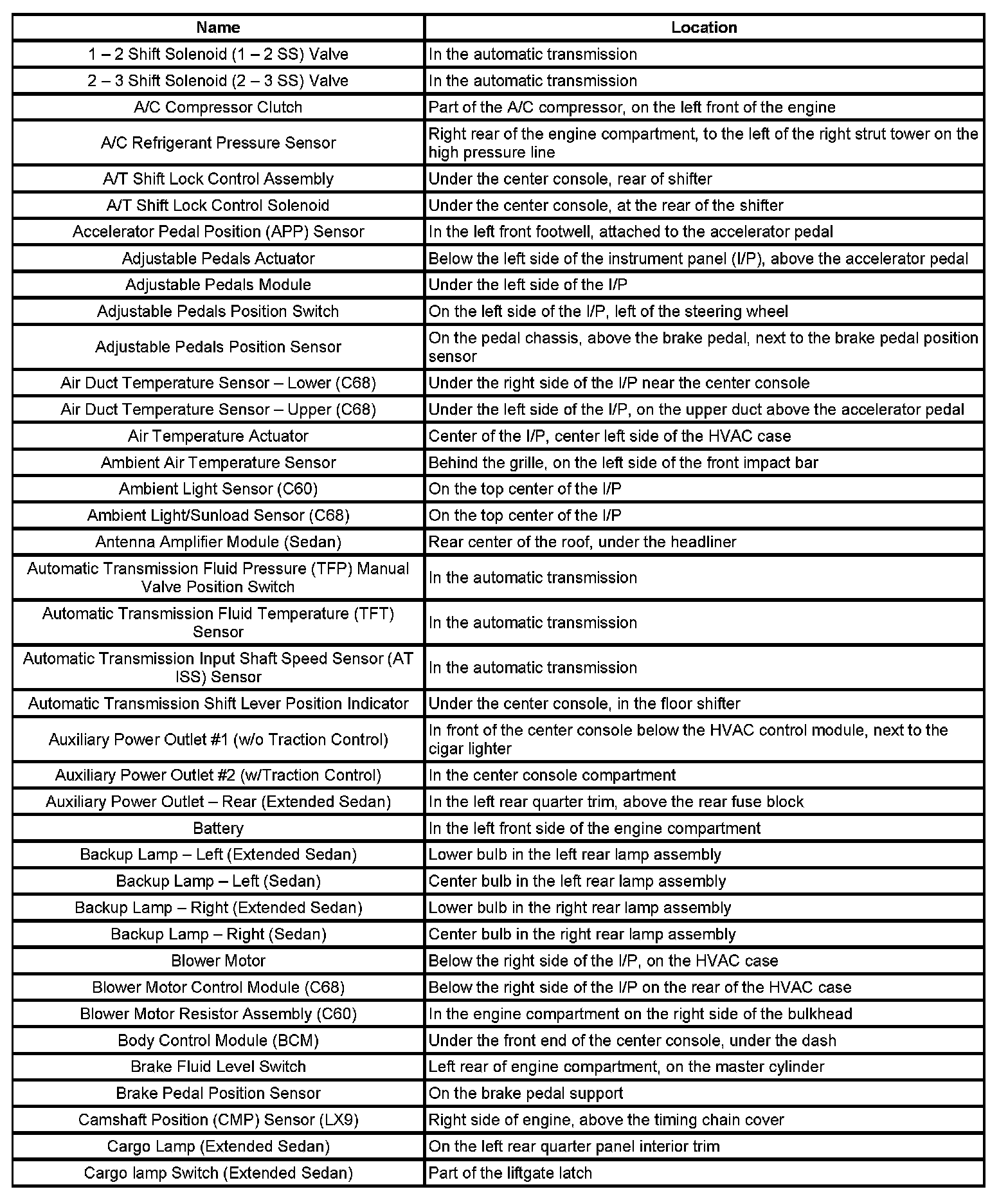

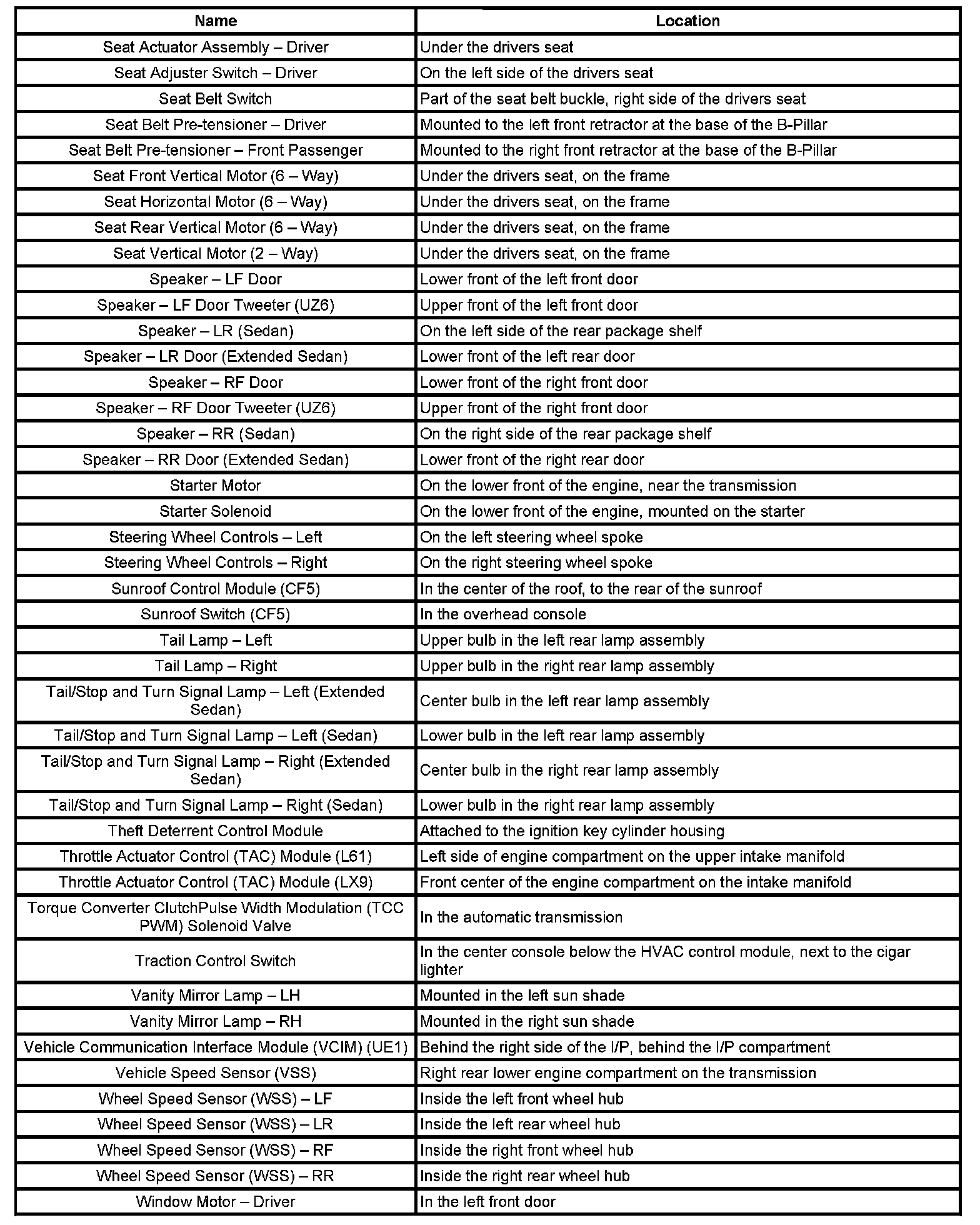

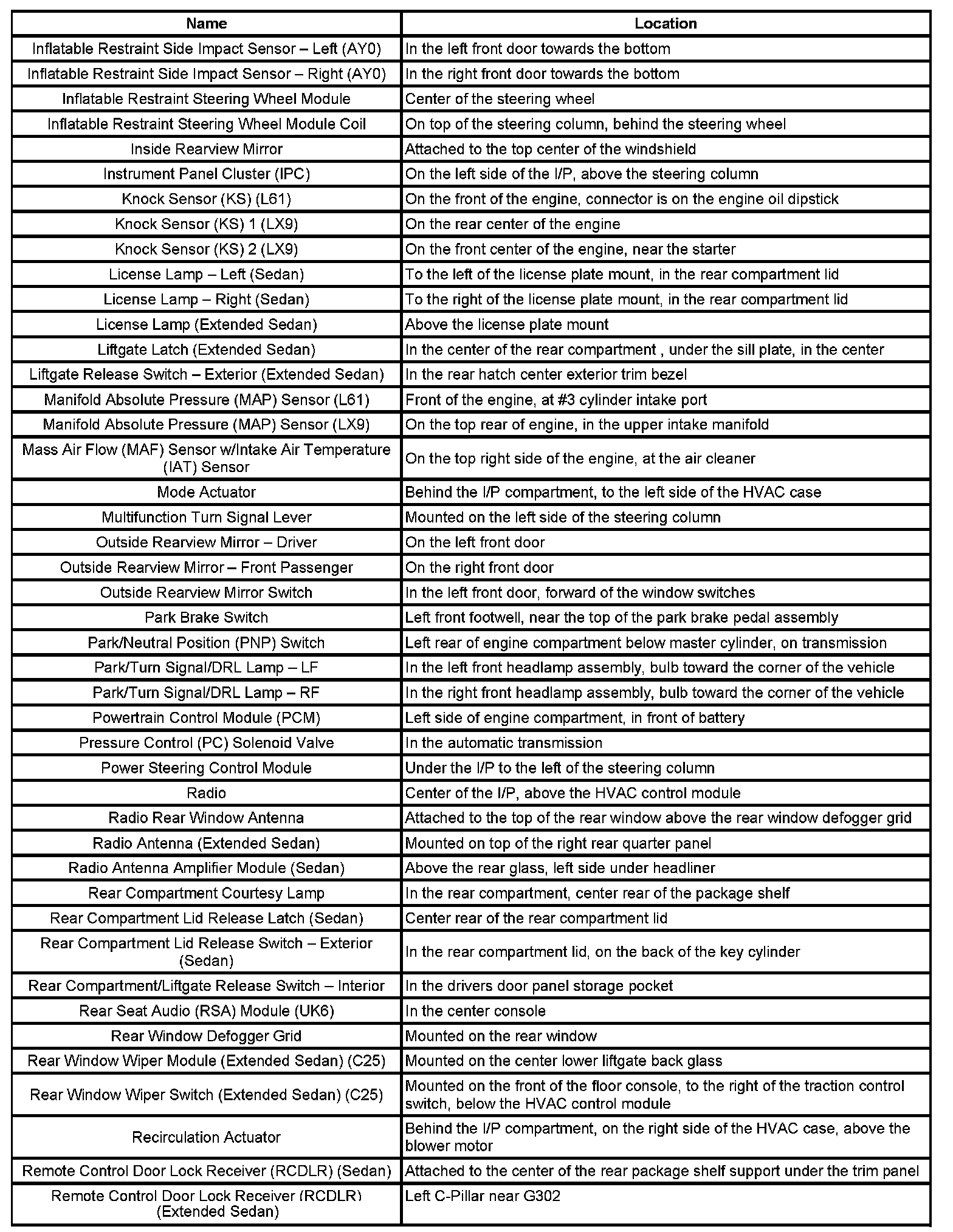

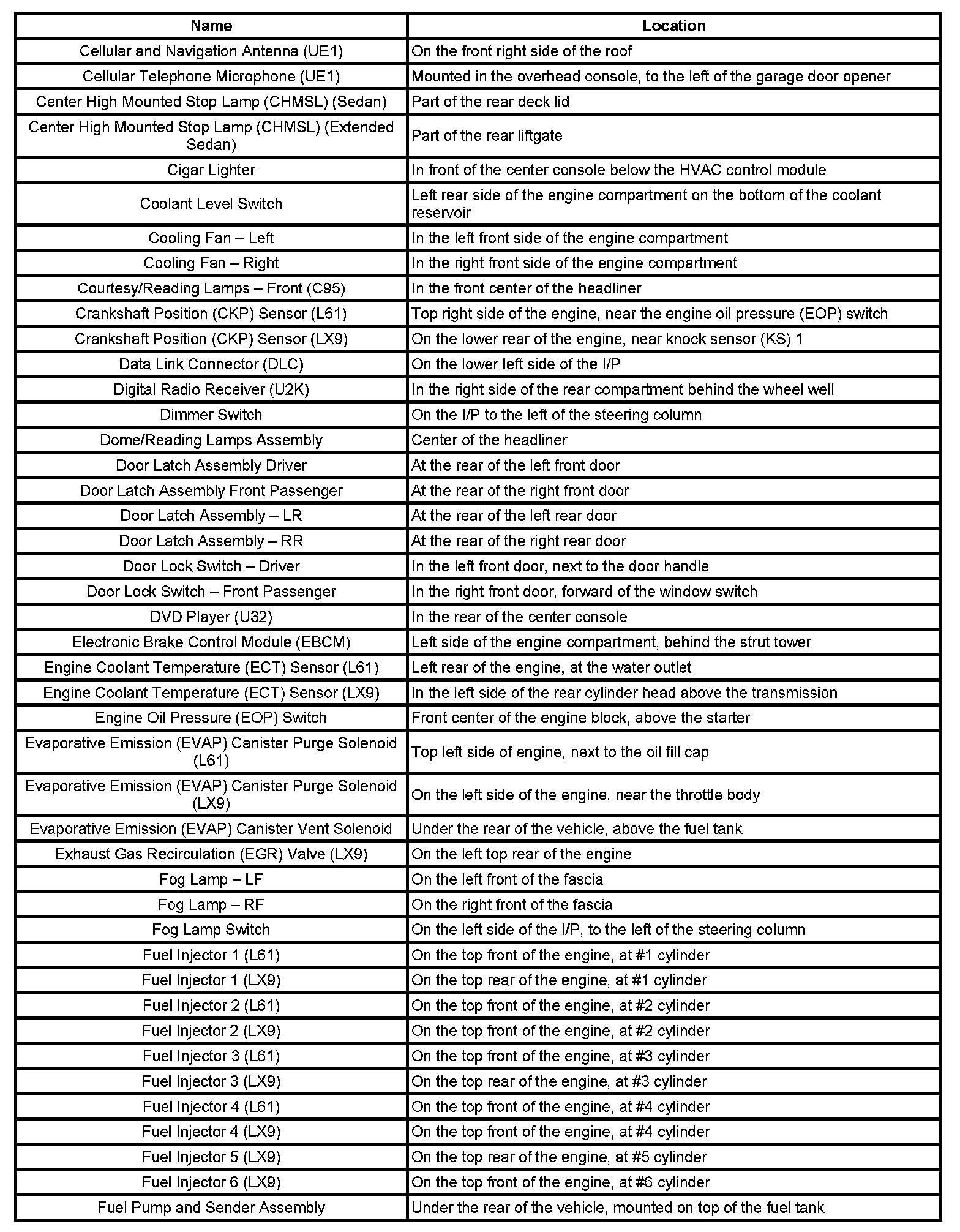

Components

1-2 - Ca:

Ce - Fu:

Fu - In:

In - Re:

Se - Wi:

Wi - Wi:
