Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations

Seat Temperature Control Module: Locations

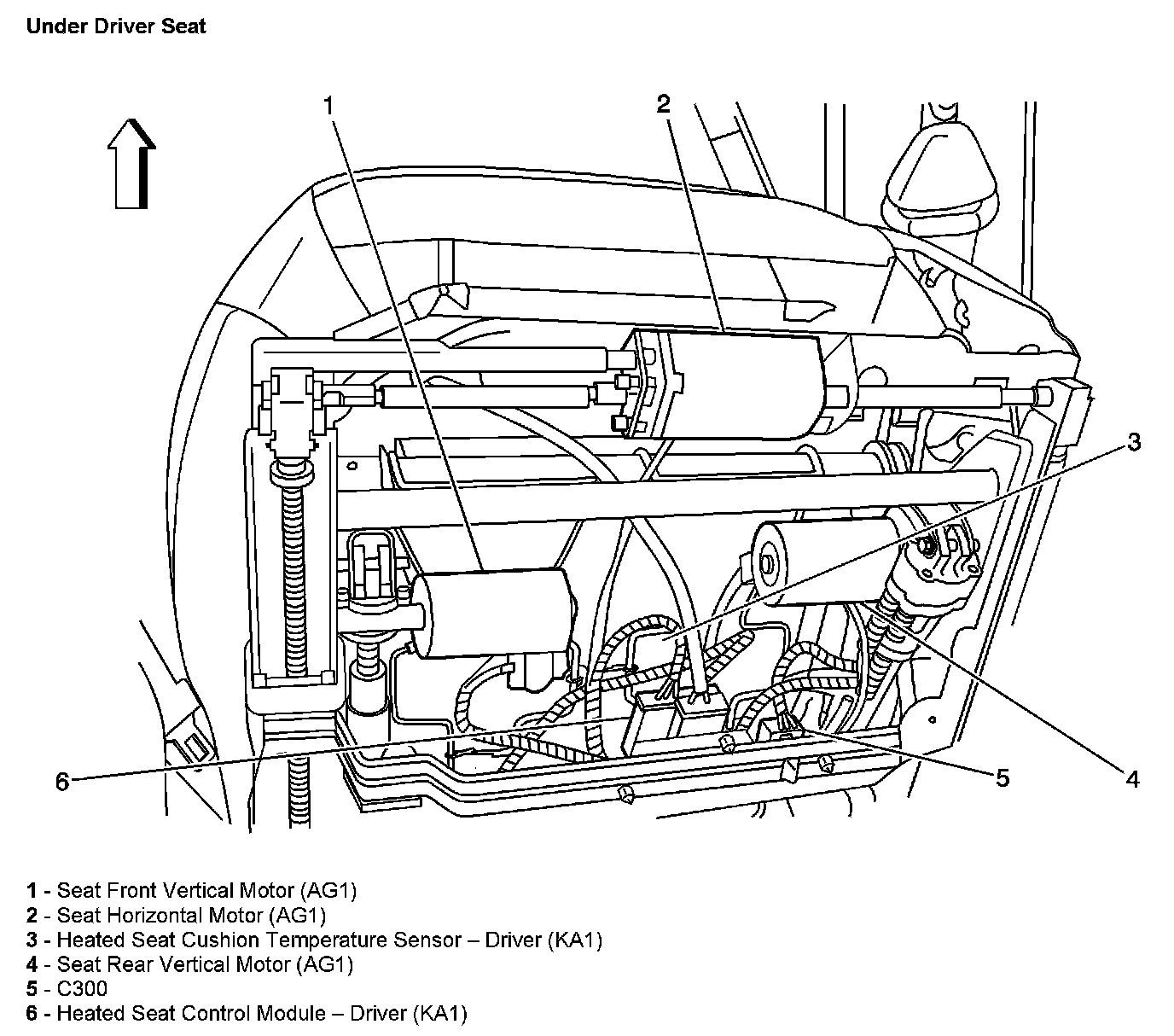

Under Driver Seat:

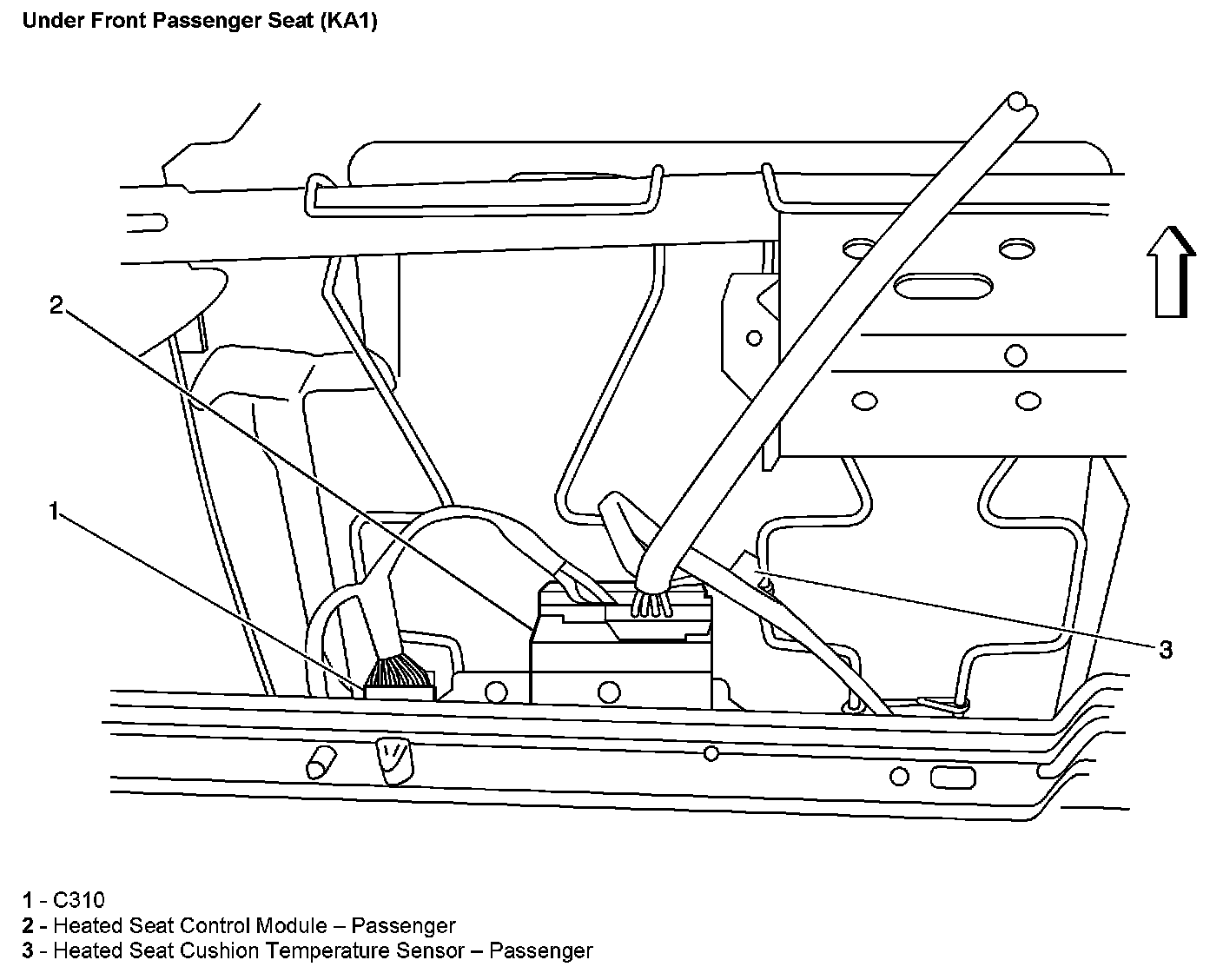

Under Front Passenger Seat (With RPO Code KA1):
