Home >> Chevrolet >> 2005 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

Wiper Control Module: Diagrams

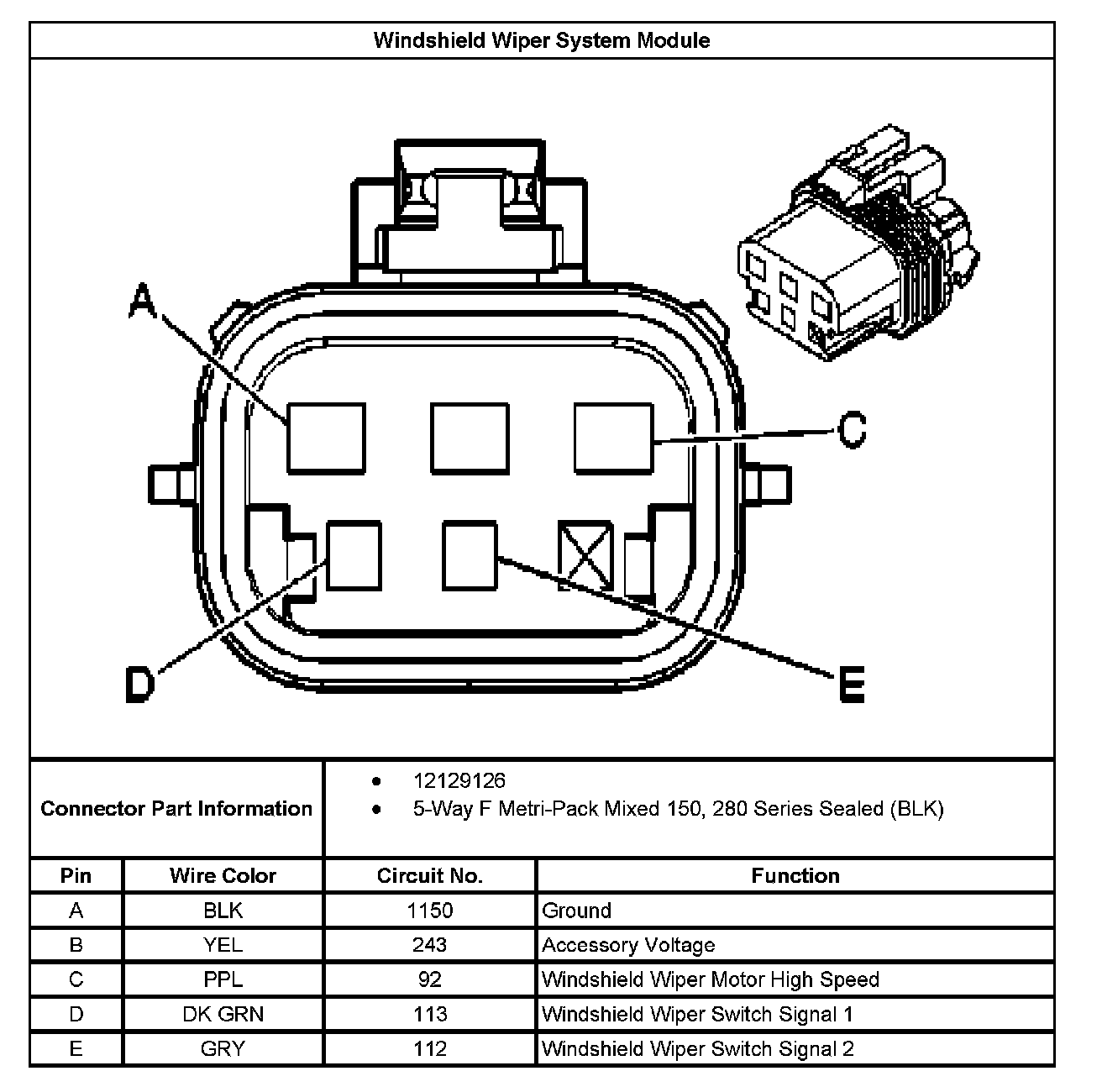

Windshield Wiper System Module:
