Home >> Chevrolet >> 2005 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Junction Block-Left I/P

Junction Block-Left I/P

Location View:

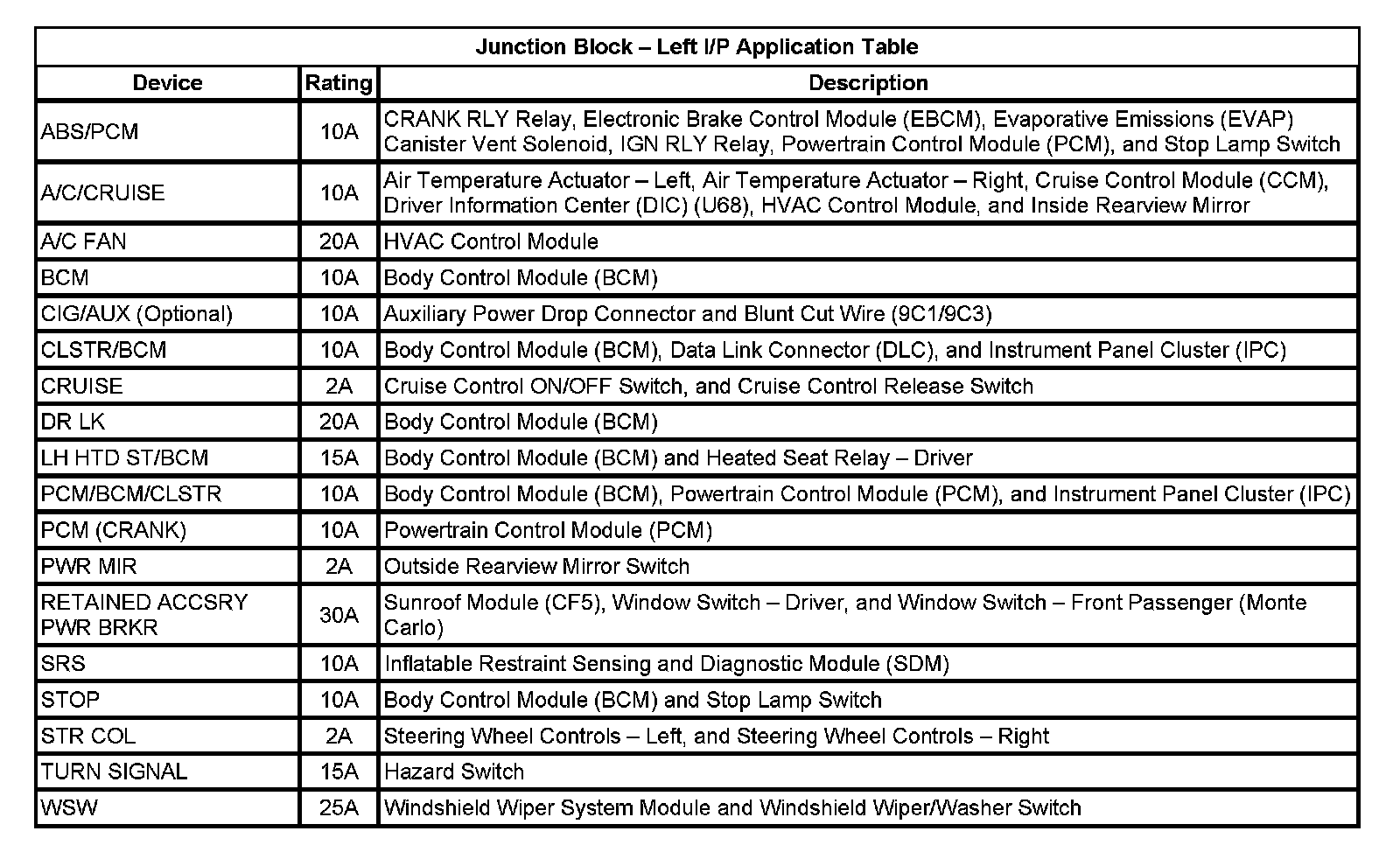

Application Table:
