Home
>>
Chevrolet
>>
2005
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

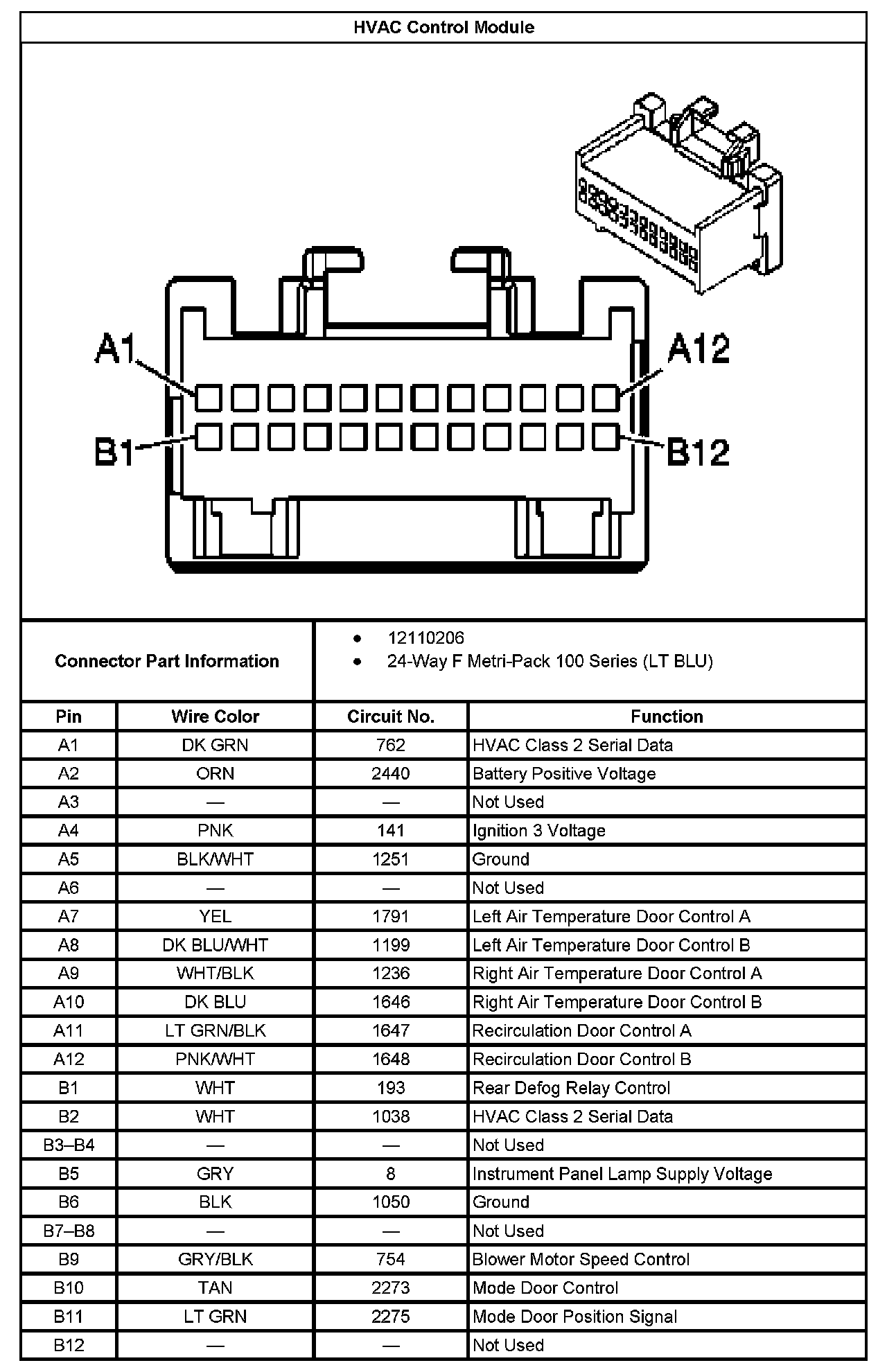

HVAC Control Module:
