Scan Tool Data List

Powertrain (Without Throttle Actuator Control):

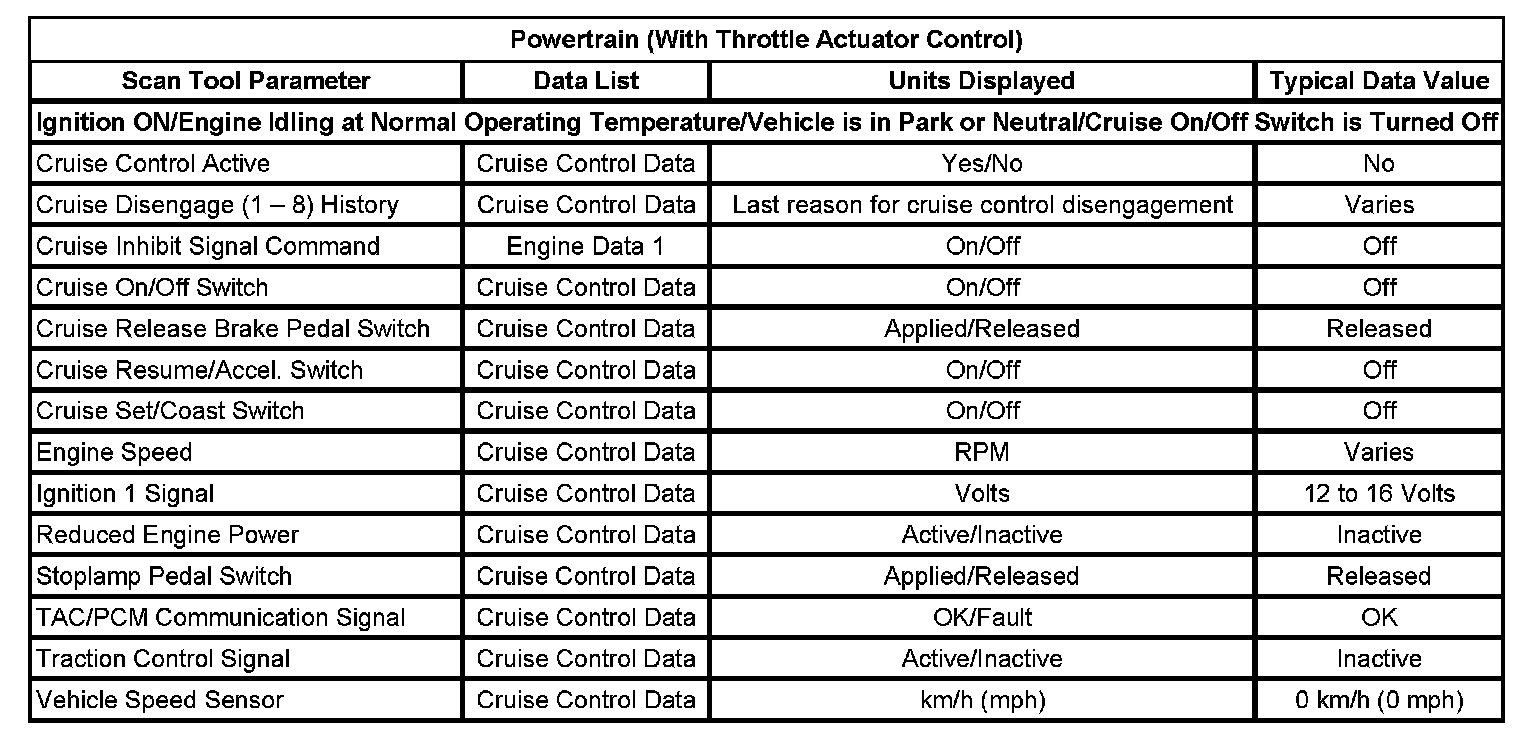

Powertrain (With Throttle Actuator Control):
