Chevrolet
>>
2005
>>
Epica (CANADA) L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
Keyless Entry
Keyless Entry

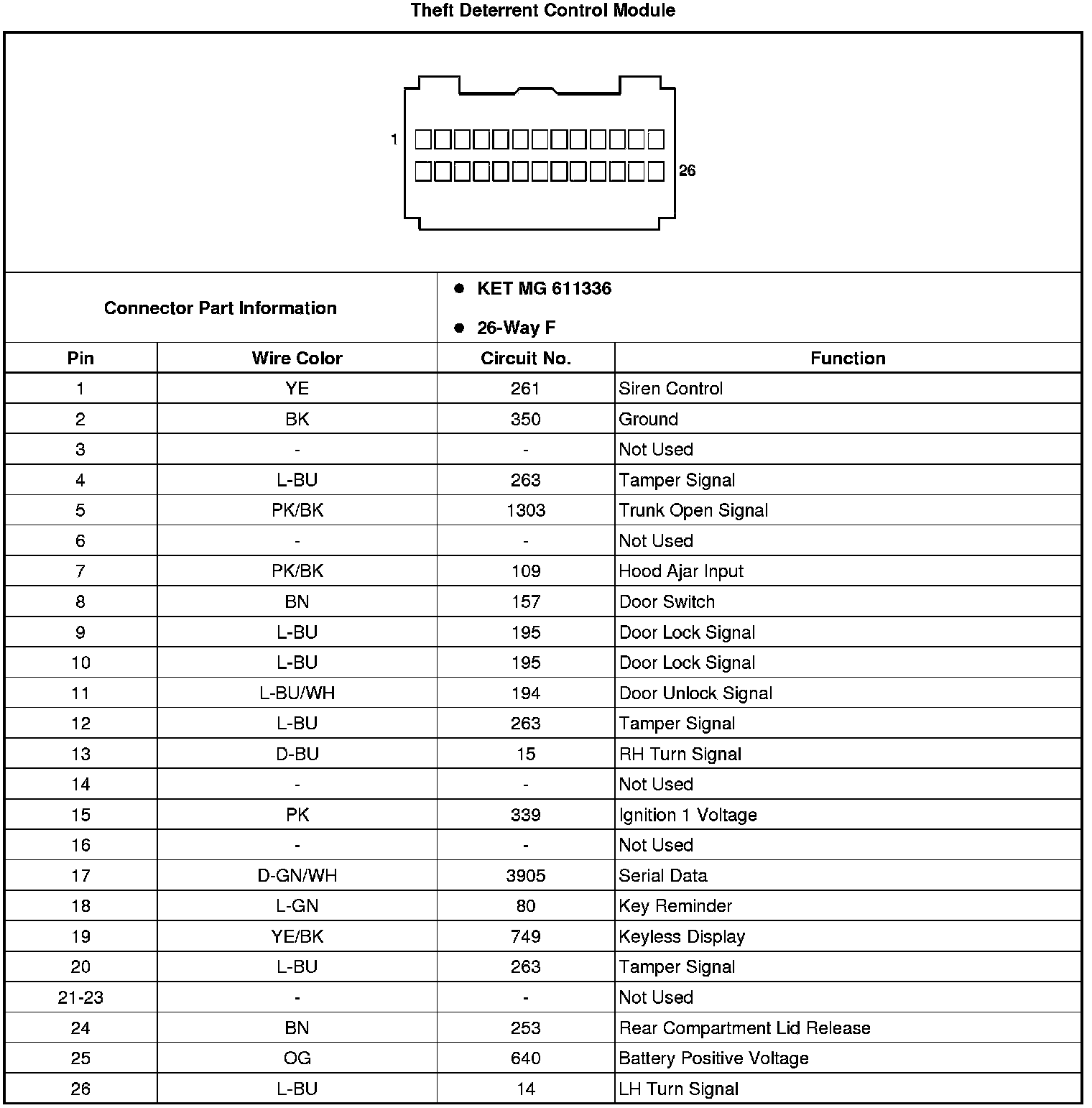

Connector End Views
