LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2005
>>
Epica (CANADA) L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System

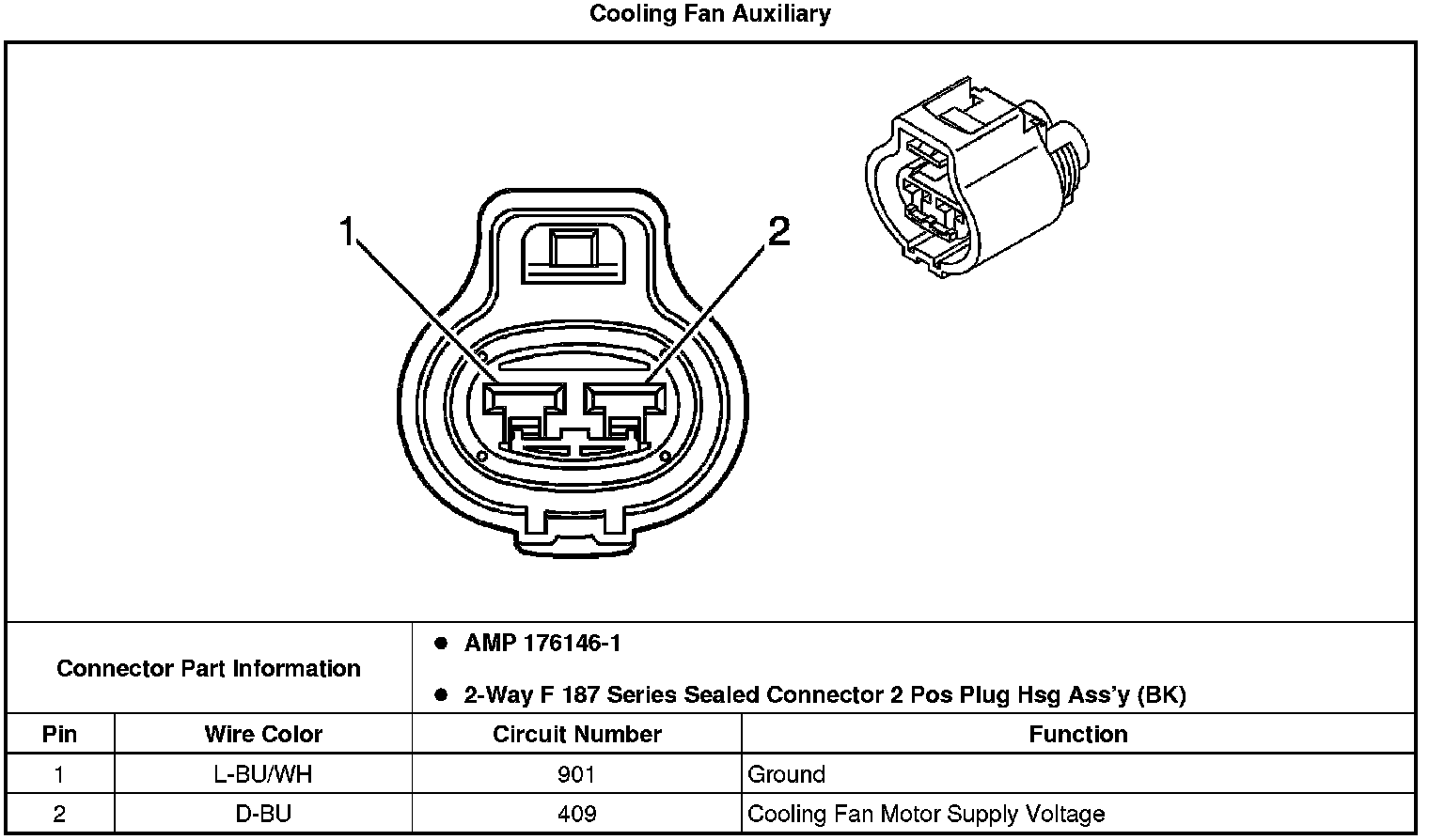

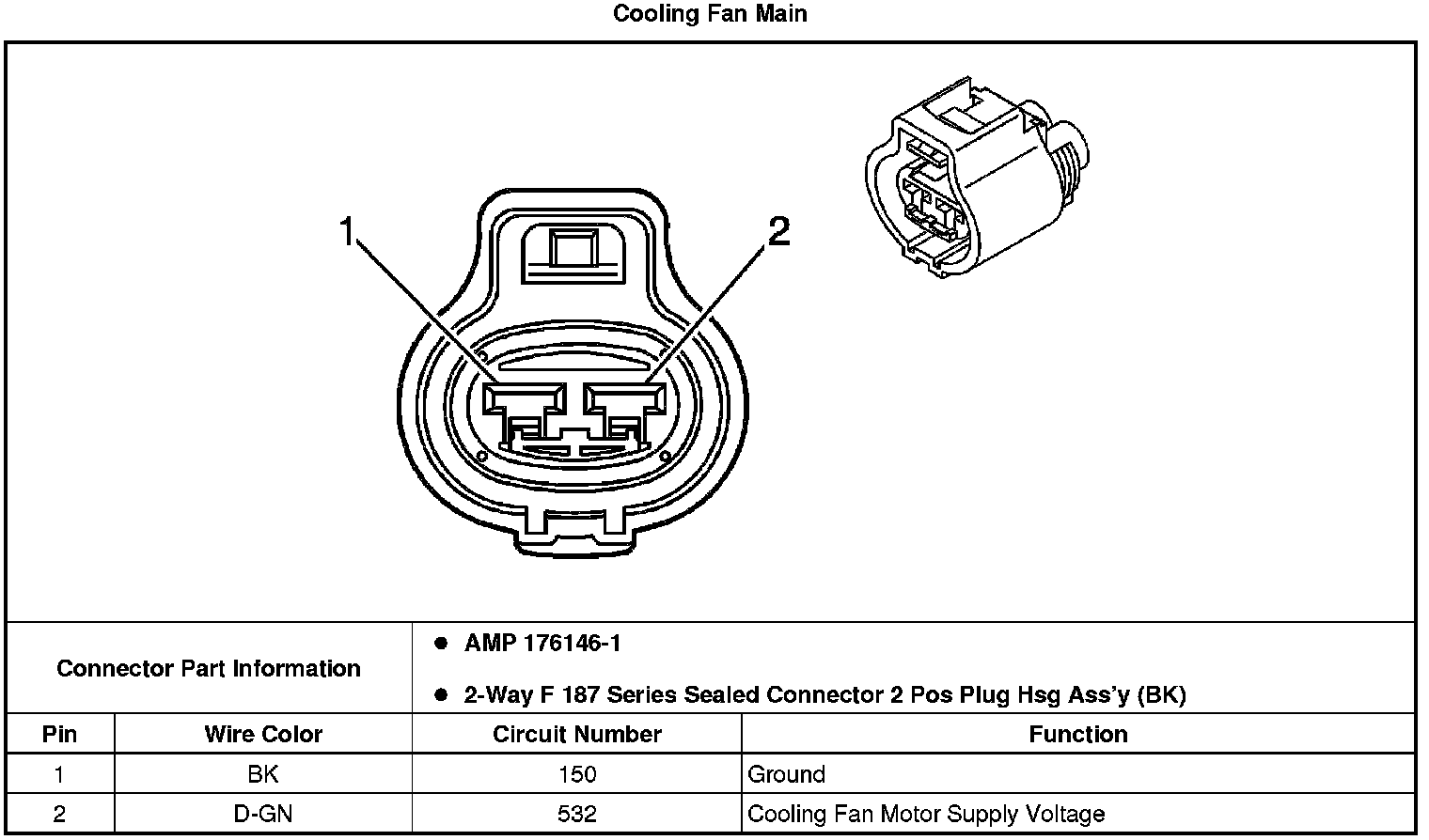

Connector End Views
