Home >> Chevrolet >> 2005 >> Colorado 2WD L5-3.5L VIN 6 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

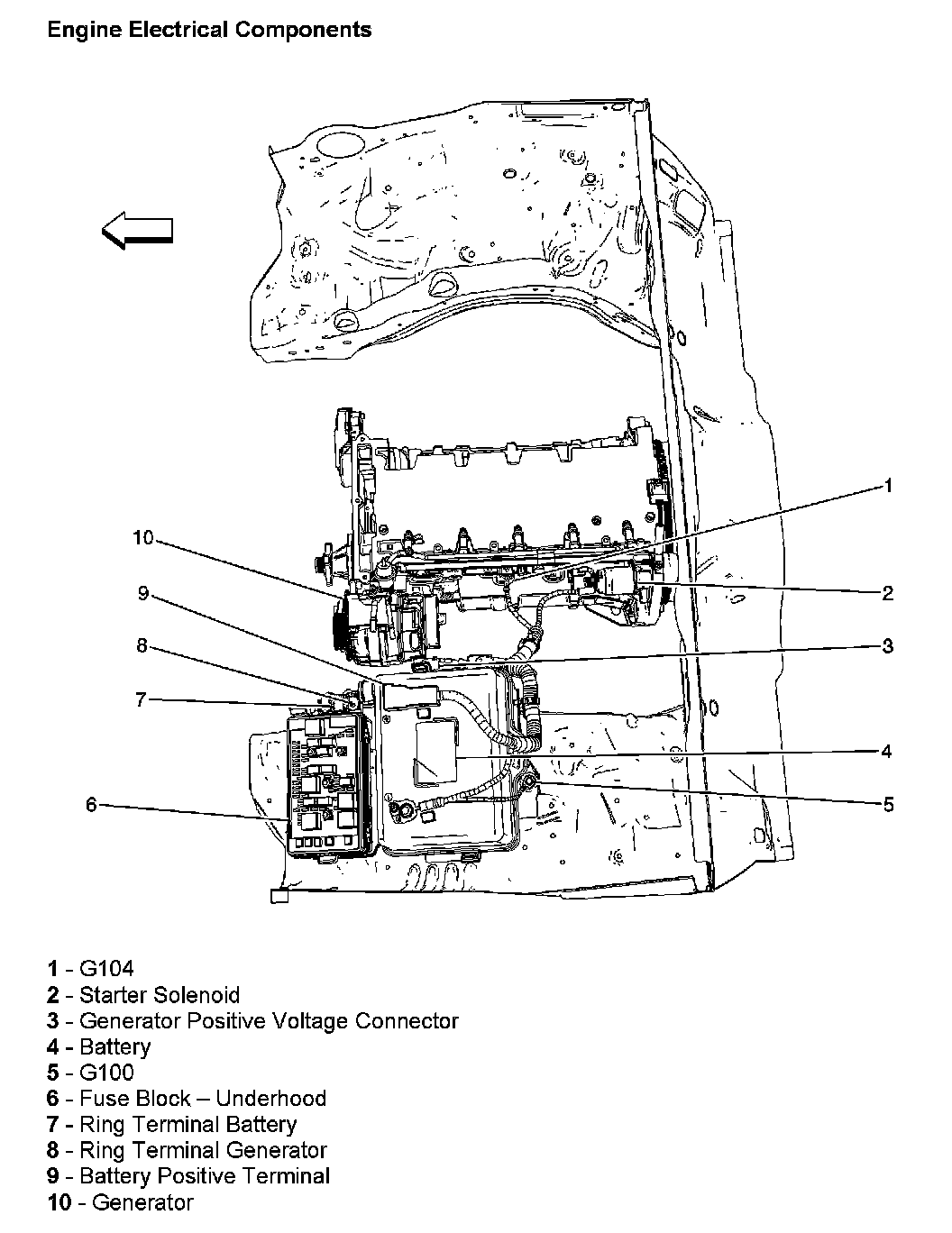

Engine Electrical Components:
