Transmission Position Sensor/Switch: Diagrams

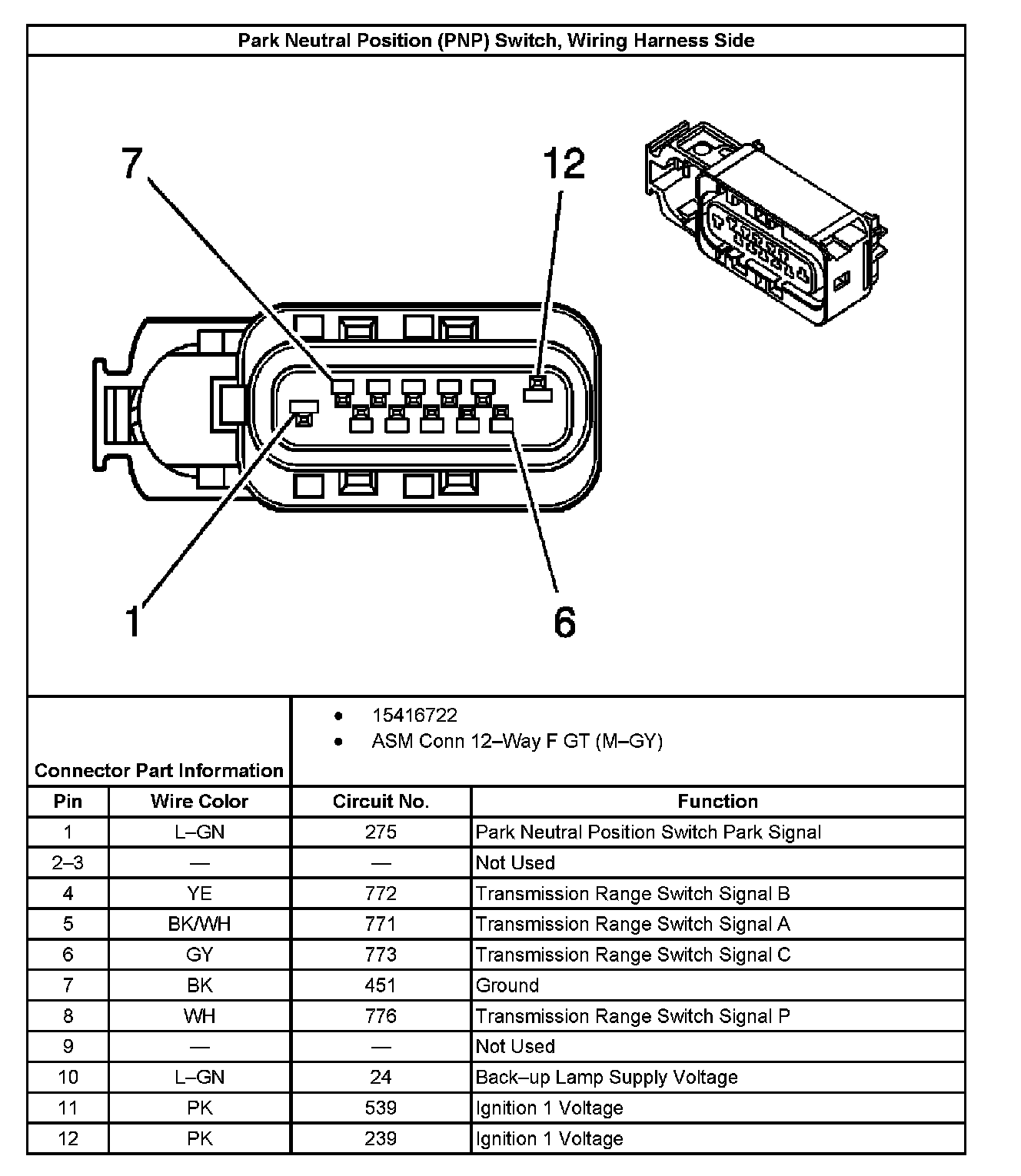

Park Neutral Position (PNP) Switch, Wiring Harness Side:
