Home >> Chevrolet >> 2005 >> Colorado 2WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> HVAC Module Assembly Subsystem Views

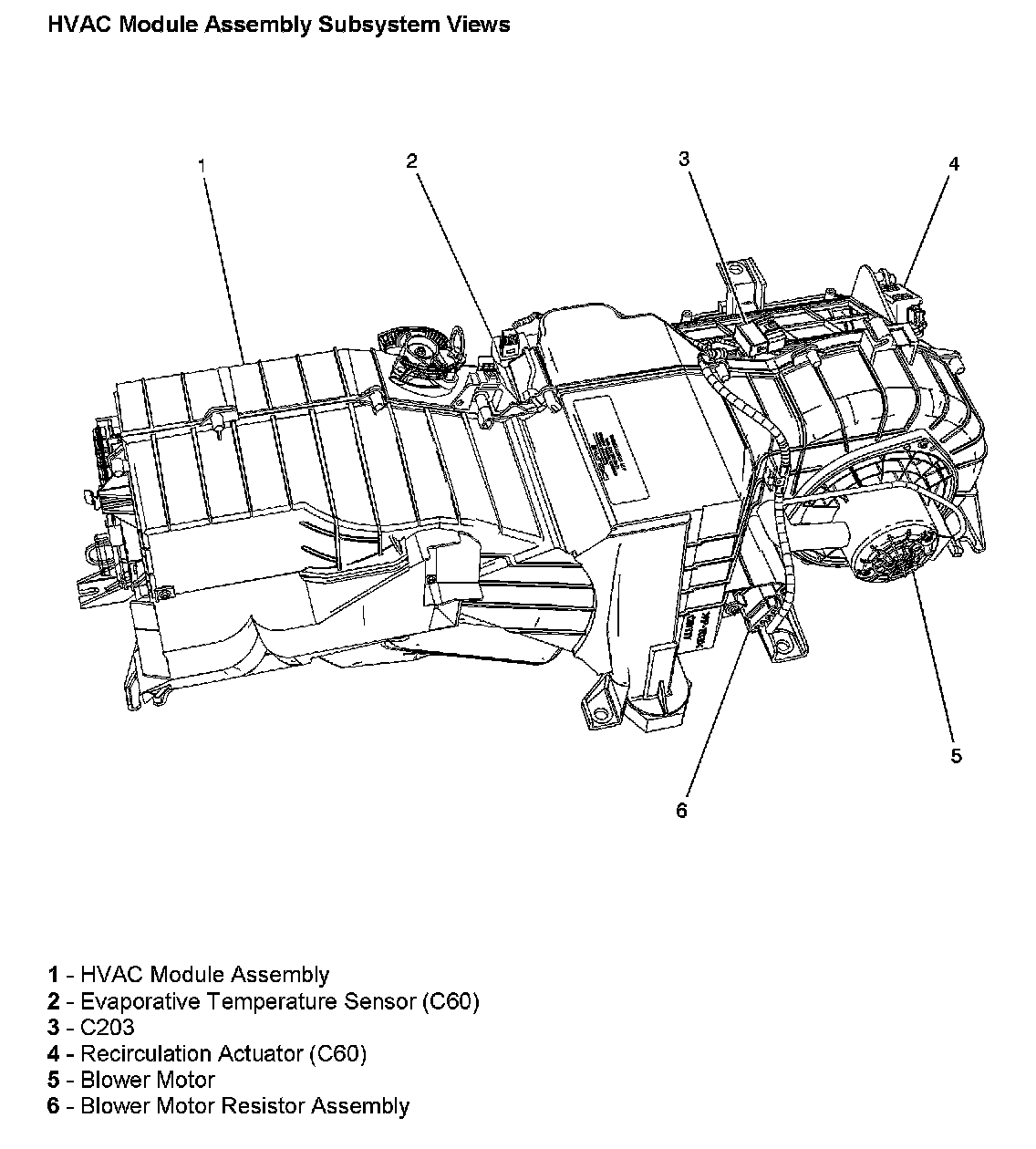

HVAC Module Assembly Subsystem Views

HVAC Module Assembly Subsystem Views:
