Chevrolet
>>
2005
>>
Colorado 2WD L4-2.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Powertrain Control Module (PCM) C3
Powertrain Control Module (PCM) C3

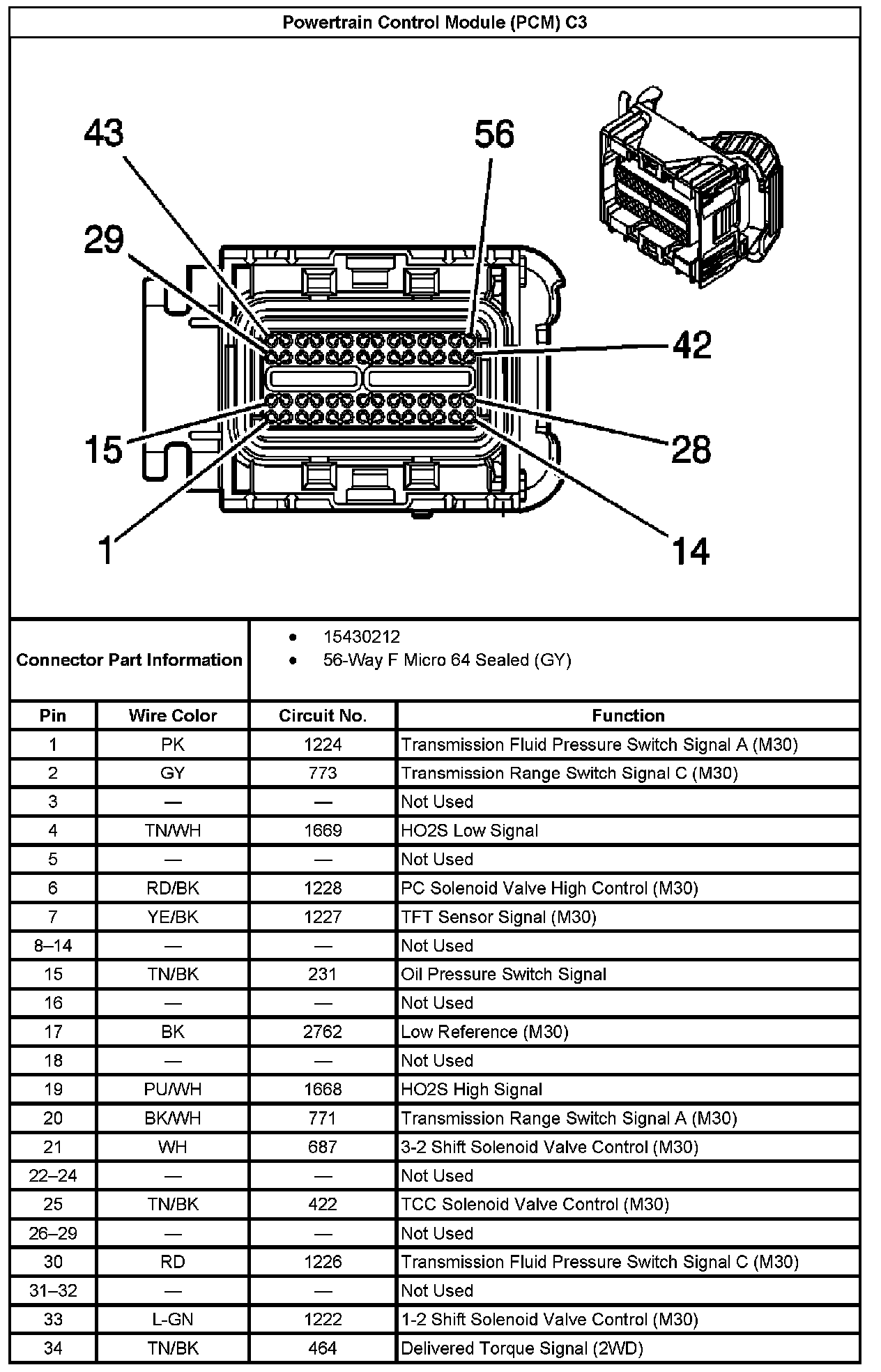

Powertrain Control Module (PCM) C3 Part 1:

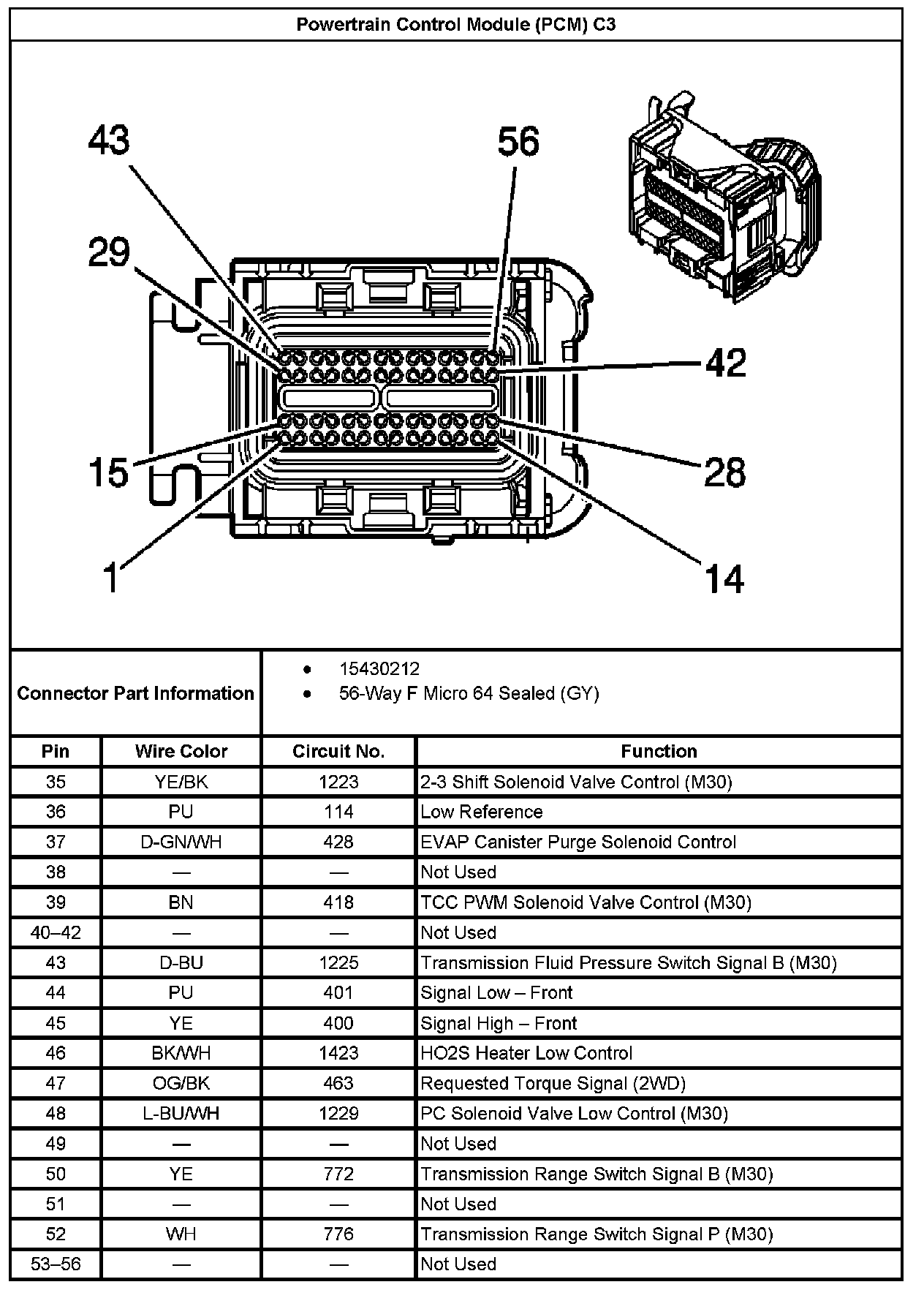

Powertrain Control Module (PCM) C3 Part 2:
