Home >> Chevrolet >> 2005 >> Cobalt L4-2.2L VIN F >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Compartment Views

Compartment Views

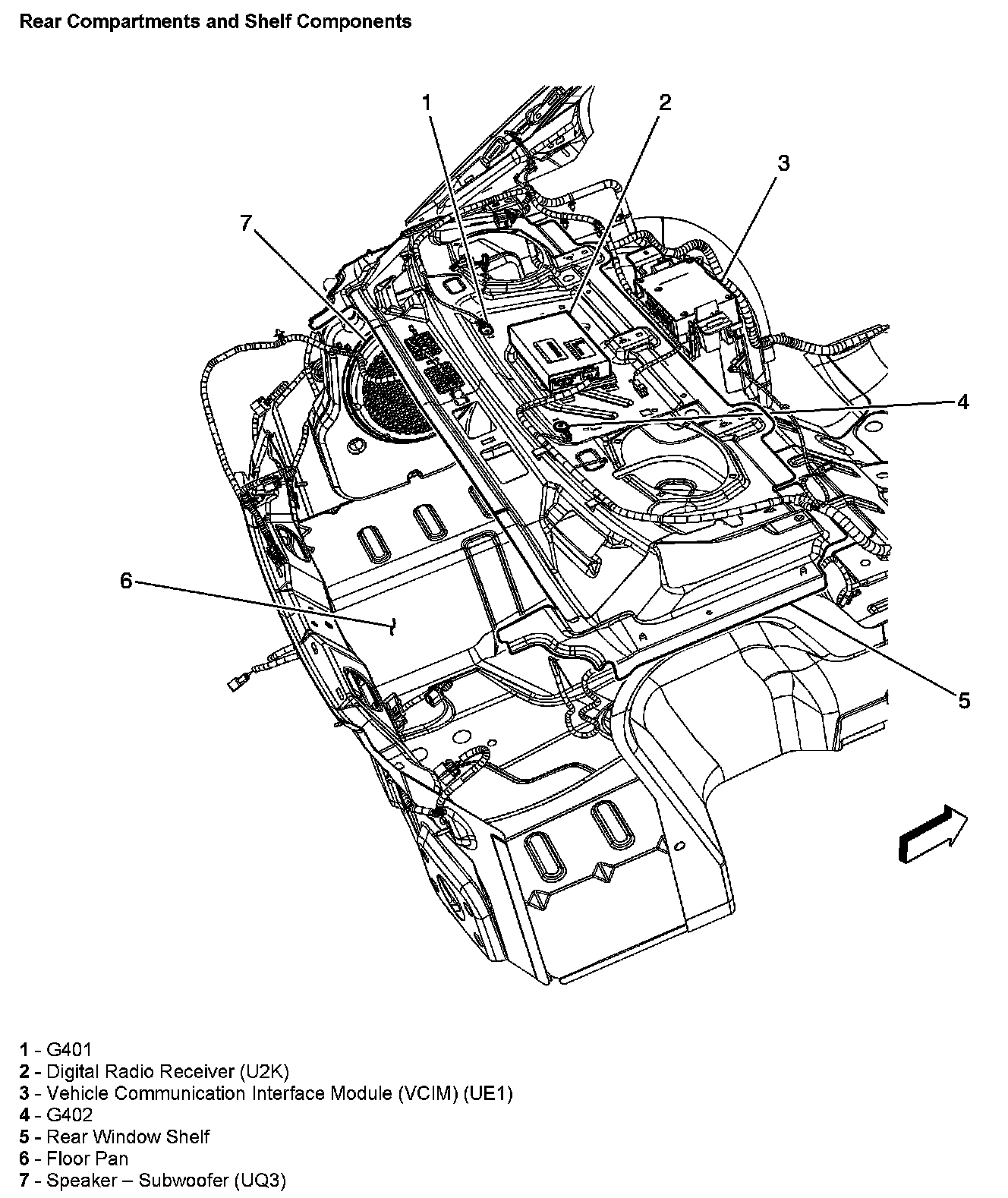

Rear Compartments and Shelf Components:
