Power Window Switch
>>
Window Switch - Driver
Window Switch - Driver

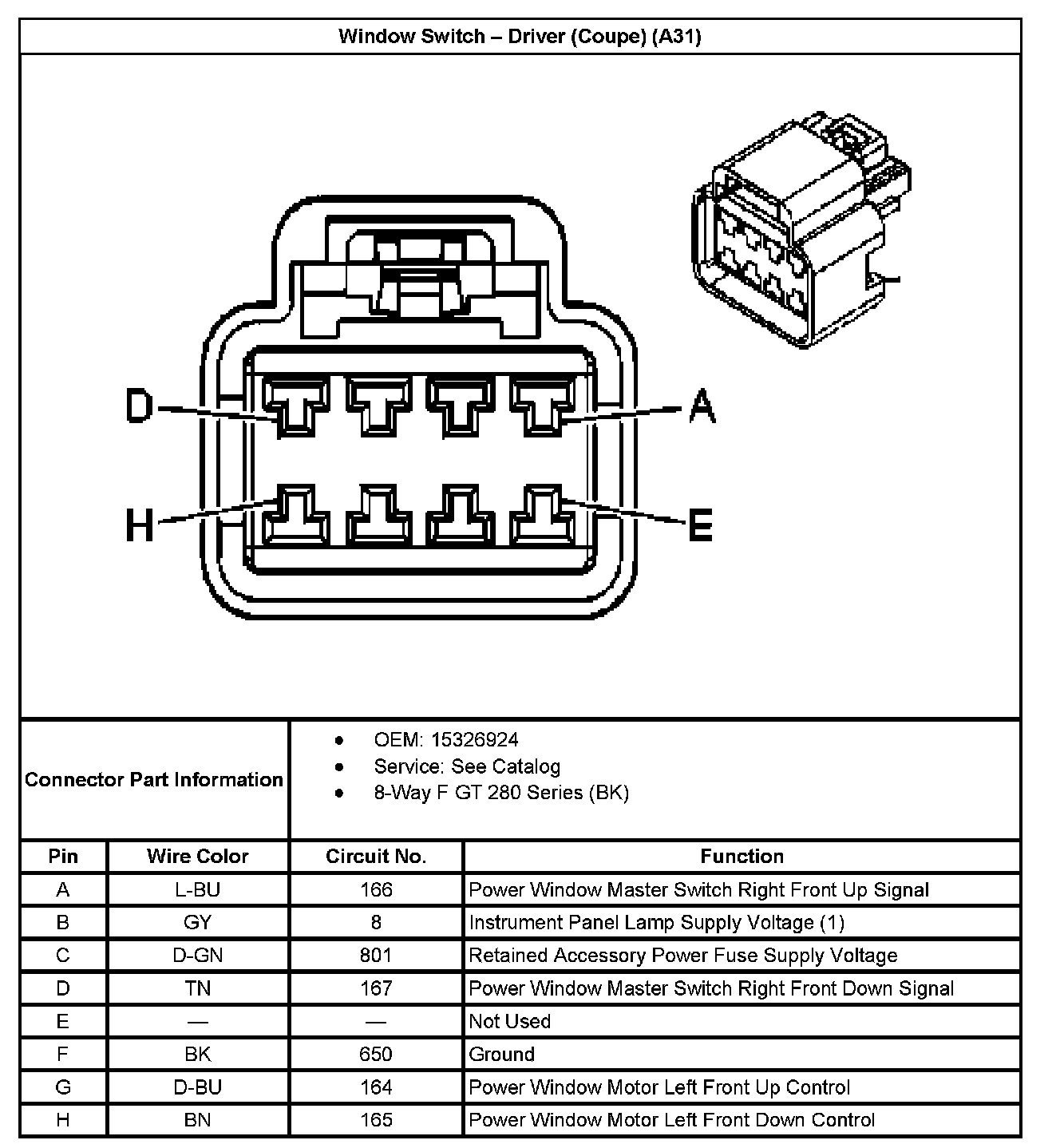

Window Switch - Driver (Coupe) (With RPO Code A31):

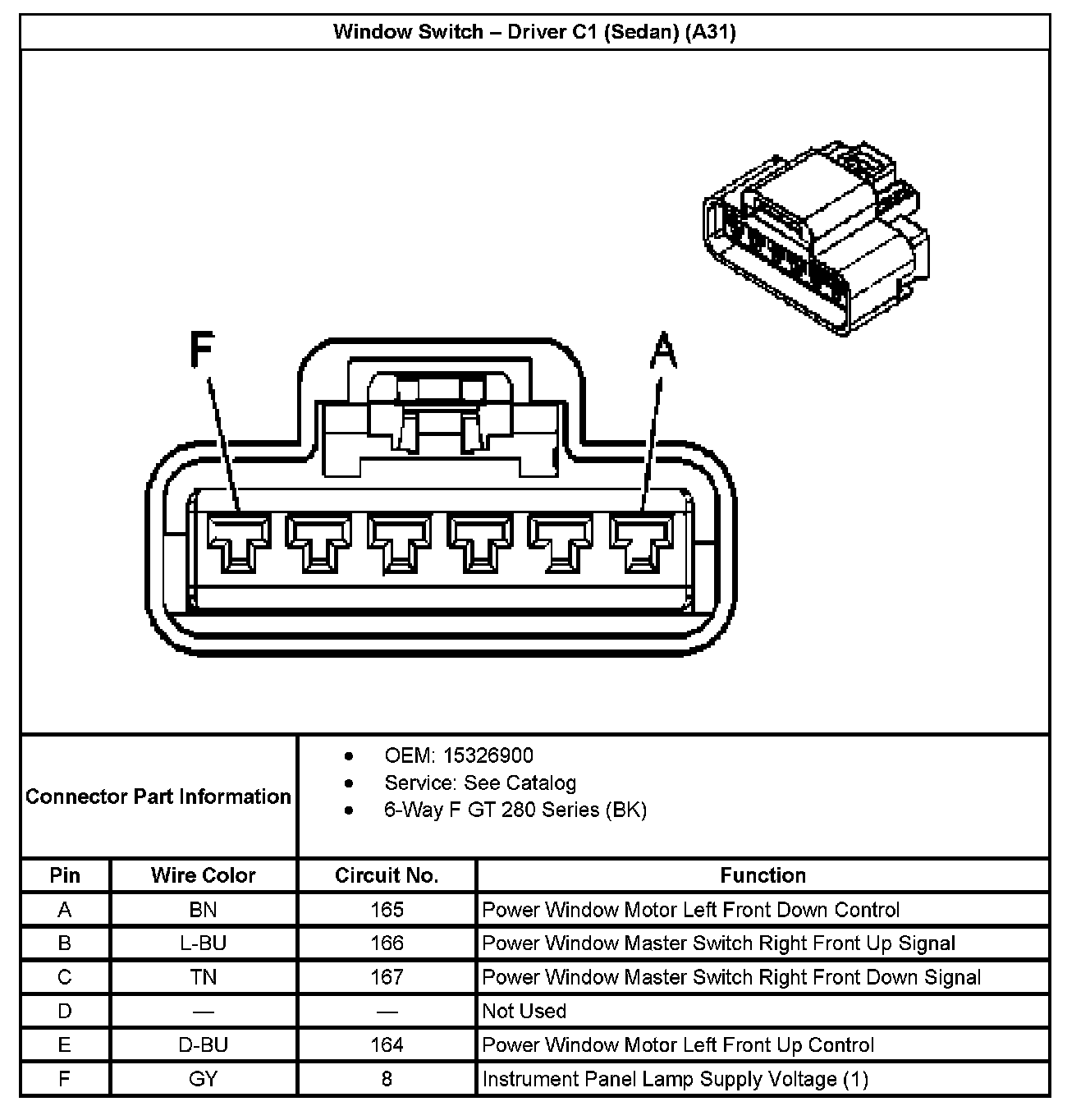

Window Switch - Driver C1 (Sedan) (With RPO Code A31):

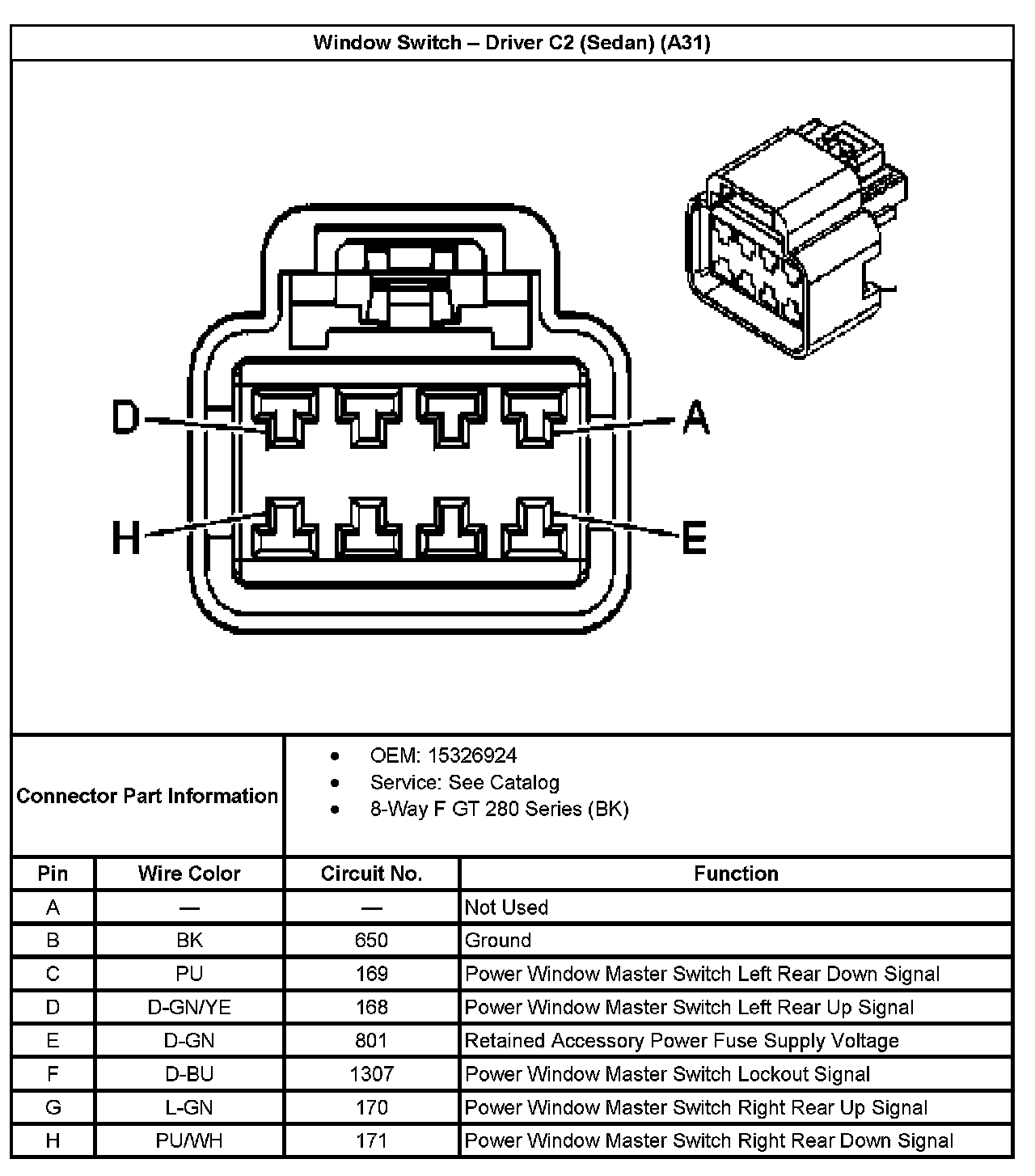

Window Switch - Driver C2 (Sedan) (With RPO Code A31):
