Home
>>
Chevrolet
>>
2005
>>
Cobalt L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signals
>>
Combination Switch
Combination Switch
Turn Signal/Multifunction Switch C1:

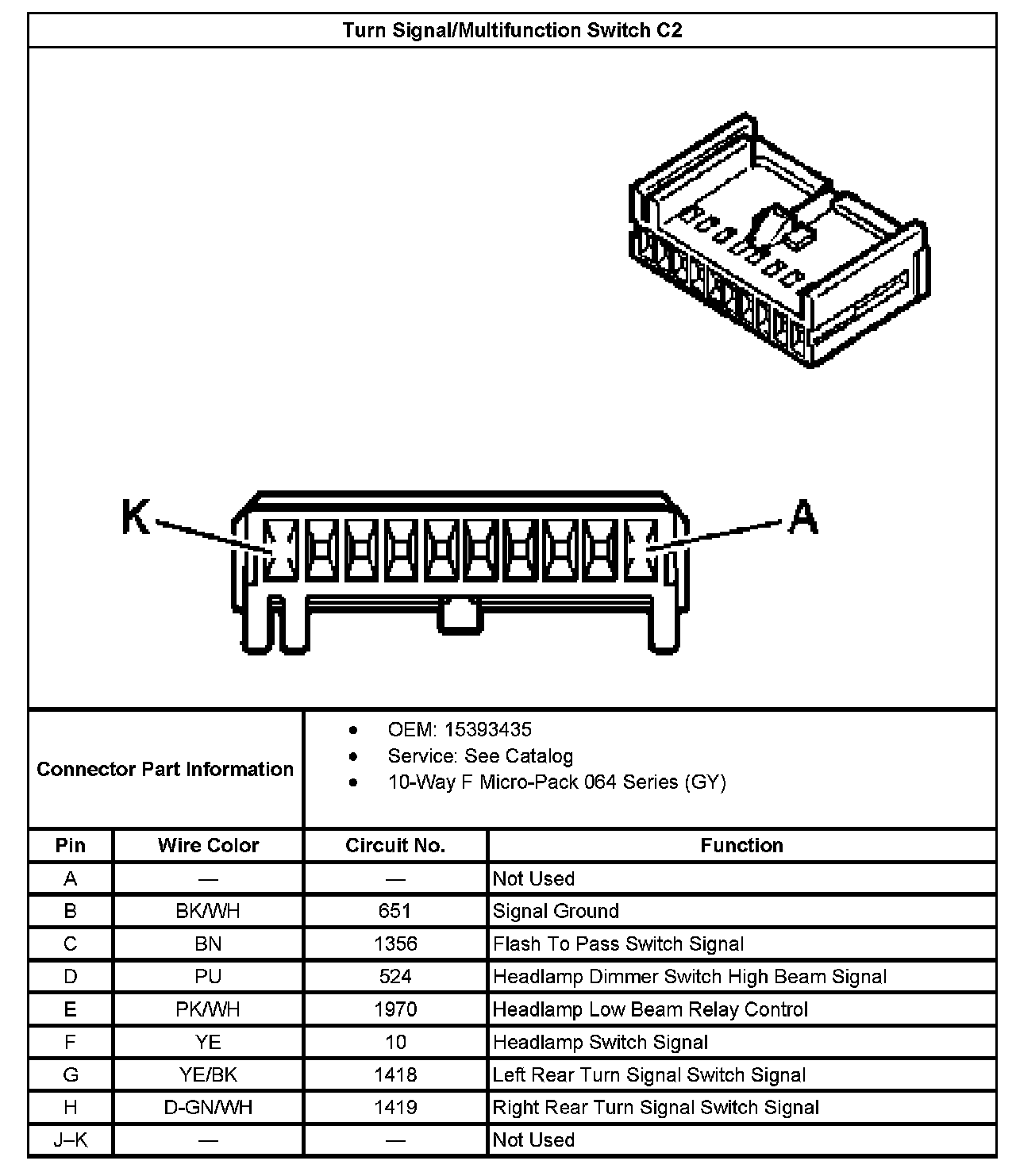

Turn Signal/Multifunction Switch C2:
