Impact Sensor
>>
Inflatable Restraint Side Impact Sensor
Inflatable Restraint Side Impact Sensor

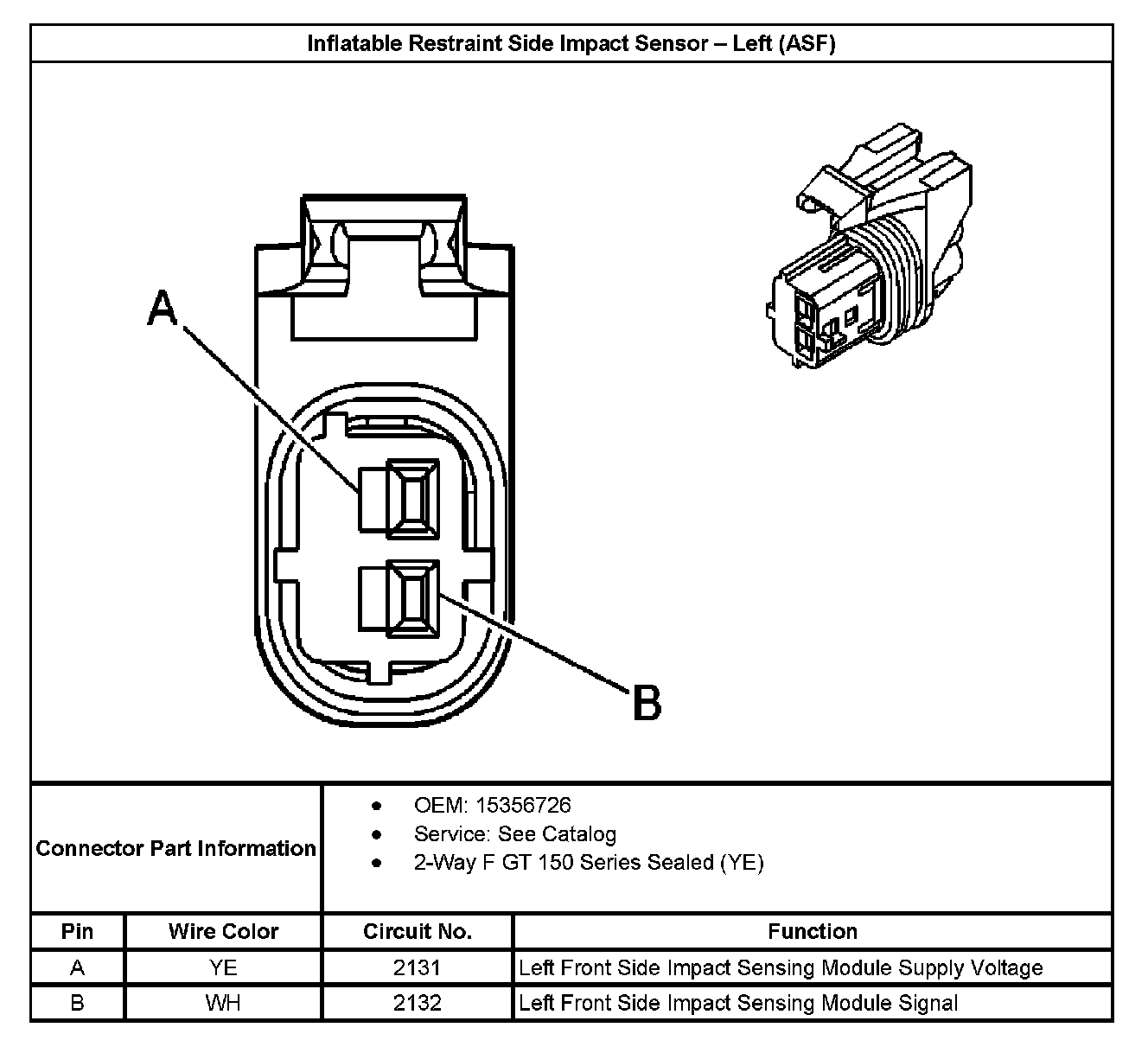

Inflatable Restraint Side Impact Sensor - Left (With RPO Code ASF):

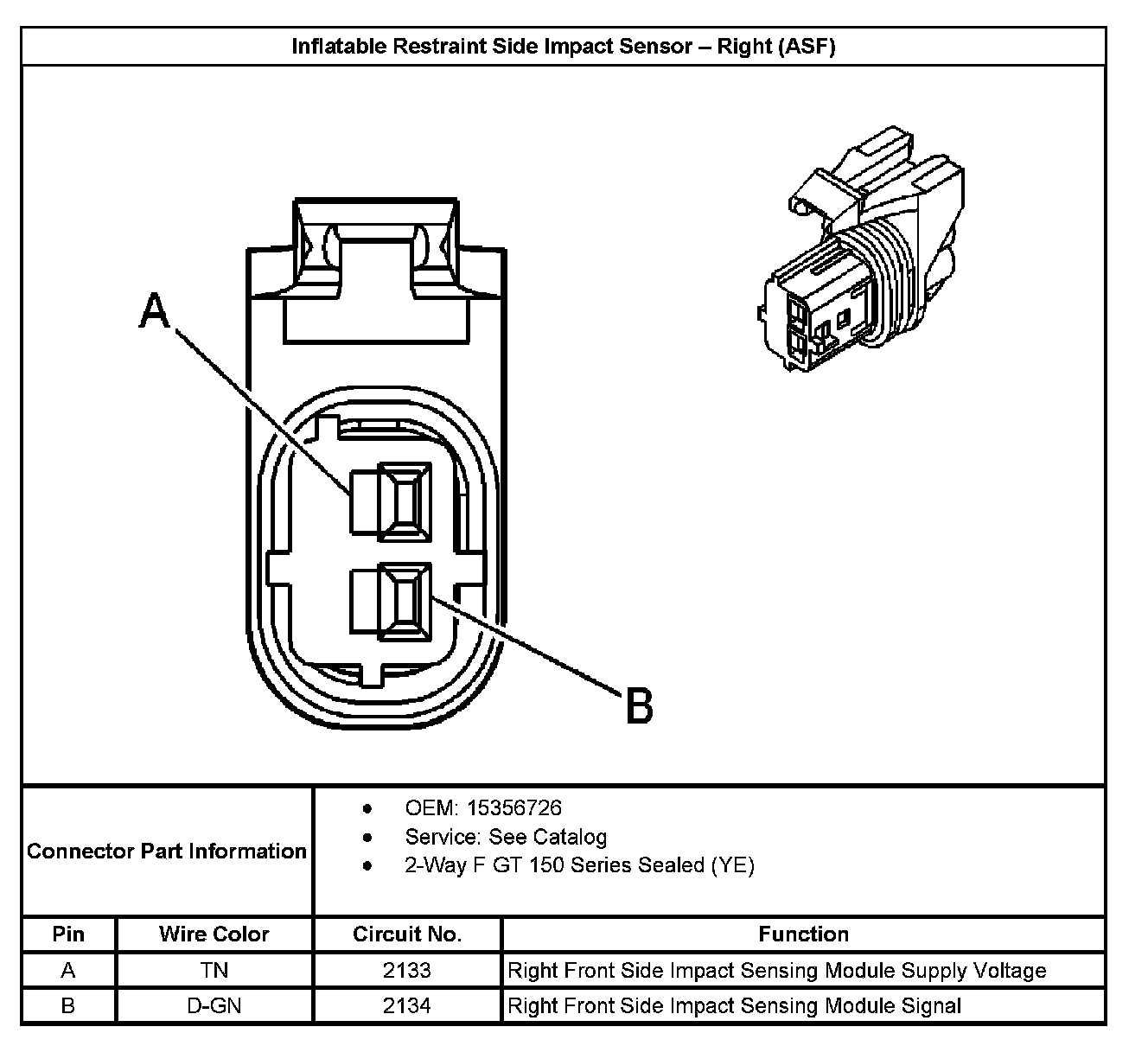

Inflatable Restraint Side Impact Sensor - Right (With RPO Code ASF):
