Steering Gear

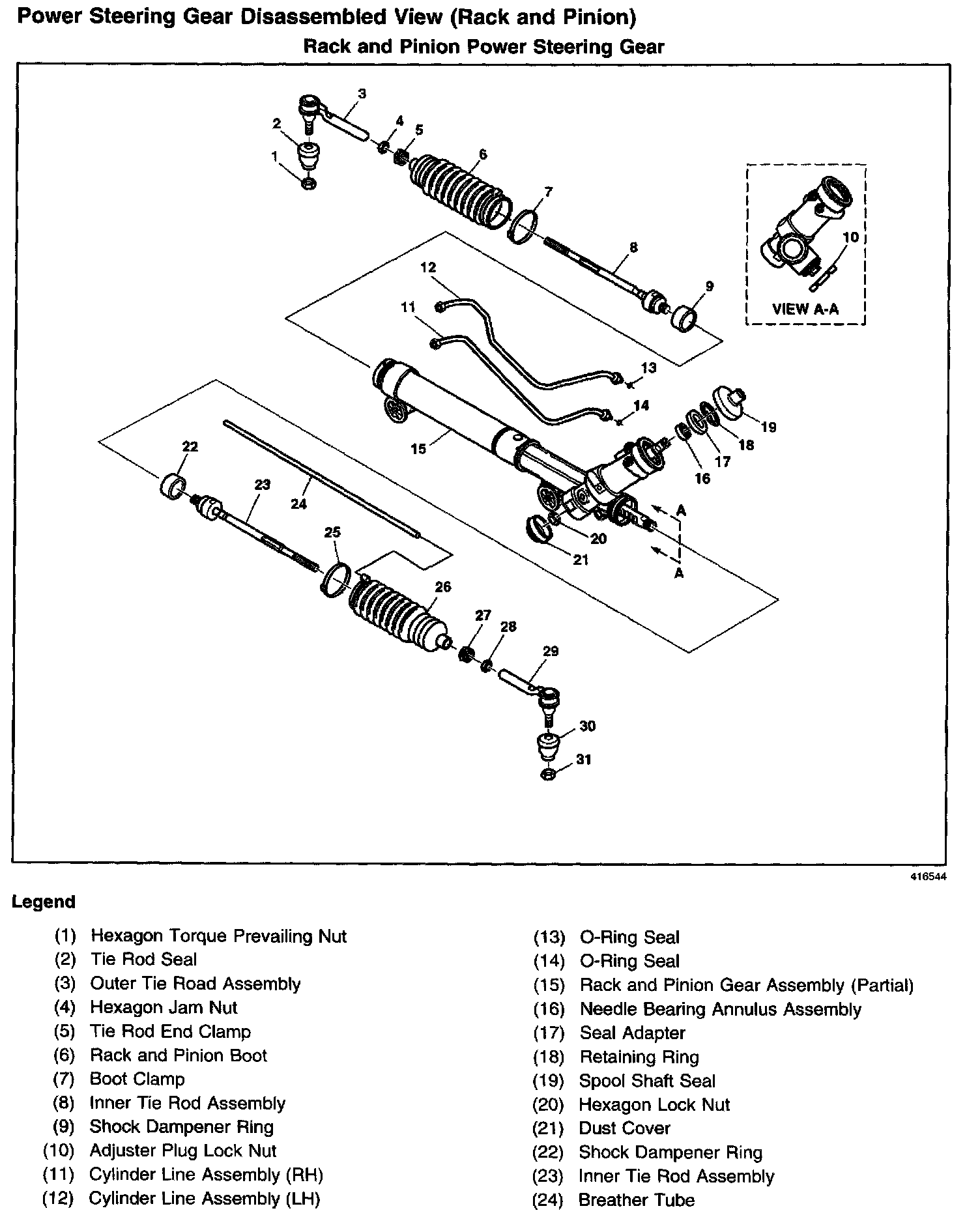

Rack And Pinion Power Steering Gear Part 1:



Rack And Pinion Power Steering Gear Part 2:

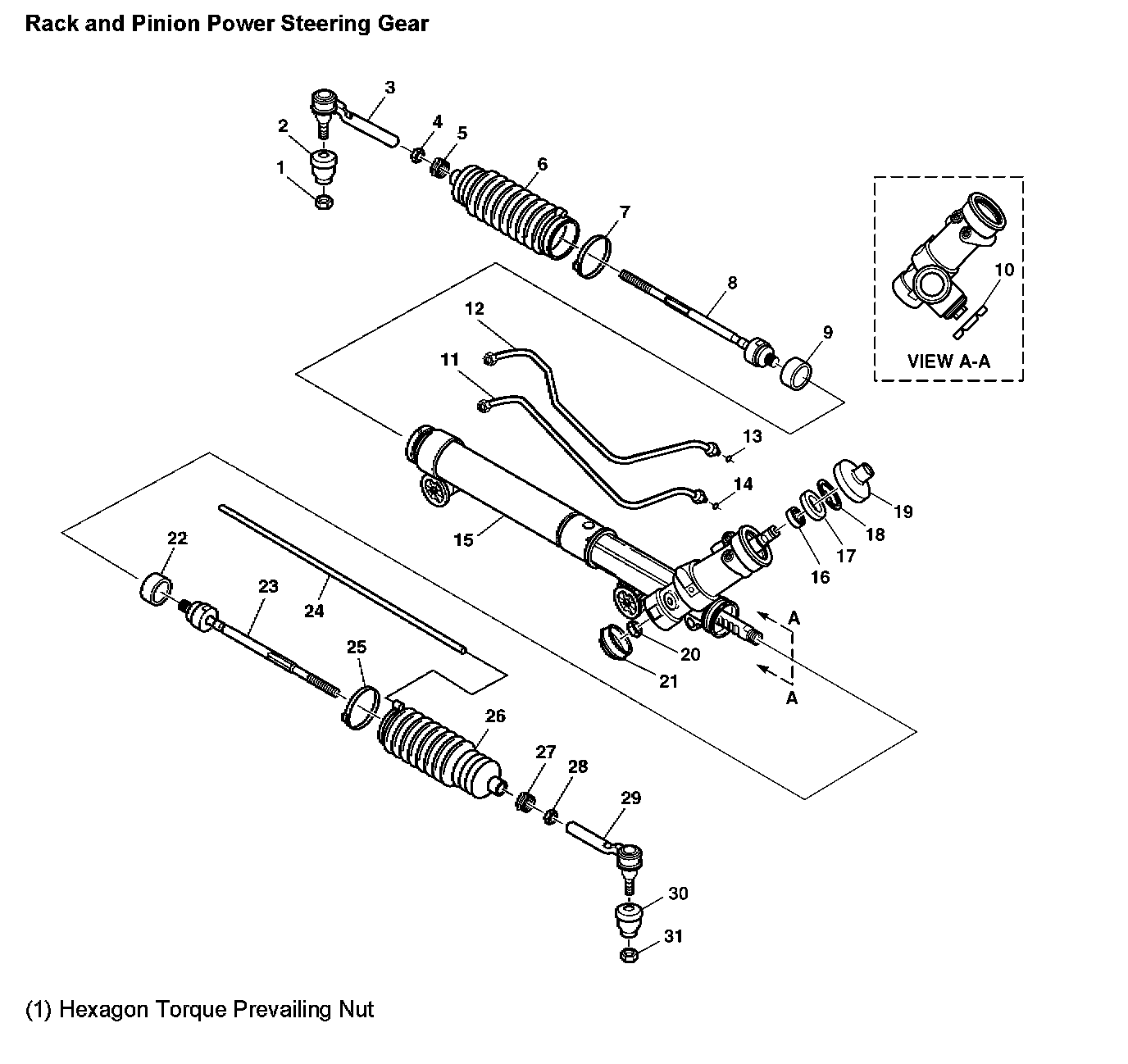

Part 1:

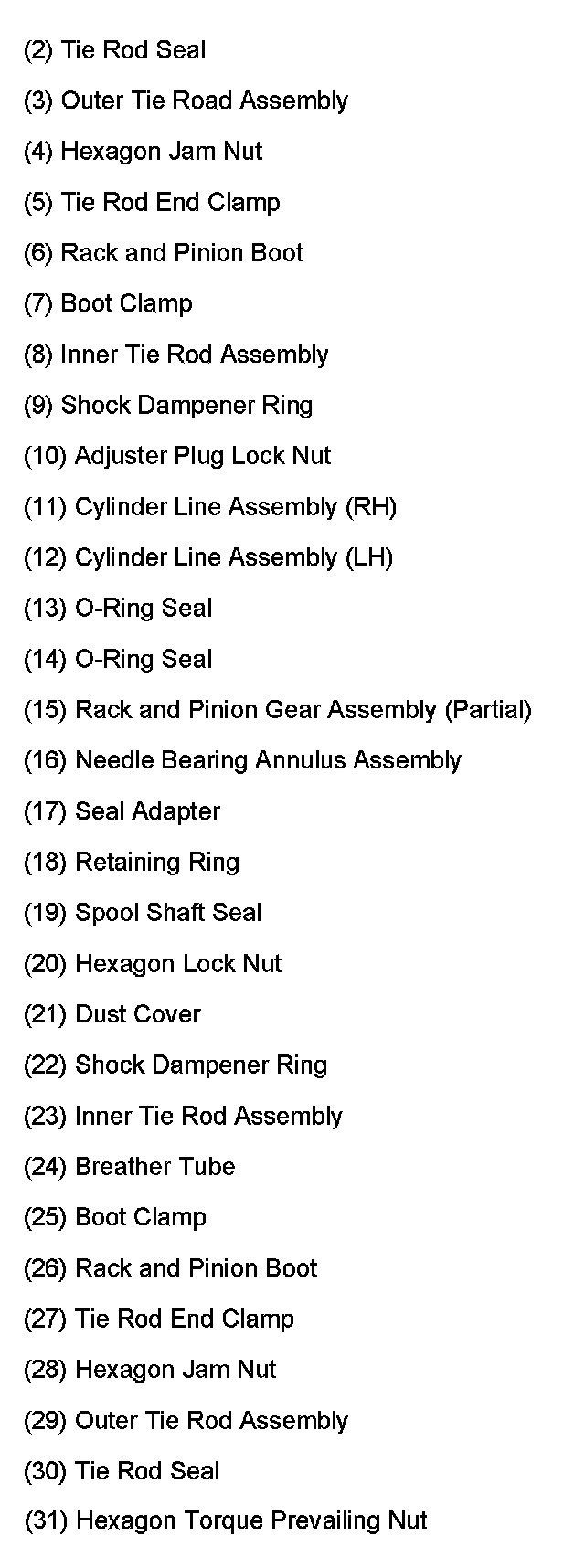

Part 2:
