Home >> Chevrolet >> 2005 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Control Module >> Locations

Windshield Washer Control Module: Locations

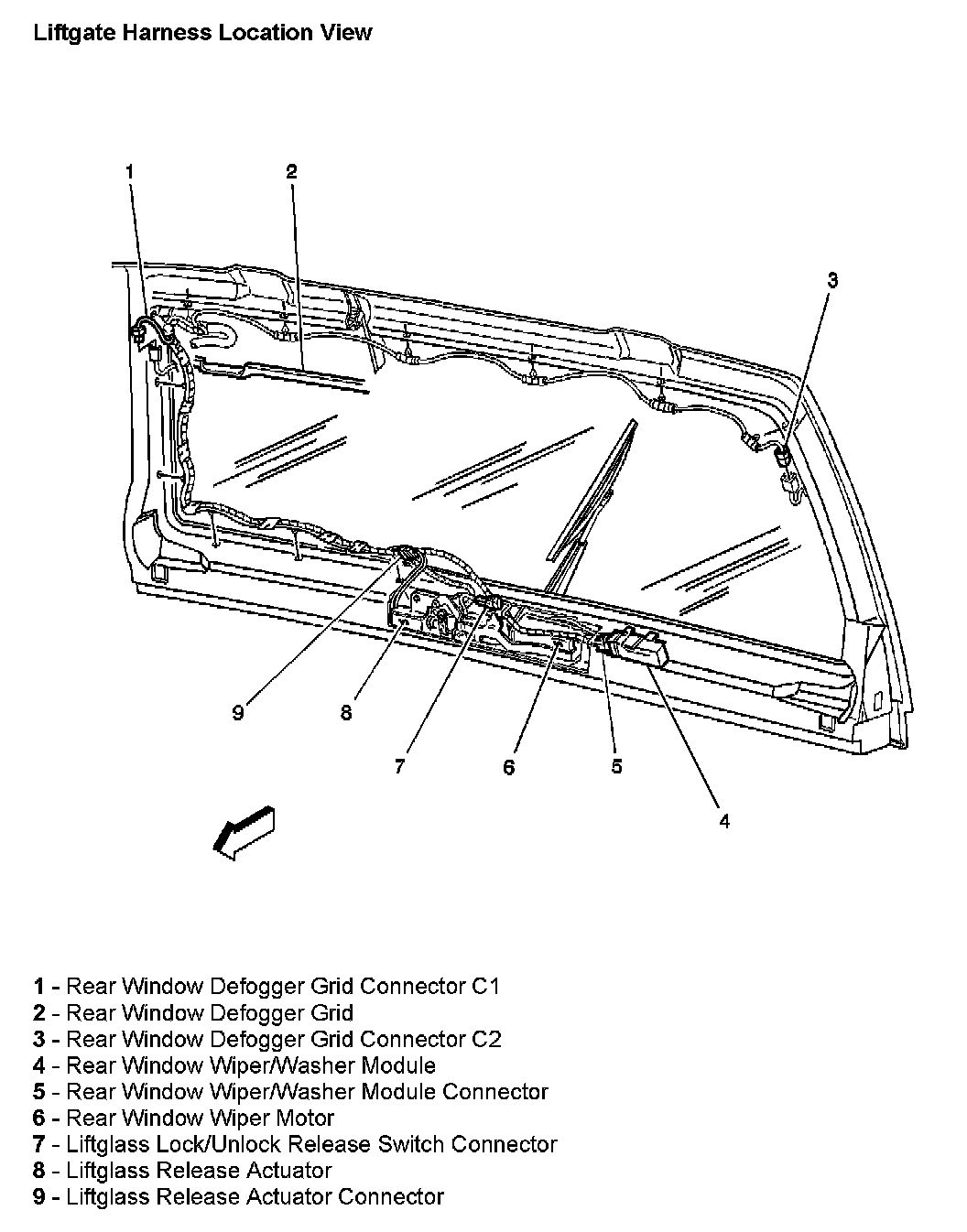

Liftgate Harness Location View:
