Powertrain Control Module (PCM) Location View

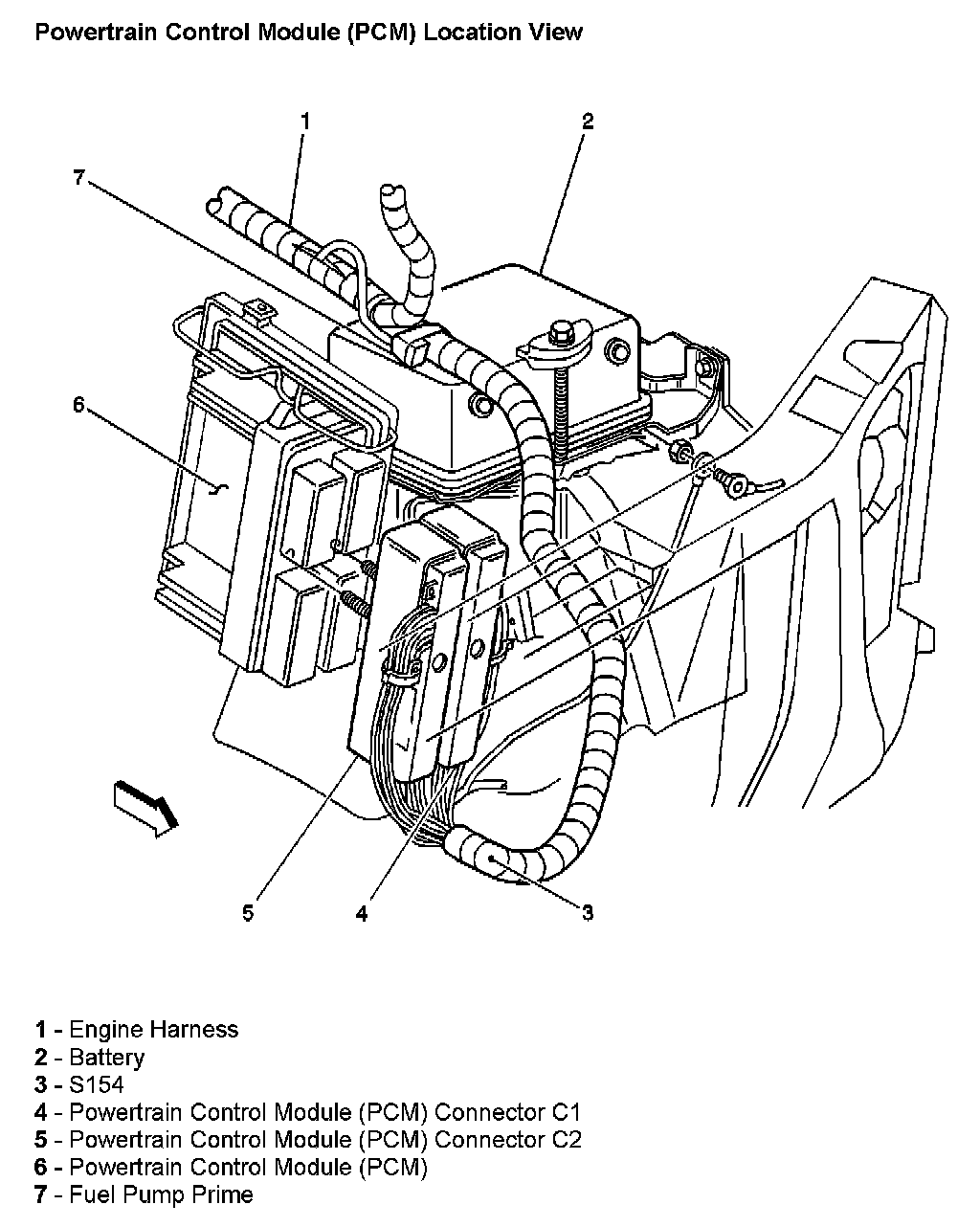

Powertrain Control Module (PCM) Location View:

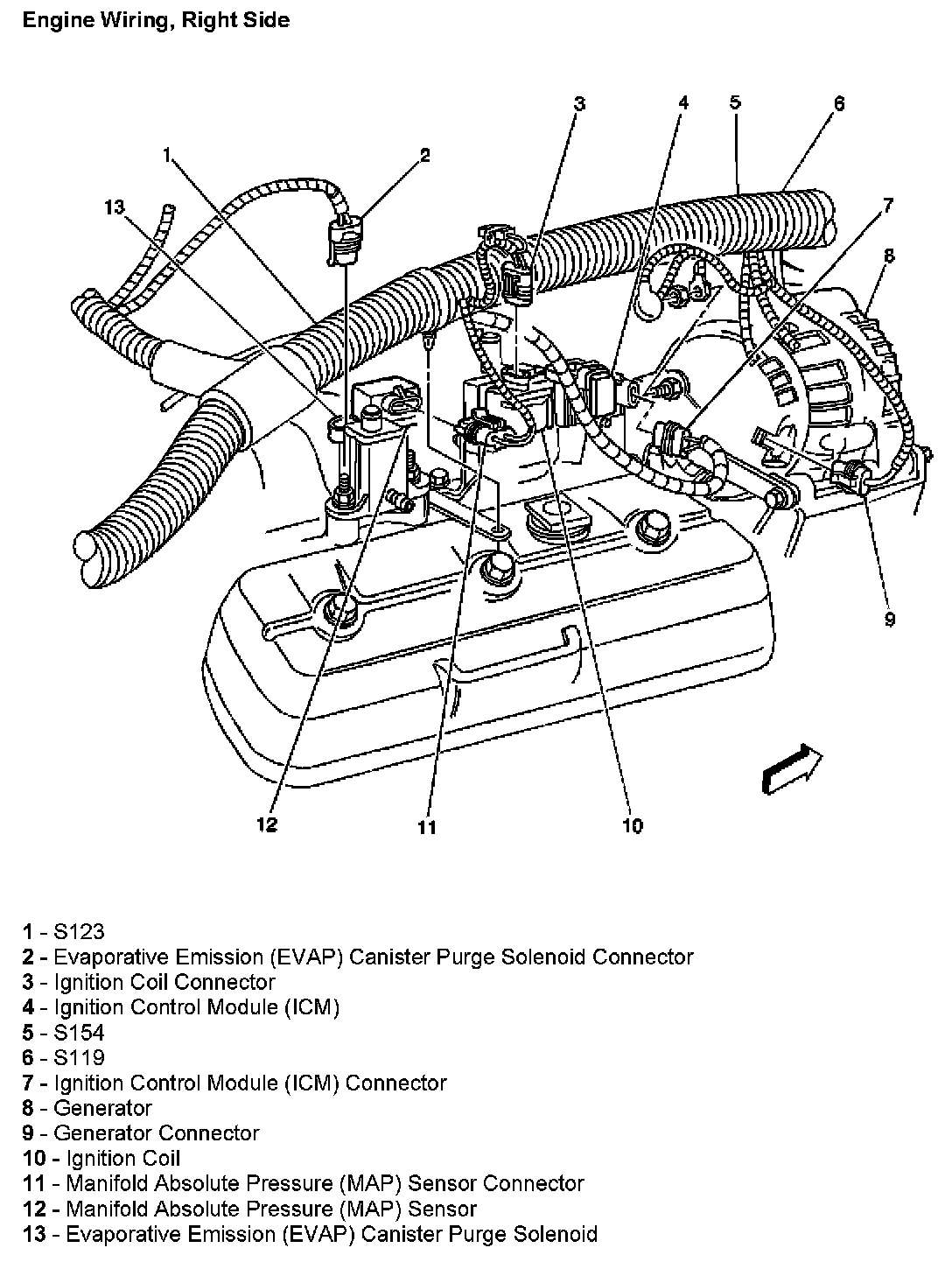

Engine Wiring, Right Side:

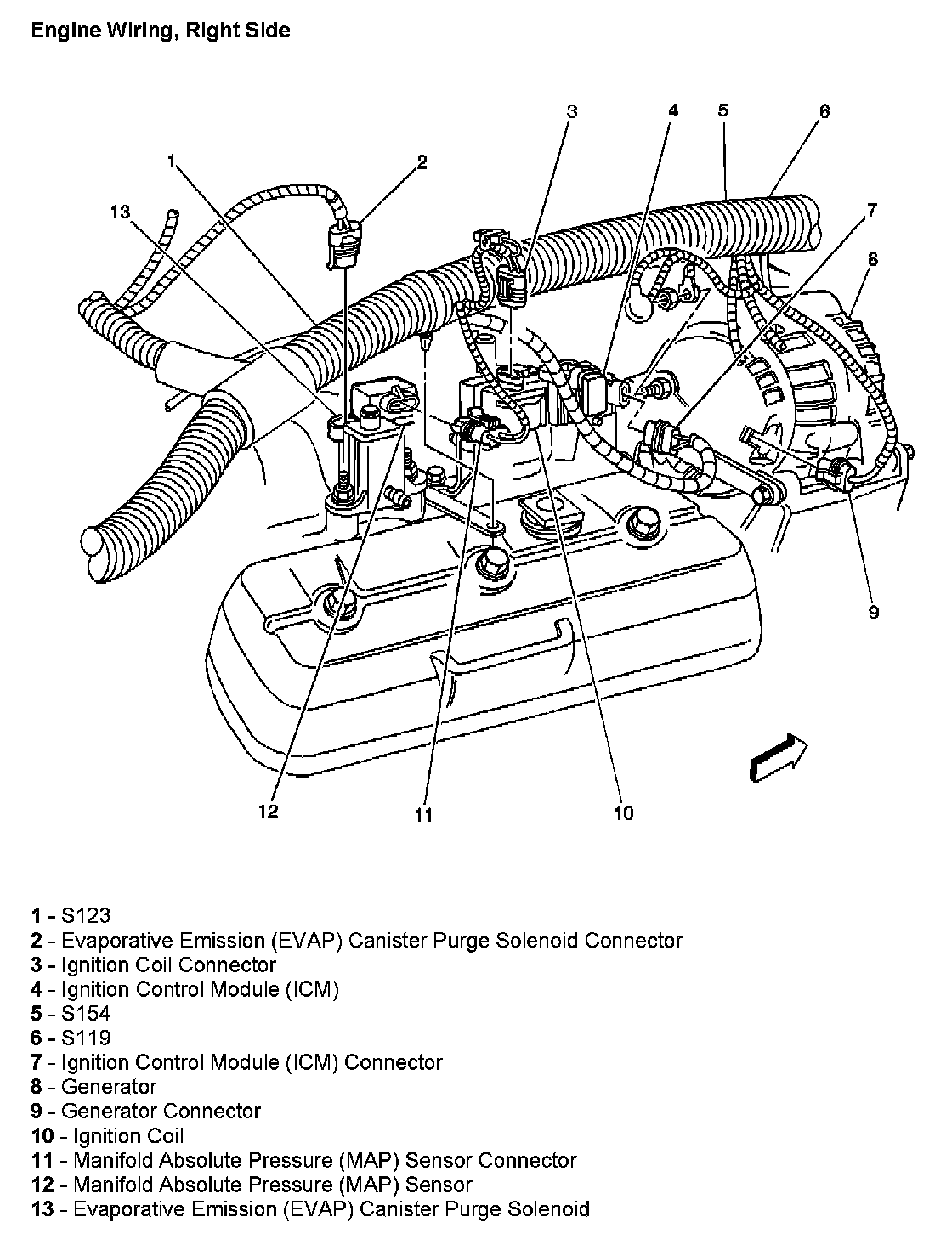

Engine Wiring, Right Side:



Powertrain Control Module (PCM) Location View:

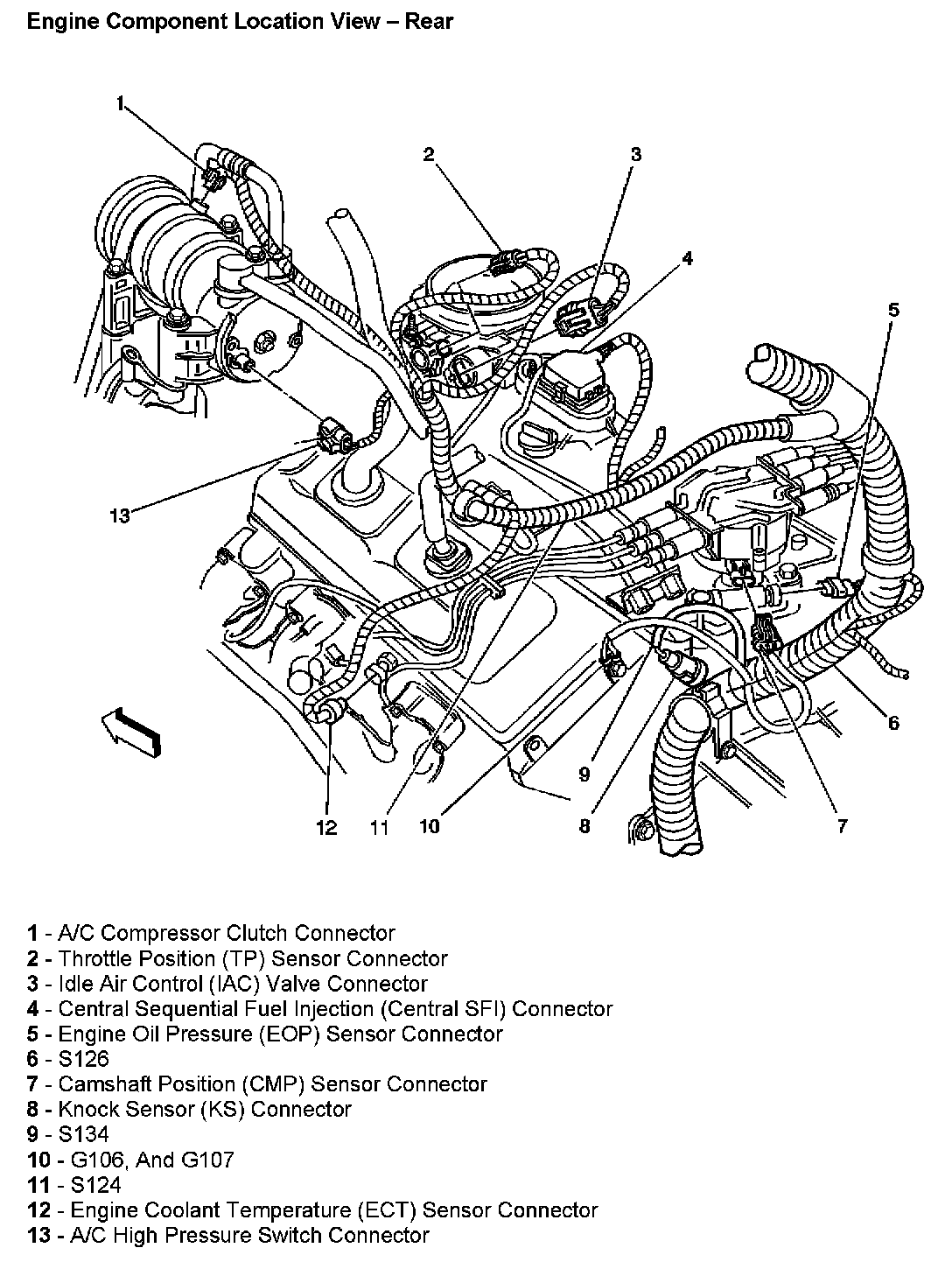

Engine Component Location View - Rear:
