Home >> Chevrolet >> 2005 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C2

Body Control Module (BCM) C2

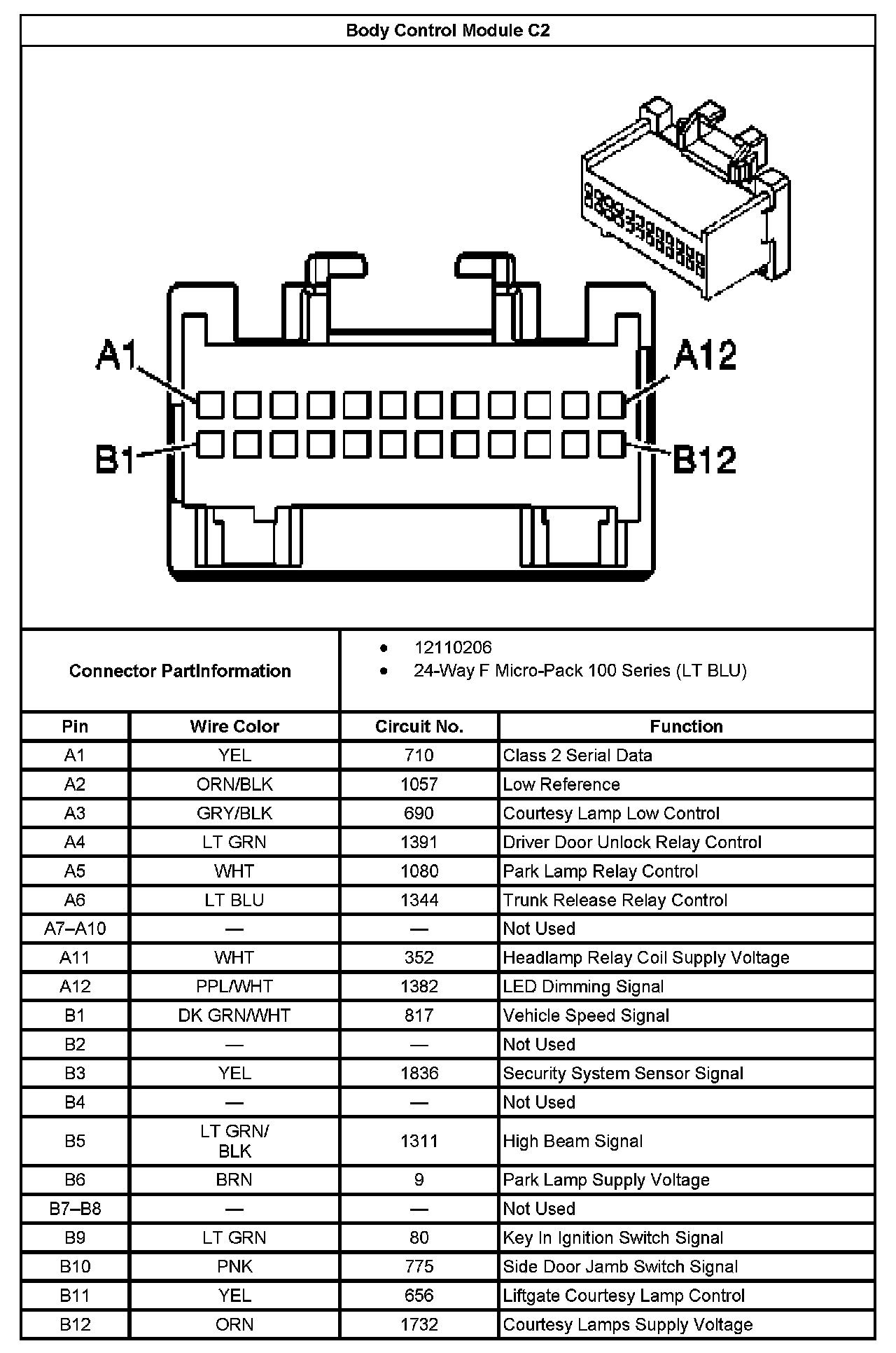

Body Control Module C2:
