Home >> Chevrolet >> 2004 >> Venture FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

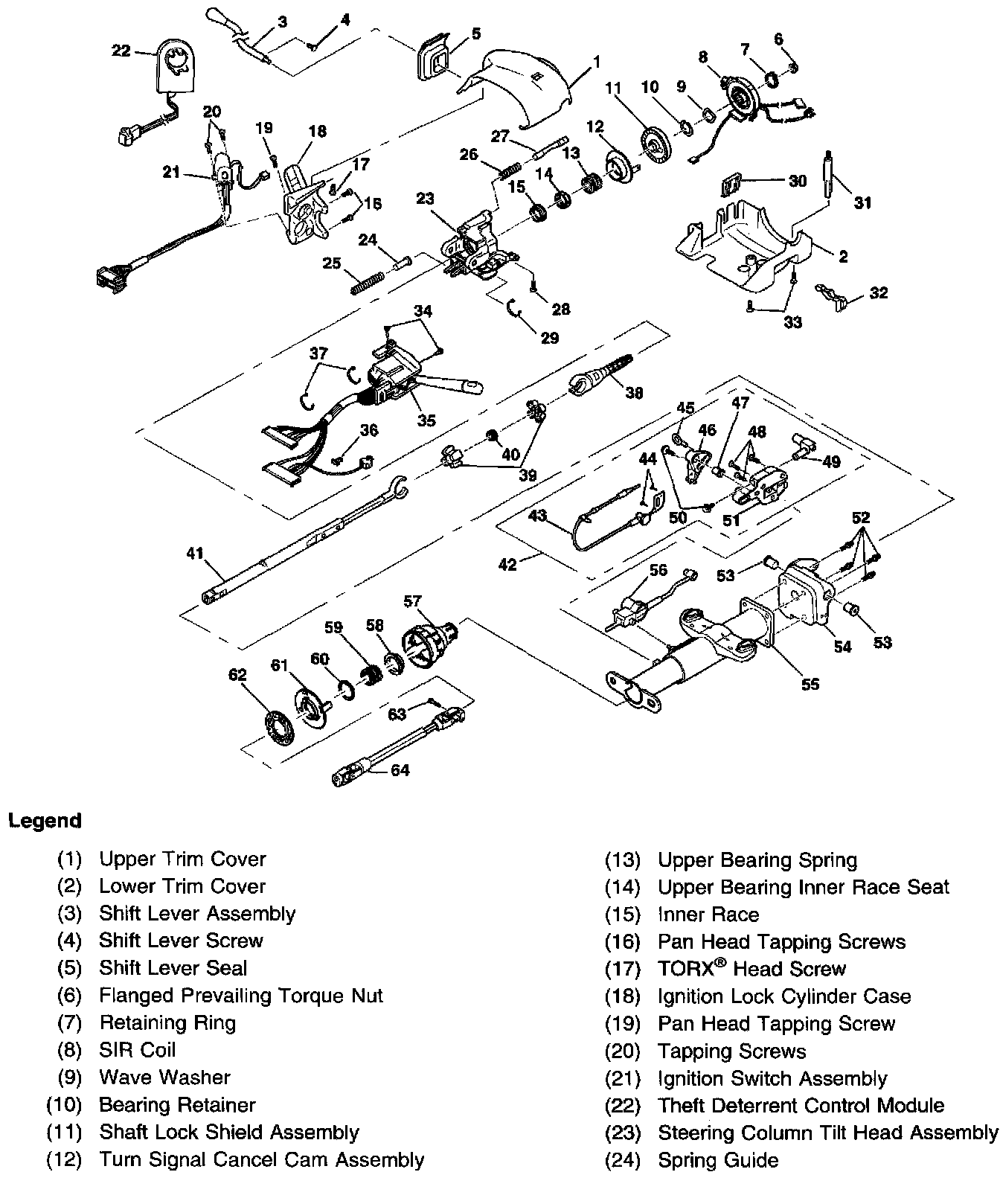

Part 1 Of 2:

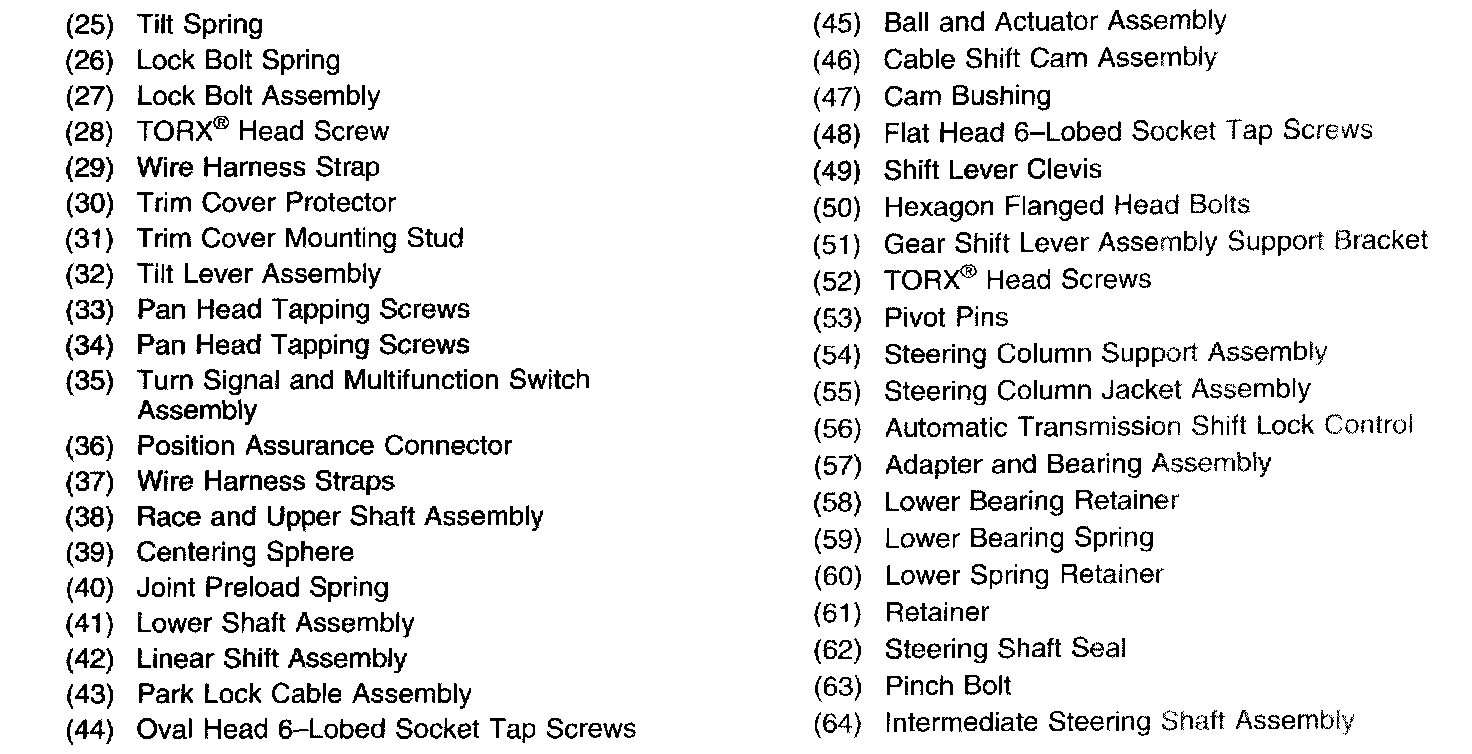

Part 2 Of 2:
