Home >> Chevrolet >> 2004 >> Venture FWD V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Intake Manifold and Components

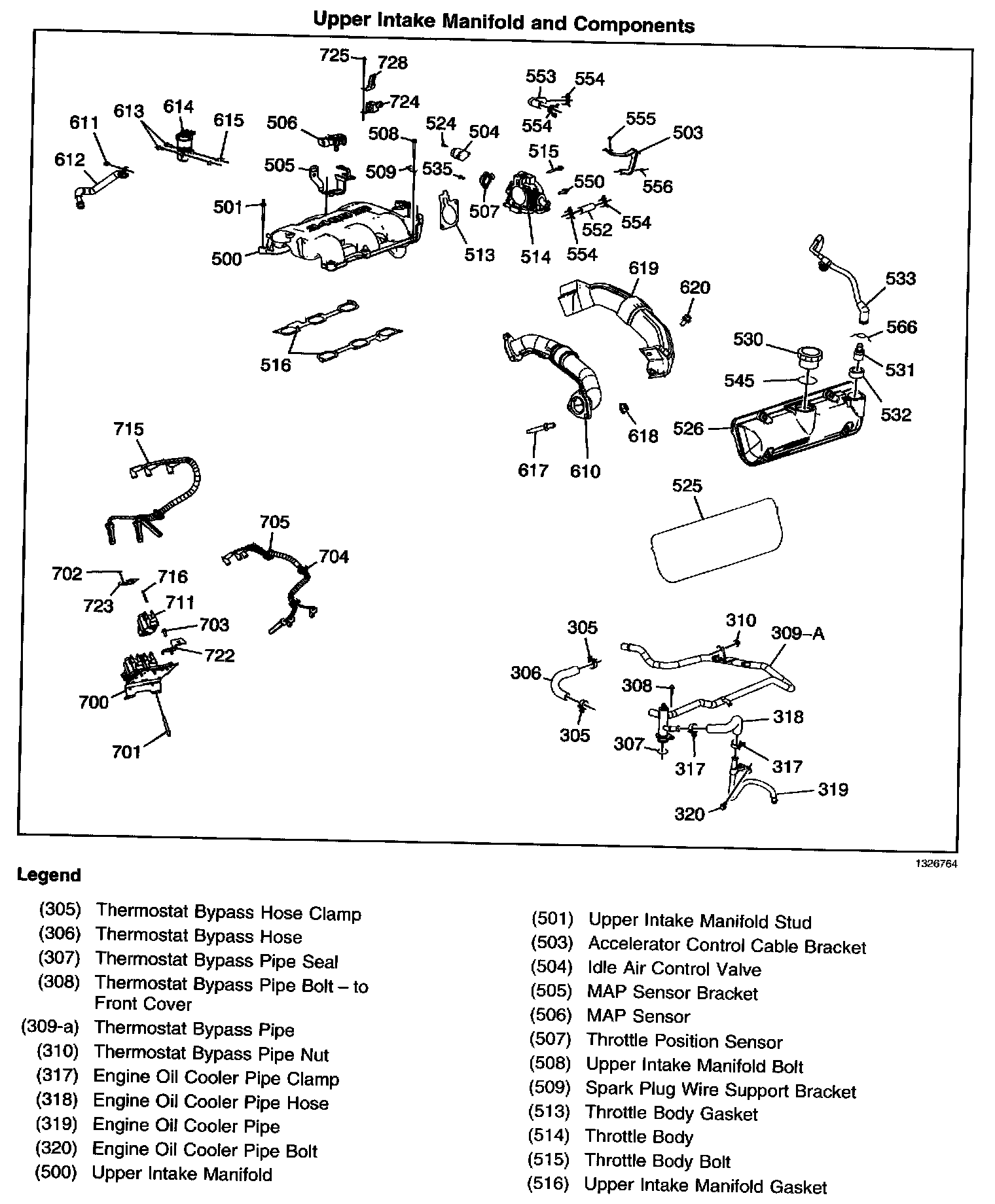

Upper Intake Manifold and Components

Upper Intake Manifold and Components




Part 1 of 2

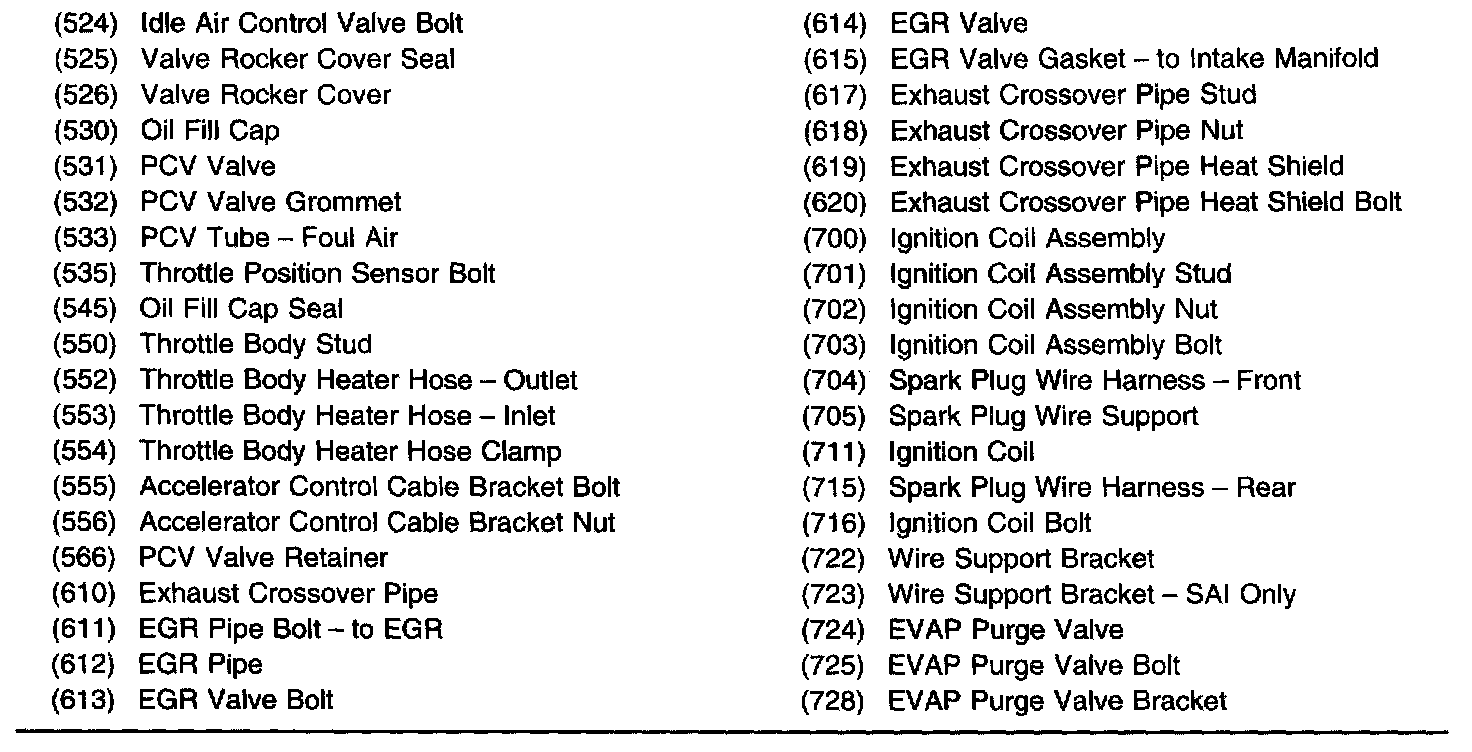

Part 2 of 2
