Automatic Transmission/Transaxle
>>
Case Cover Assembly
Case Cover Assembly

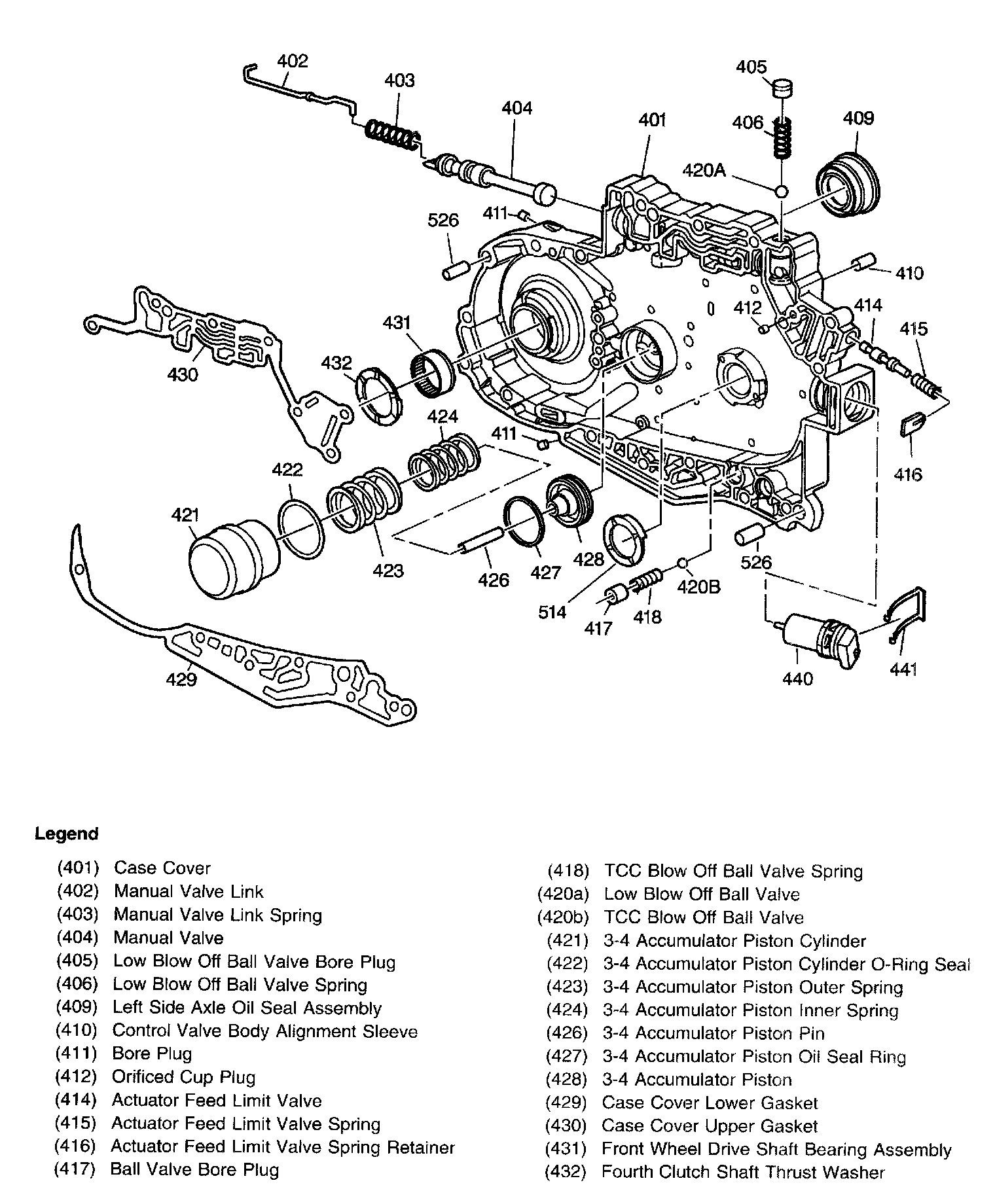

Case Cover Assembly Part 1 OF 2:
Case Cover Assembly Part 2 OF 2:
