Scan Tool Data List - HVAC Control Module

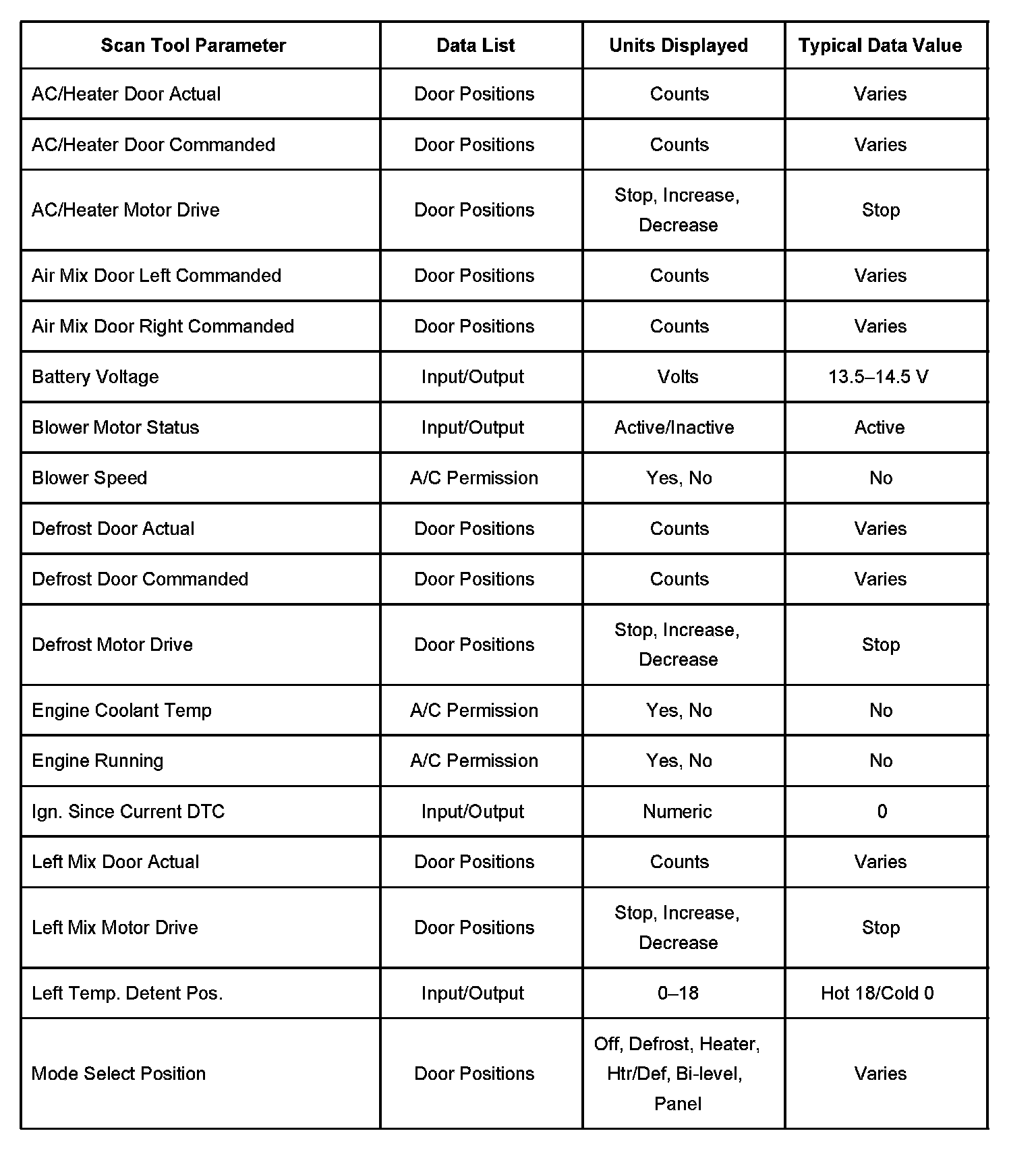

HVAC Control Modules Scan Tool Data List Part 1:



HVAC Control Modules Scan Tool Data List Part 2:



HVAC Control Modules Scan Tool Data List Part 3:
