Home >> Chevrolet >> 2004 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Engine Components

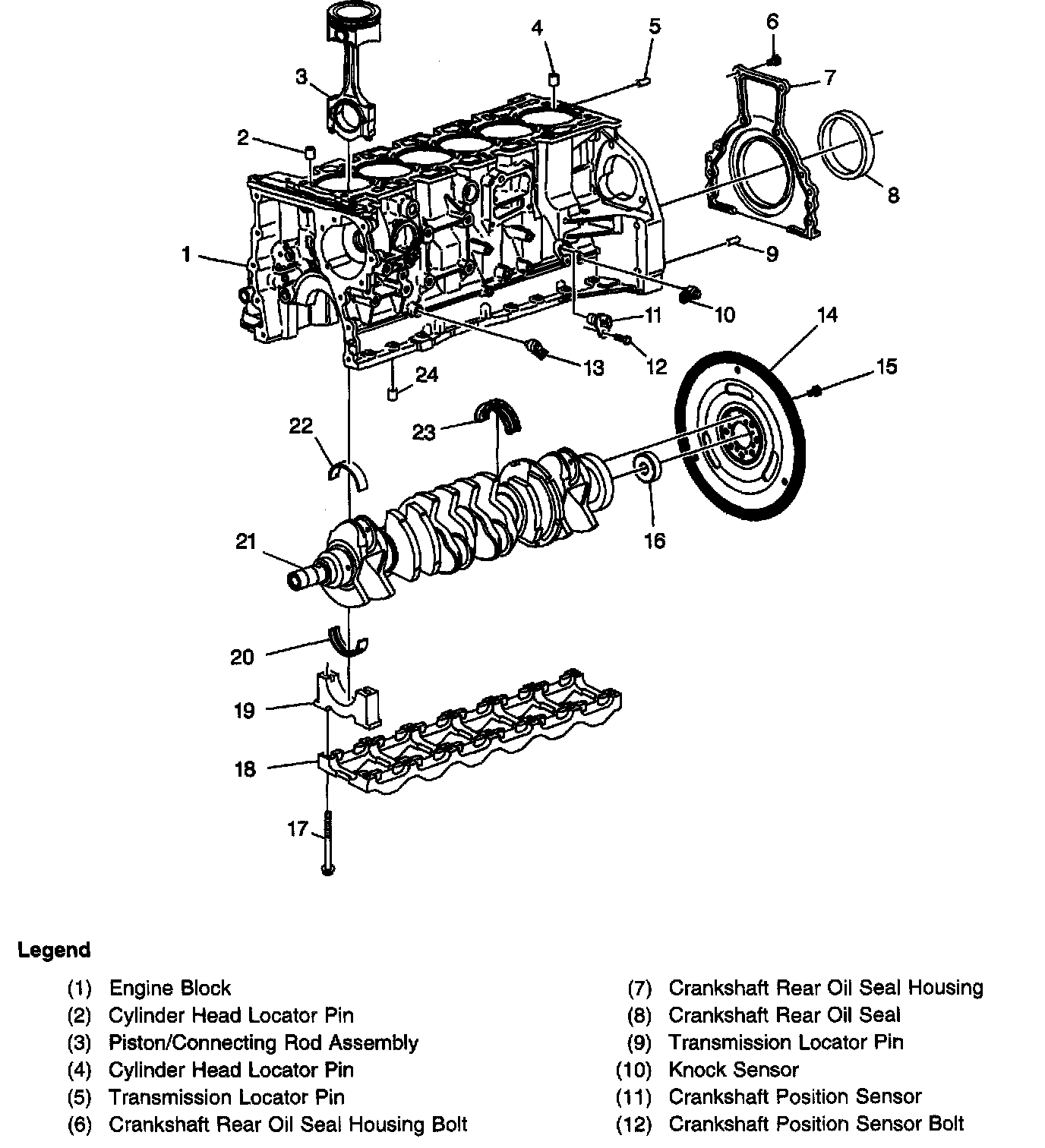

Lower Engine Components

Lower Engine Components





Part 1 of 2





Part 2 of 2
