Home >> Chevrolet >> 2004 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Components

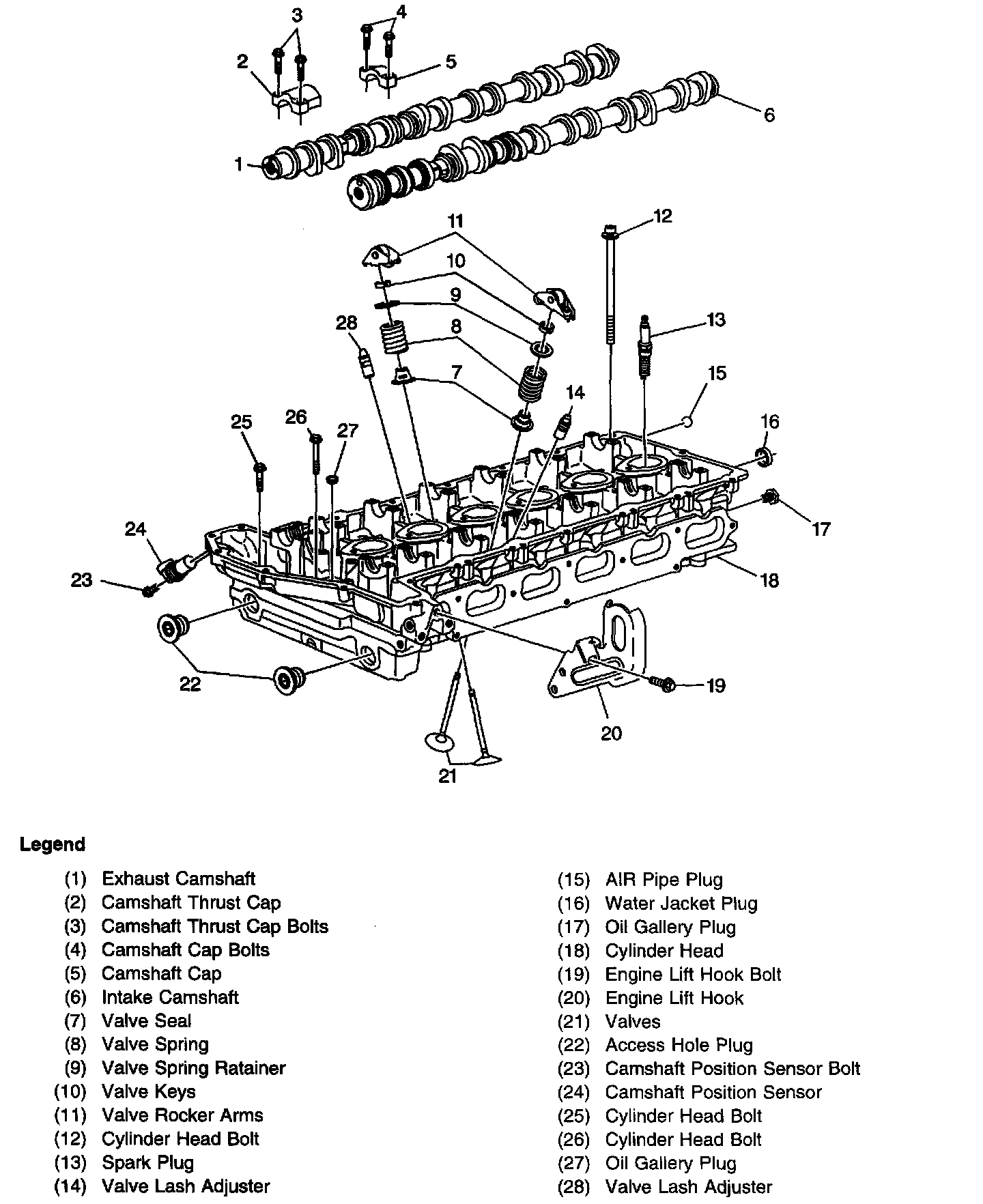

Cylinder Head Components
