Home >> Chevrolet >> 2004 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) C1

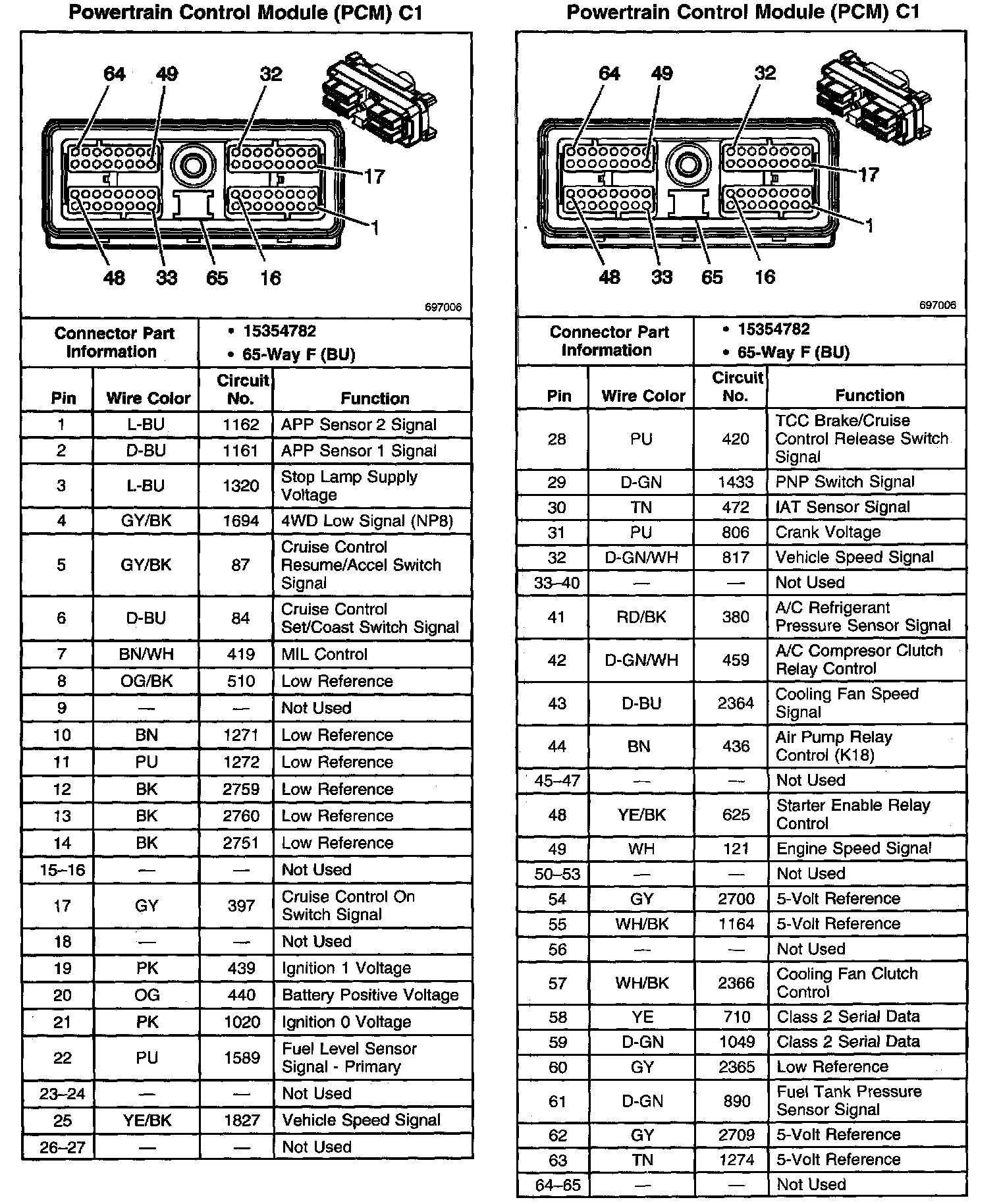

Powertrain Control Module (PCM) C1

Powertrain Control Module (PCM) C1:
