Home >> Chevrolet >> 2004 >> Tracker 2WD V6-2.5L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Engine Controls Diagram 5

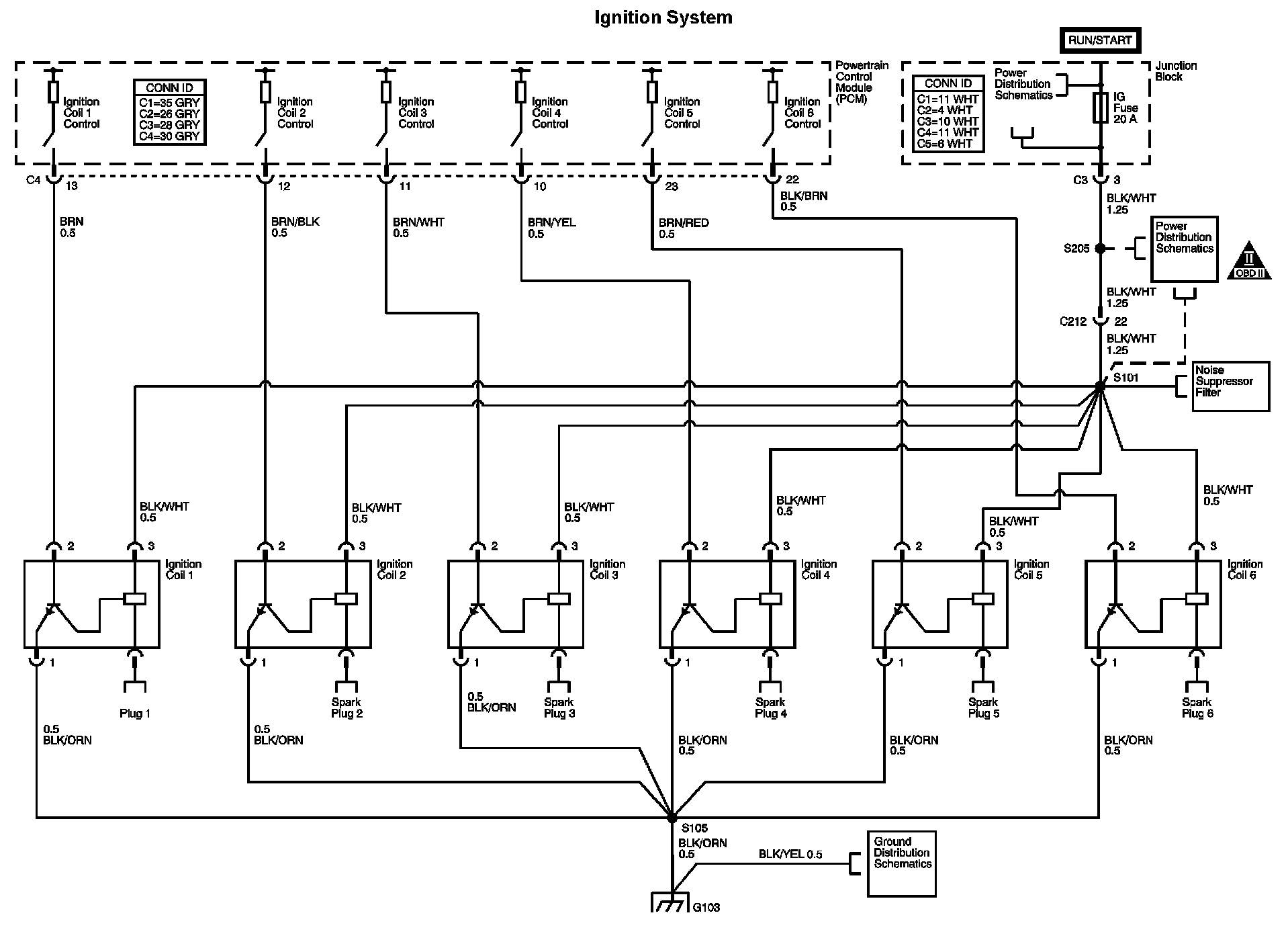

Engine Controls Diagram 5

Engine Controls Diagram 5:






Next Diagram Engine Controls Diagram 6

Previous Diagram Engine Controls Diagram 4
