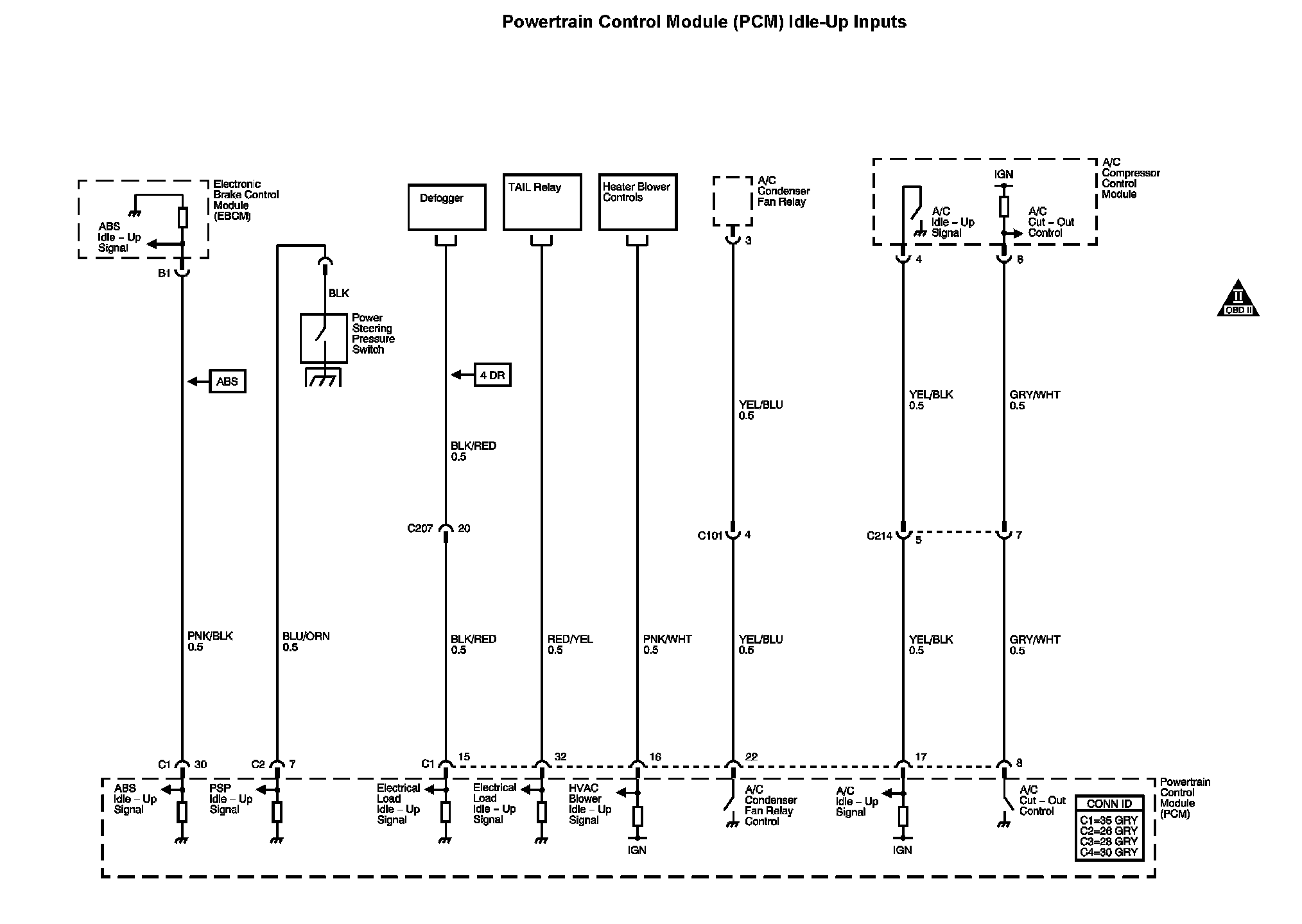

Engine Controls Diagram 16

Engine Controls Diagram 16:






Previous Diagram Engine Controls Diagram 15
