Engine Controls Diagram 10
Engine Controls Diagram 10

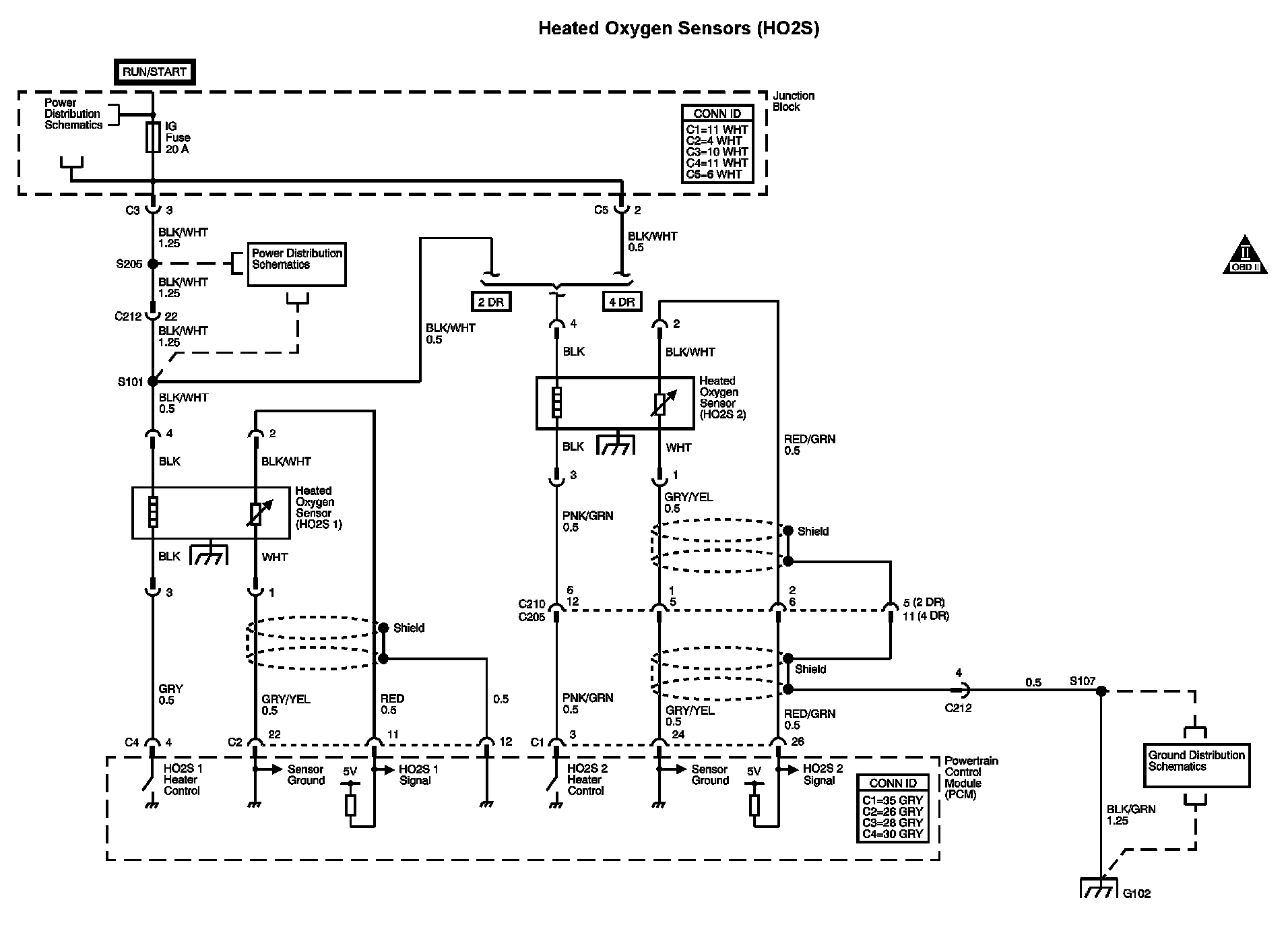

Engine Controls Diagram 10:
Next Diagram
Engine Controls Diagram 11
Previous Diagram
Engine Controls Diagram 9
