Accelerator Pedal Position Sensor: Diagrams

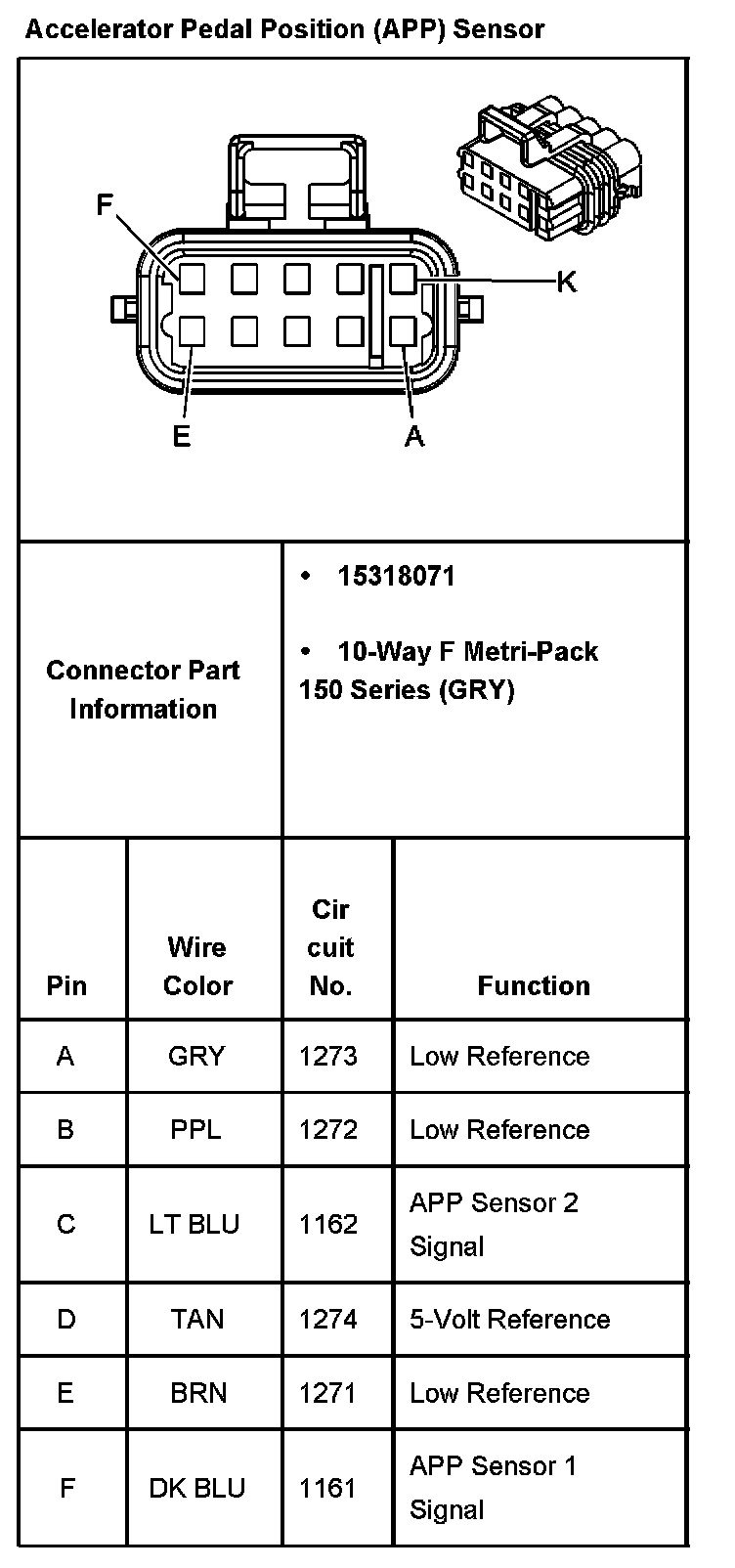

Accelerator Pedal Position (APP) Sensor Part 1:

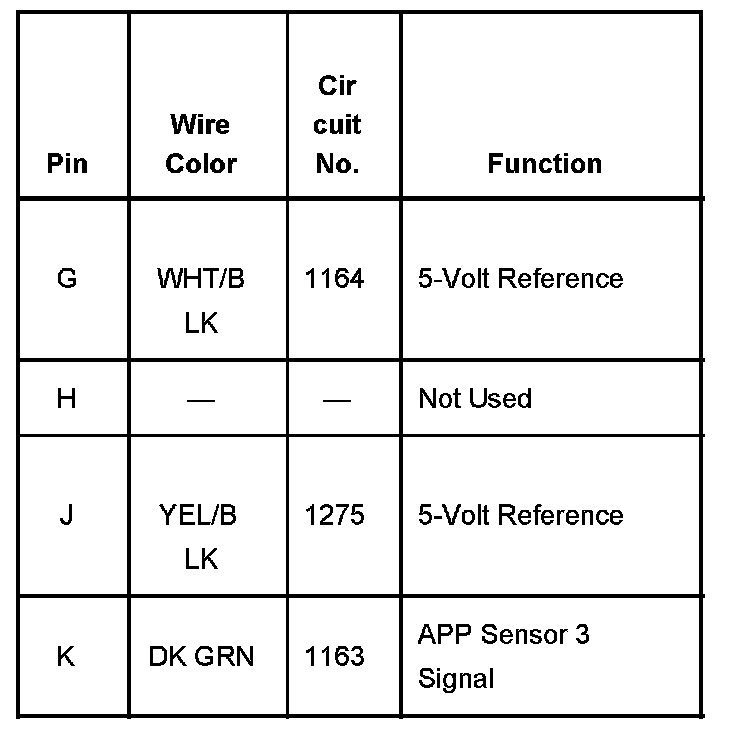

Accelerator Pedal Position (APP) Sensor Part 2:
