Home >> Chevrolet >> 2004 >> Silverado SS AWD V8-6.0L VIN N >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

Power Seat Control Module: Locations

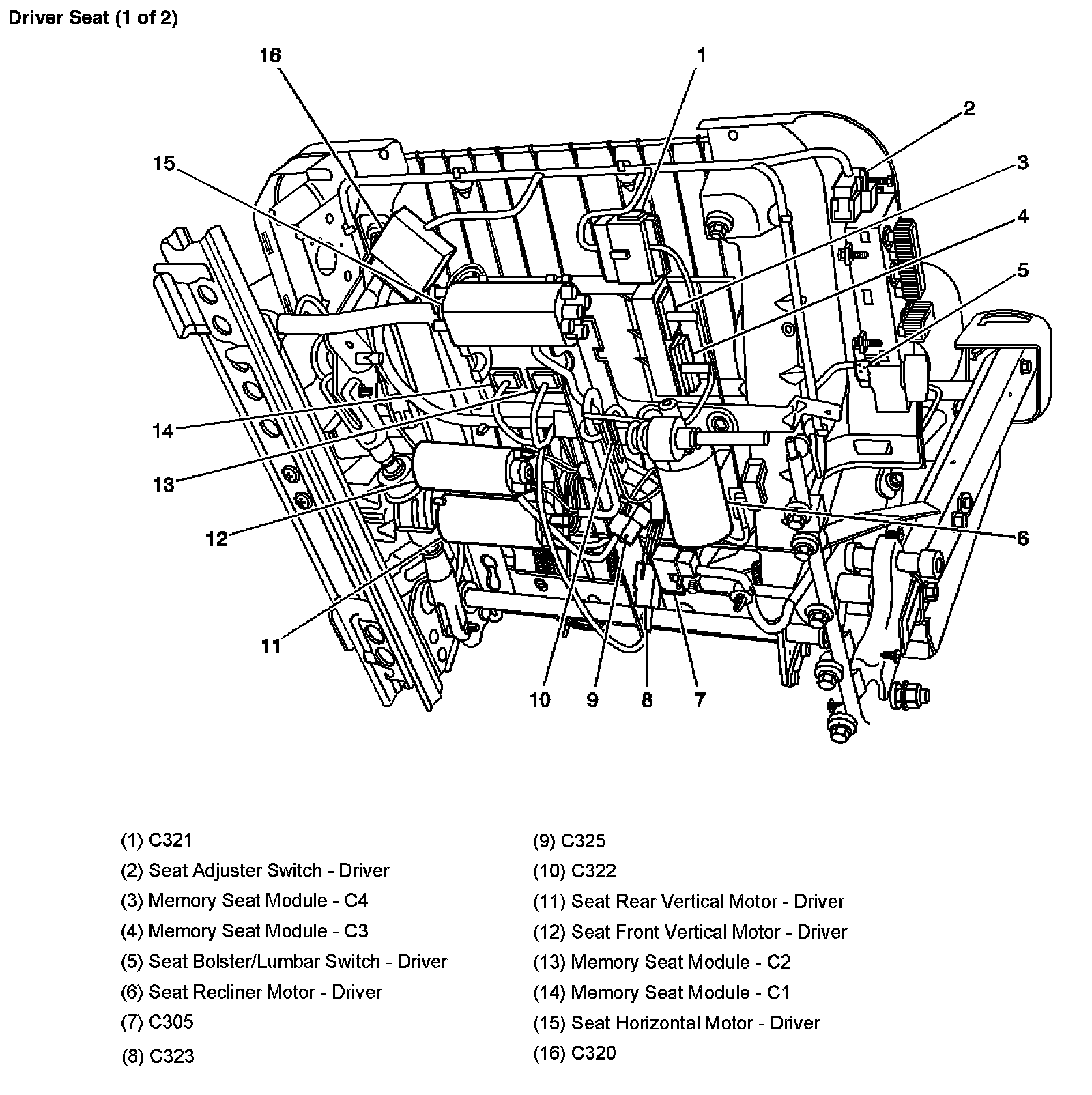

Driver Seat (1 Of 2):

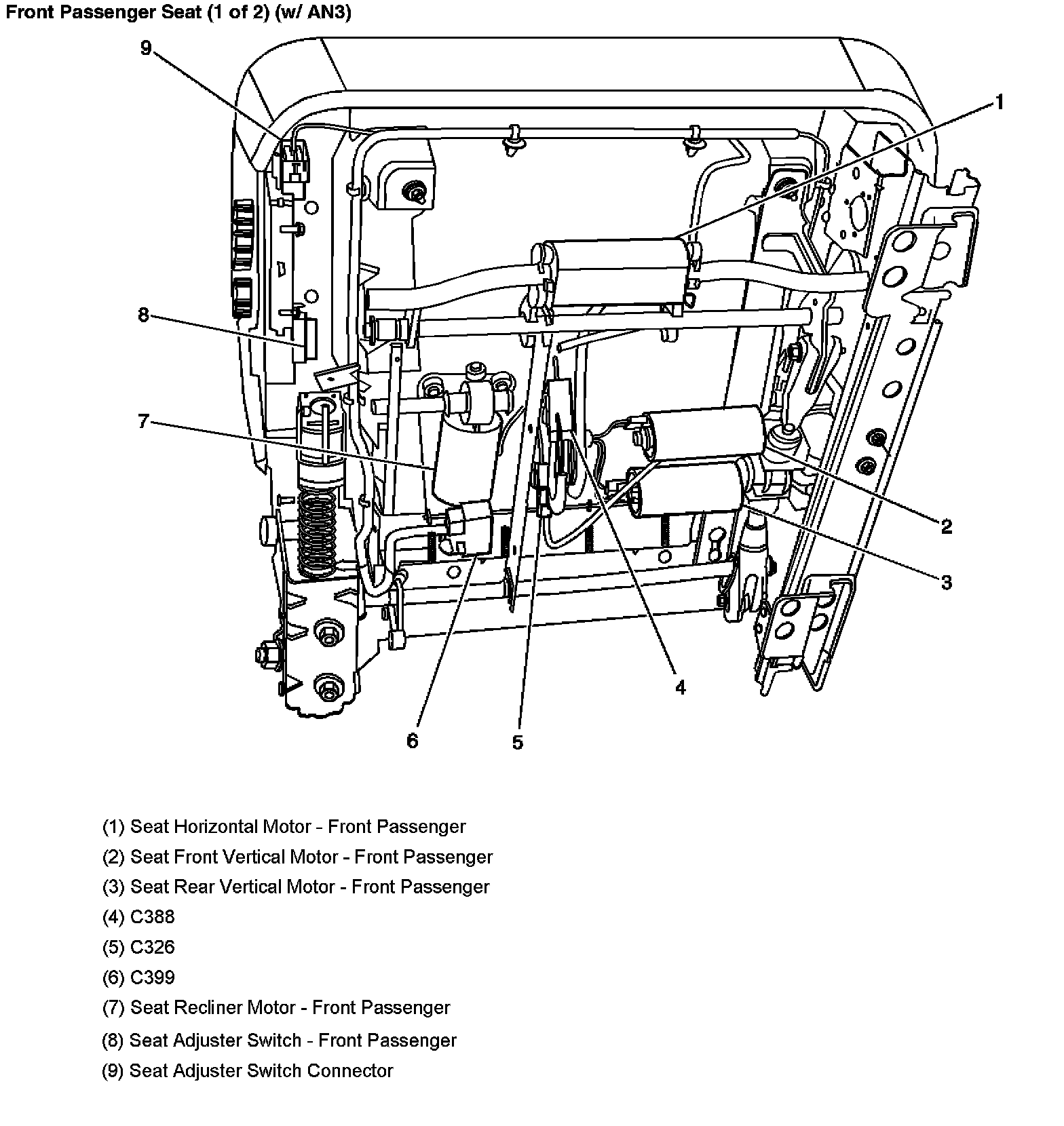

Front Passenger Seat (1 Of 2) (With RPO Code AN3):
