Home
>>
Chevrolet
>>
2004
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System

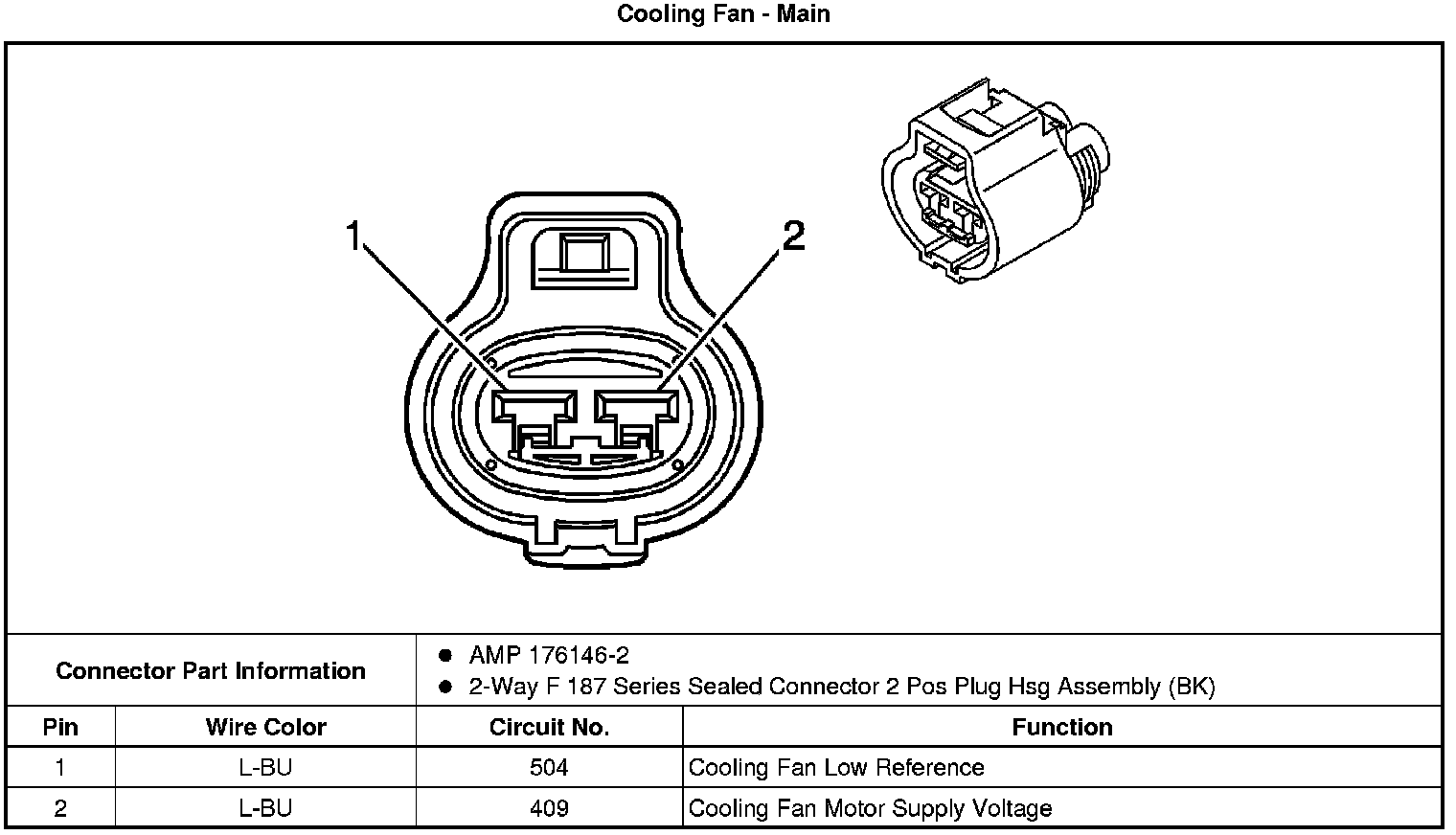

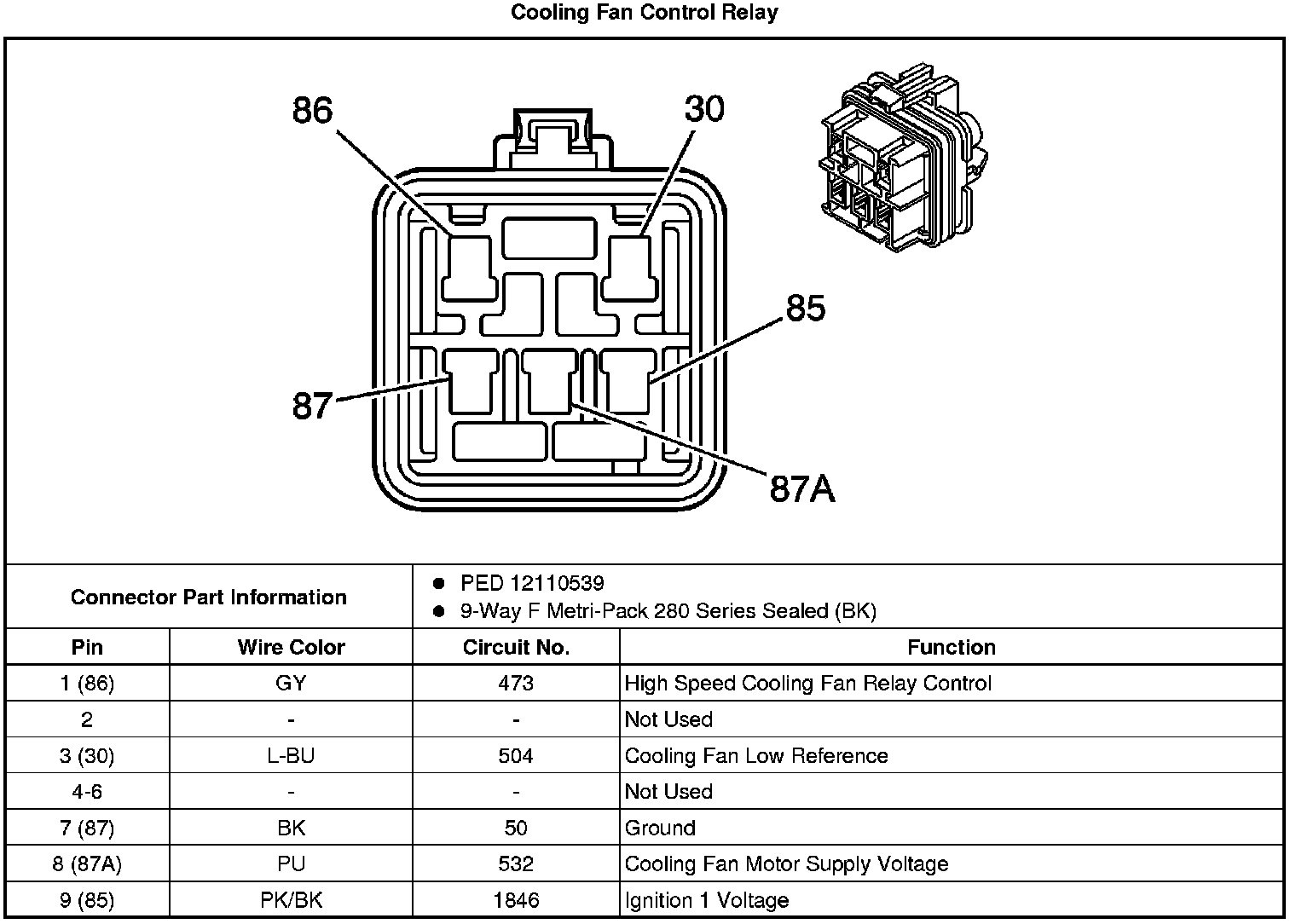

Connector End Views
