Home >> Chevrolet >> 2004 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Interlock, A/T

Shift Interlock, A/T

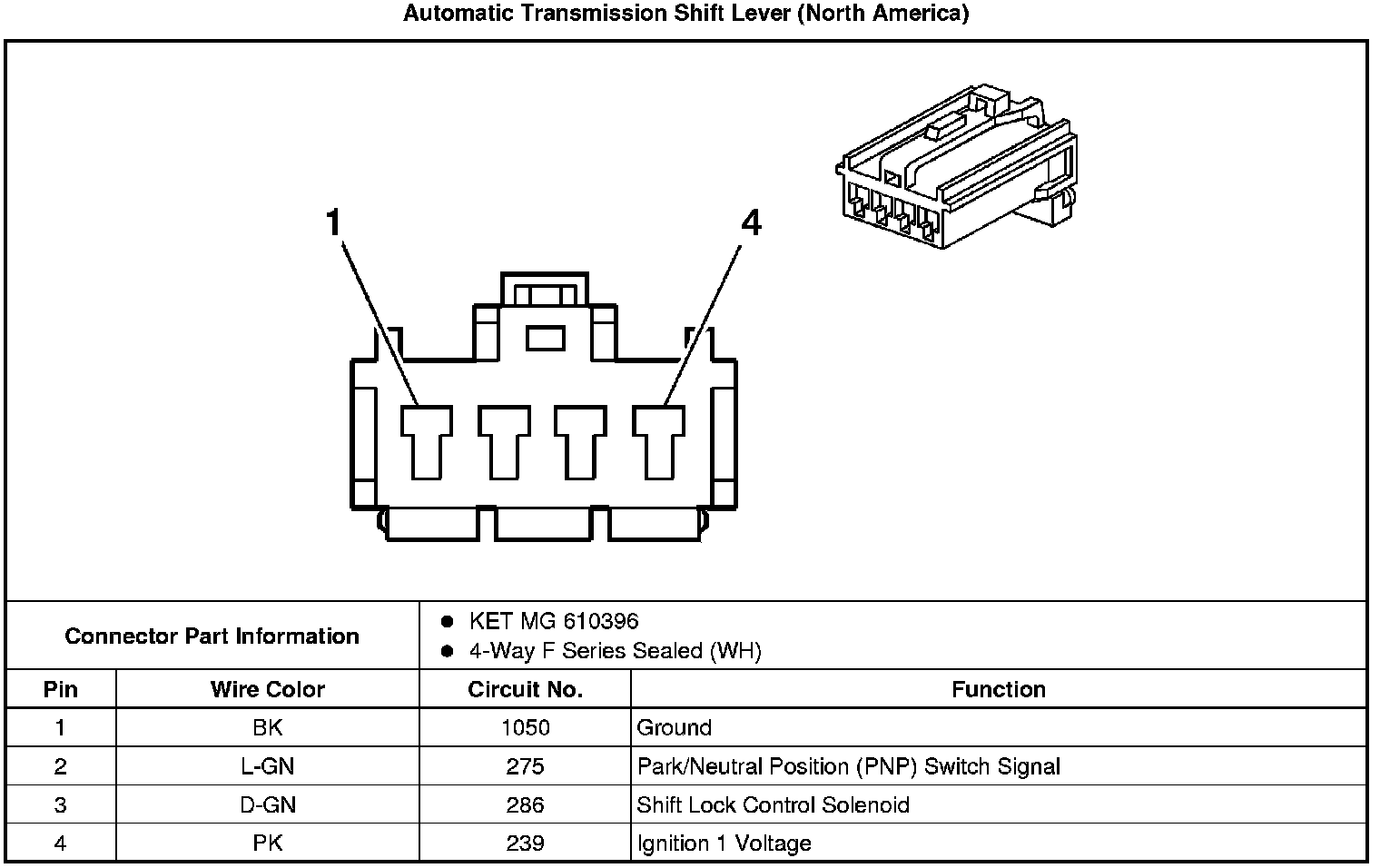

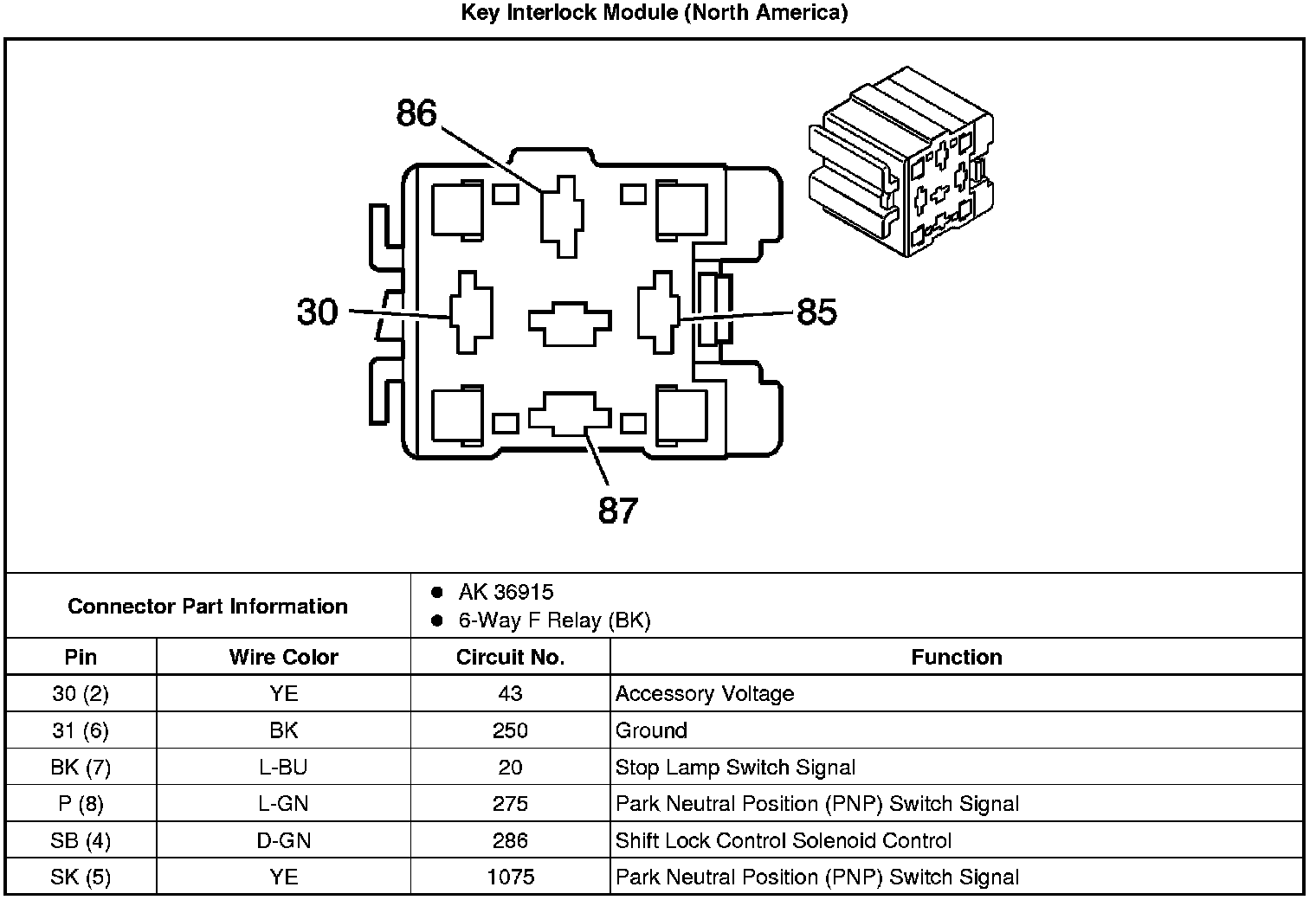

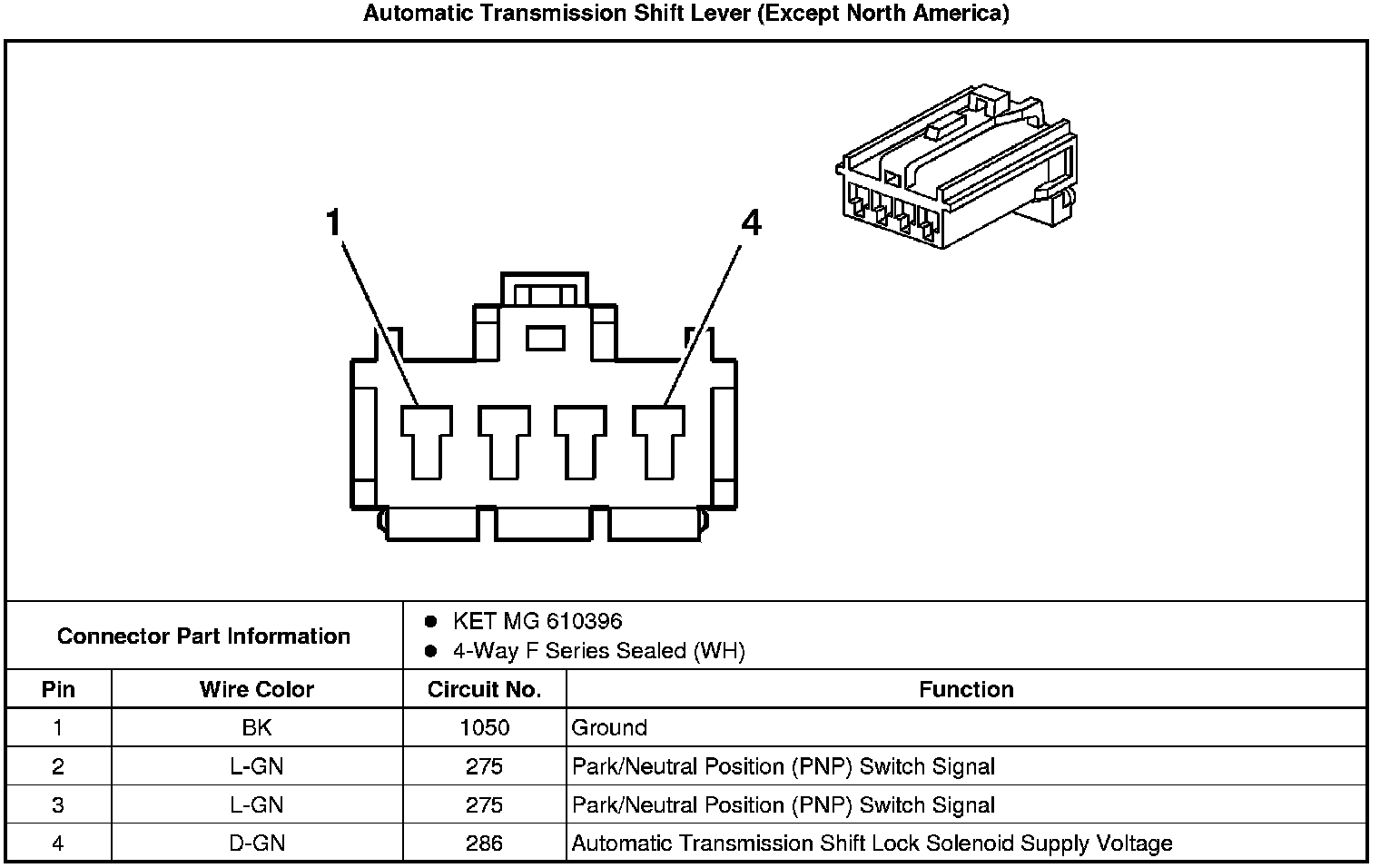

Shift Lock Control Connector End Views
