Thermo Element Replacement
Thermo Element ReplacementTools Required
^ J 34094-A Thermo Element Height Gage
Removal Procedure
1. Raise and support the vehicle.
2. Remove the oil pan.

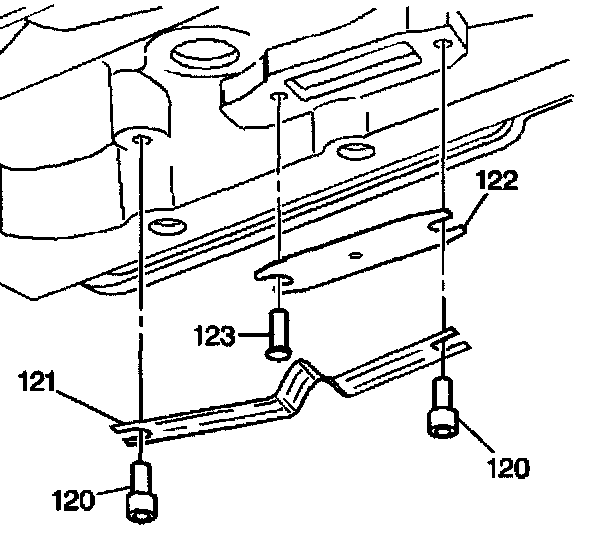

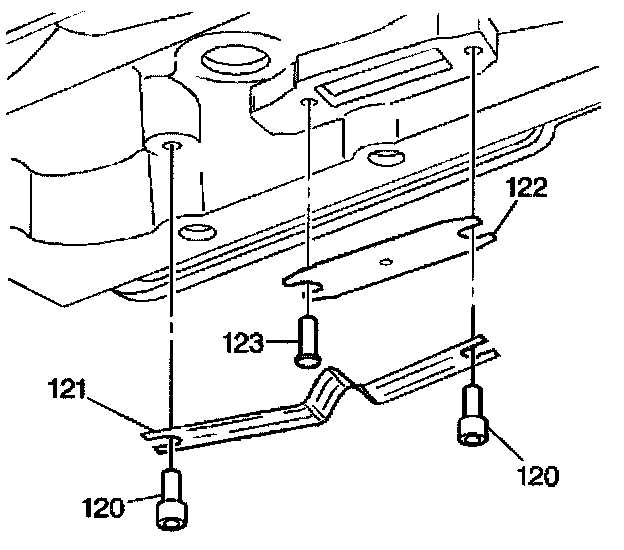

3. Remove the thermo element pins (120, 123) and the washers.
4. Remove the thermo element (121) and the thermo element plate (122).
Installation Procedure

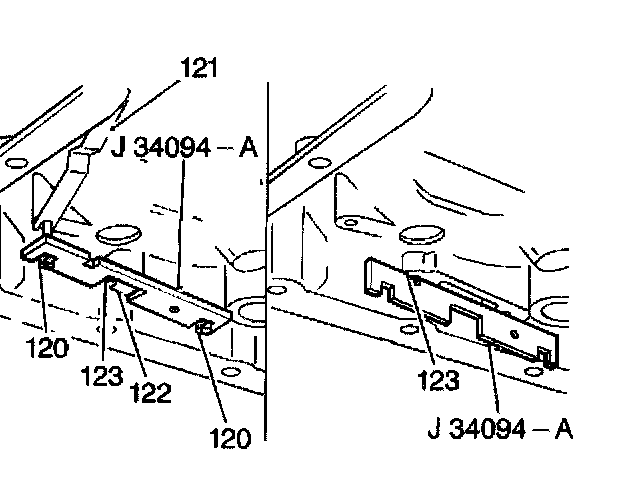

1. Use the J 34094-A to set the middle thermo pin (123).
2. Install the new thermo element plate (122).
3. Install the pin (120) and the washer.
4. Use the J 34094-A to set the height of the pin and the washer furthest from the accumulator.
5. Use the J 34094-A to set the height of the second pin (120) and the washer.
6. Install the thermo element (121) between the two pins (120). The V in the thermo element (121) must contact the thermo element plate (122).
7. Install the oil pan.
8. Lower the vehicle.
