Transmission Temperature Sensor/Switch, A/T

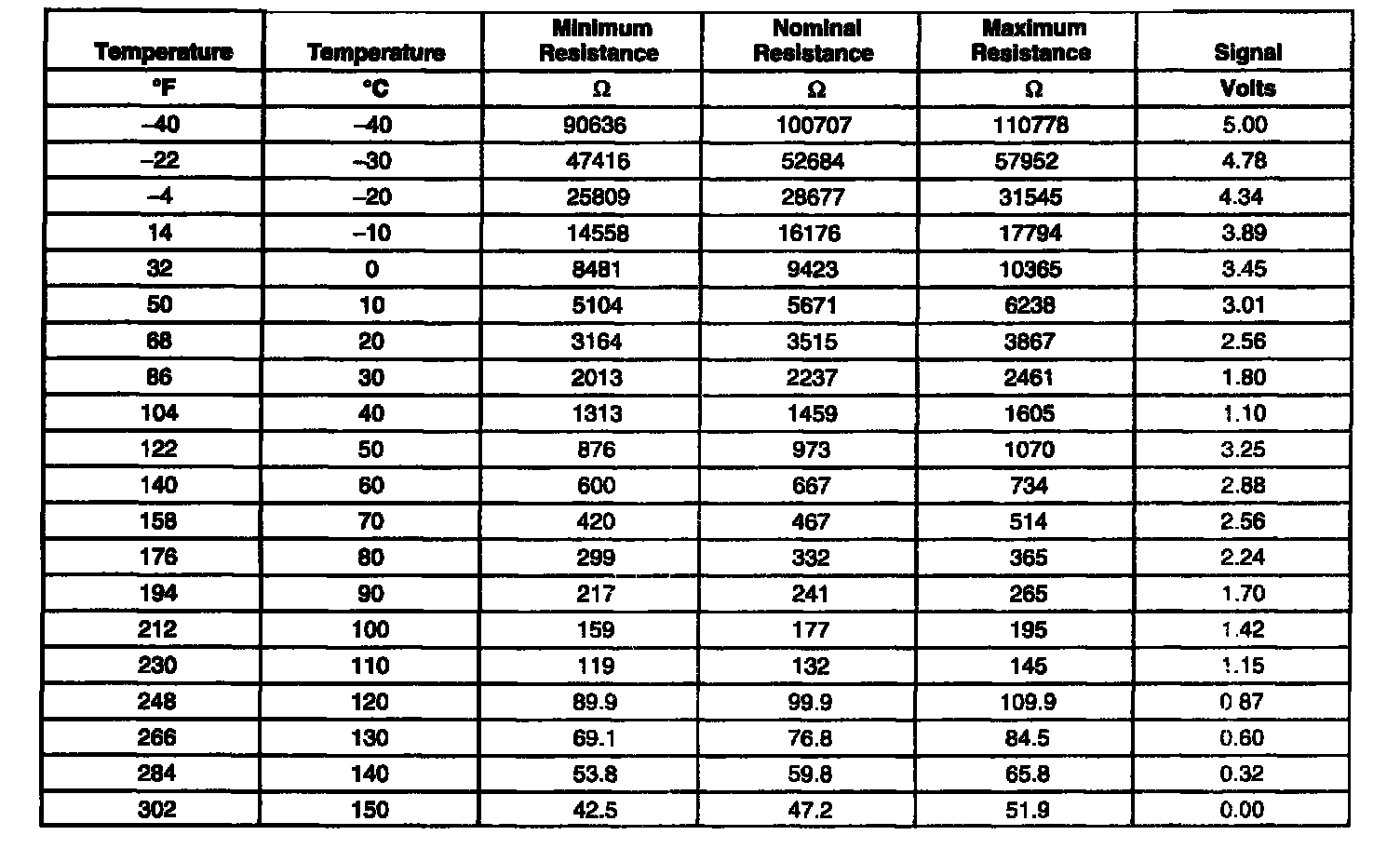

Transmission Fluid Temperature (TFT) Sensor Specifications:
